2+20 Pin M19 Molded Cable Connectors Industrial Waterproof Power Data Connector Made In China
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~6working days
Brand:
Ulinkcon
Product Description
15A+5A Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors
Product Overview
Waterproof Multi 2 Pin For Power Connectors M19 300V Push Locking 20 Pin Data Connector
Key Features
-

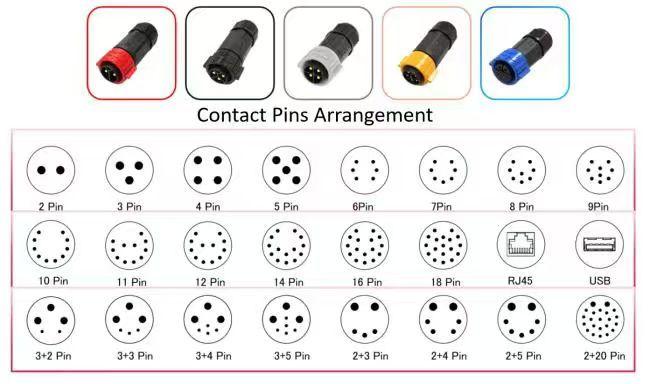

Specification: M19 standard, 2+20 pin separate design, meeting both power supply and data transmission needs
-
Protection: Industrial-grade waterproof, resistant to outdoor rain, dust and oil, suitable for harsh industrial environments
-
Structure: Molded integrated forming, stronger sealing, not easy to fall off, improving connection reliability
-
Transmission: Separate transmission of power and data, stable signal without interference, safe and efficient power supply
-
Quality Assurance: Made in China, material is high and low temperature resistant, impact resistant, suitable for long-term stable industrial use
-
Application: Widely used in various industrial equipment to realize synchronous connection and transmission of power and data
Application Industries
Growth Lights Communications Equipment Product Coding Machines Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Equipment Heavy Machinery
Electrical Specifications
| Number of Poles | 22-pin waterproof connector |
|---|---|
| Current Rating | 20A maximum |
| Voltage Rating | 300VAC maximum |
| Durability Voltage | 1500VAC @ 60 seconds |
Technical Specifications
| Contact Resistance | 10 mΩ maximum |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C to +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Operation Parameters
| Voltage Rating | 600VAC maximum |
|---|---|
| Current Rating | 20A maximum |
| Minimum Wire Size OD | 3.0mm - 6.0mm |
| Maximum Wire Size OD | 8.0mm - 10.0mm |
| Maximum Cable Cross Section Area | 0.5mm² - 2.5mm² |
Product Design
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
How many materials can you provide?
We offer various materials for connectors and cables. Connectors typically use PVC/Nylon material, while cables use PVC/Rubber/Silicone material. We can also customize materials according to your requirements.
Do you support product customization?
Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
