M25 3 Pin 50A Wire To Board Power Connector IP67 Quick Lock Outdoor Waterproof Connector
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~6working days
Brand:
Ulinkcon
Product Description
M25 3 Pin Male Female 50A High Current Industrial Wire To Board Connector
Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector
Widely used in outdoor photovoltaic power systems, energy storage equipment, high-power outdoor lighting, industrial control devices, new energy outdoor equipment, security power supply systems and various high-current outdoor engineering connection scenarios.
Application Industries
- Communications Applications
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Quick Details of 3 Pin IP67 Waterproof Connector
-
50A High Current Capacity & Stable Power Supply: Equipped with 3-pin high-power terminals made of thickened high-purity copper, the connector features low internal resistance and low heat generation. It supports long-term stable 50A high-current transmission, avoiding poor contact, overheating and power failure for high-power equipment.
-
IP67 Waterproof & Dustproof for All-Weather Outdoor Use: Adopting multi-layer premium silicone sealing structure, it reaches IP67 waterproof and dustproof grade. It effectively blocks rainwater, dew, dust and moisture, ensuring stable performance in rainy, dusty and humid outdoor conditions and reducing equipment failure rates.
-
Quick Lock Design for Fast Installation & Anti-loosening: The user-friendly quick-lock structure enables fast plug-and-lock installation without complicated tools. It provides tight biting and excellent vibration resistance, preventing loosening and falling off during equipment operation and outdoor vibration.
-
Flame Retardant & Super Weather Resistance: The high-strength engineering plastic housing features UL94 V0 flame retardant rating, excellent UV resistance, high & low temperature resistance, salt spray resistance and anti-corrosion performance, adapting to various global harsh outdoor climates and extending service life.
-
Professional Wire-to-Board Structure & Wide Compatibility: Standard wire-to-board design ensures precise matching between cables and PCB boards. It supports neat wiring, easy mass assembly and convenient maintenance, perfect for industrial automation, outdoor power systems and engineering supporting projects.
Technical Parameters
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Operation Parameters
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max Cable Cross Section Area | 0.5mm² ~ 6.0mm² |

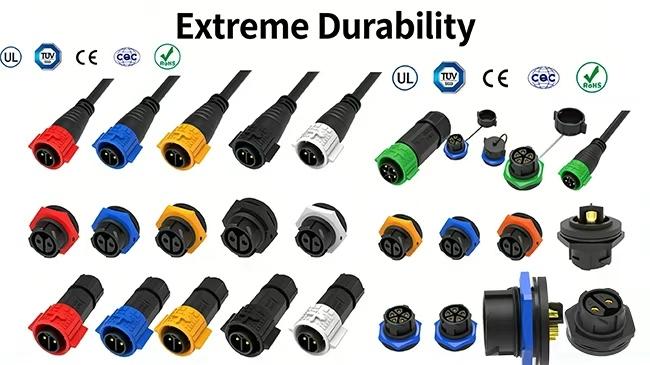

Product Images
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q: How can I get samples?
A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.
Q: Can I have custom label?
A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
