Product Description:

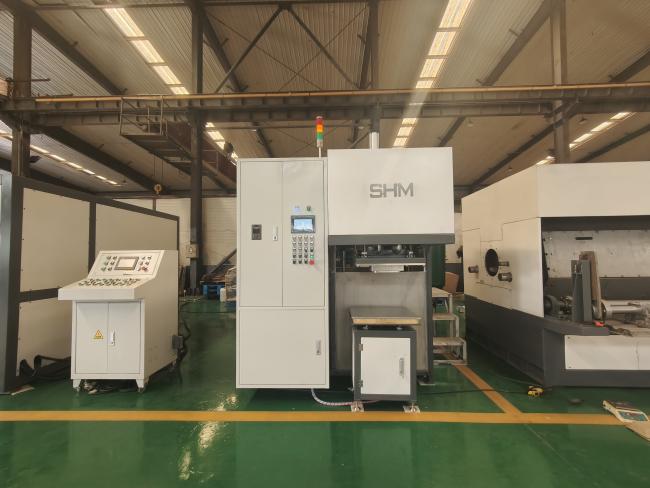

All-in-One Small Egg Tray Making Machine

Laboratory & Sample Molded Pulp Forming Solution

The All-in-One Small Egg Tray Making Machine is a compact, fully integrated pulp molding solution designed for laboratory testing, sample production, product development, and small-batch manufacturing of molded pulp products.

This machine integrates pulping, forming, and optional drying into one unit, requiring no large infrastructure, making it ideal for startups, R&D centers, packaging design companies, and customers who need frequent mold changes or product sampling.

What Is an Egg Tray Made From?

Egg trays are typically made from recycled paper-based fibers, including:

• Waste paper

• Old newspapers (ONP)

• Carton board / cardboard scrap

• Mixed office paper

These raw materials are processed into pulp through mechanical pulping, then molded into egg trays using vacuum forming molds.

Key advantages of molded pulp egg trays:

Biodegradable and recyclable
Shock-absorbing and protective
Lightweight and cost-effective
Suitable for food-contact packaging (with proper raw materials)

Egg Tray Introduction: Function and Specification
Main Functions of Egg Trays

Protect eggs during transportation and storage

Prevent collision and breakage

Allow air circulation to keep eggs fresh

Stackable for efficient logistics

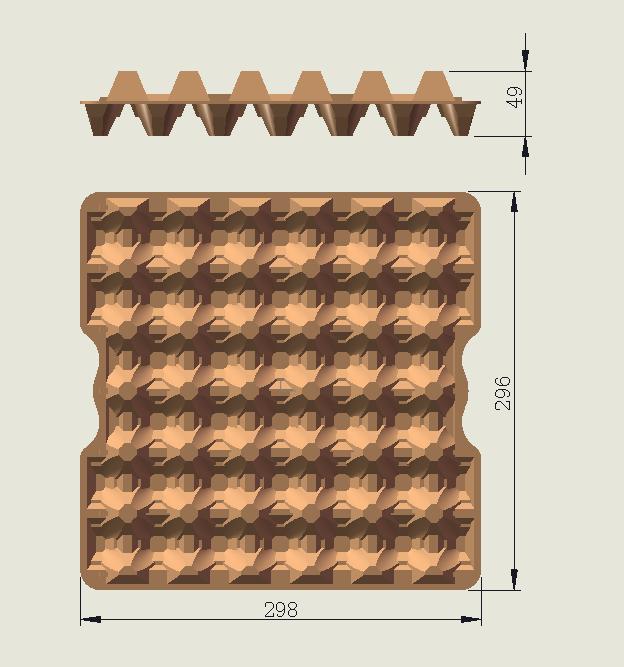

Common Egg Tray Specifications

6-cell, 10-cell, 12-cell, 18-cell, 30-cell designs

Custom shapes for quail eggs or special packaging

Mold changeable according to product design

The small egg tray machine supports custom mold development, making it suitable for different tray designs and sizes.

https://www.moldedpulp-machine.com/sale-54310977-all-in-one-paper-pulp-forming-machine-small-egg-tray-machine-small-molded-pulp-machine-lab-sample-ma.html

paper tray machine paper tray machine price
pulp molded tableware machine

Technical Specifications:

• Production Capacity: Approx. 7200–8640pcs/day (depending on tray type and operation time)

• Forming Method: Vacuum suction pulp molding

• Drying Method: Built-in electric heating or natural air drying

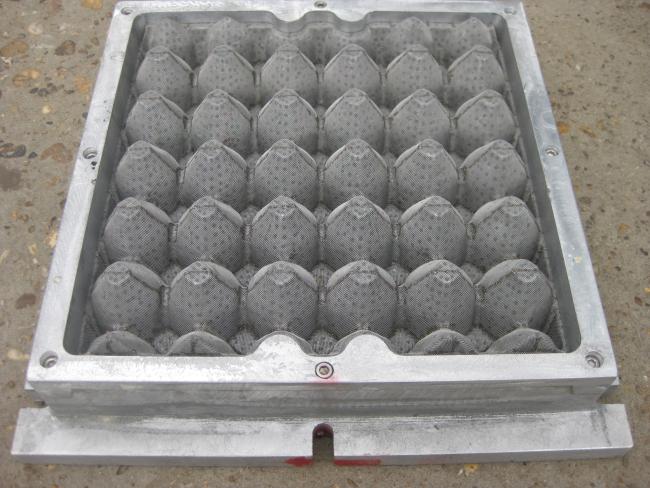

• Mold Material: Aluminum or resin molds

• Power Requirement: Single-phase or three-phase power available

• Machine Structure: Stainless steel and carbon steel combination

• Footprint: Compact design, suitable for laboratory or small workshops

Check video→   https://www.youtube.com/watch?v=DcKeGuqTIag

Optional Accessories of Small Capacity Egg Tray Making Machine
To enhance flexibility and performance, optional accessories are available:
Additional forming molds (egg trays, fruit trays, cup holders, industrial trays)
Automatic pulp feeding system
Mold quick-change system
Upgraded drying module
Mold cleaning device
PLC control upgrade

These options allow customers to expand machine functions as their project grows.

Key Features of Small Egg Tray Making Machine

• All-in-one integrated design

• Ideal for laboratory testing and product sampling

• No large infrastructure required

• Easy operation and quick mold change

• Low investment cost

• Energy-efficient and space-saving

• Suitable for startups and R&D purposes

Egg Tray Machine for Lab and R&D Typical Applications

• Egg tray sample production

• Mold testing before mass production

• New molded pulp product development

• Small-batch eco-friendly packaging manufacturing

• University and research institute laboratories

Support and Services:

One-stop solution — pulp preparation, forming, hot-pressing, drying.

Sample confirmation before shipment to ensure results meet expectations.

Long-term technical support & spare parts supply.

Professional consultation on fiber formulation and forming process.

Why Choose SHM Small Egg Tray Machine?

• Over 30 years of pulp molding technology experience

• In-house mold design and manufacturing

• Custom non-standard machine solutions available

• Global installation and support experience

• Reliable performance with scalable upgrade paths
