Customized White,Transparent ,And So On Aluminum Frame Outdoor Warehouse Shelter Storage Tent
Customized White,Transparent ,And So On Aluminum Frame Outdoor Warehouse Shelter Storage Tent
Description :
|
Main Frame Structure |
Clear-span Width: From 3m-70m, length is no limitMaterial: Hard pressed extruded aluminum alloy |
|
Cover material |
Density: 650g/sqm, 750g/sqm, 850g/sqmMaterial: double PVC-coated polyester textile, 100% waterproof |
|
Features: flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning |
|
|
Connector |
Strong hot-dip galvanized steel |
|
Sidewall |
PVC Wall, Glass Wall, ABS Wall, Sandwich Wall |
|
Wind Load |
80km/h - 120km/h |
|
Snow Load |
75kg/sqm (snow can't stay if use big degree roof pitch design) |
|
Temperature |
-30 Degree Celsius to +70 Degree Celsius |
|
Index |
|
|
Life Time |
Aluminum frame more than 15 Years. PVC fabric 5-10 years |
|
Interior space |
No pole inside, 100% available interior space |
|
Features |
Easy to be assembled and dismantled, movable |
Details:

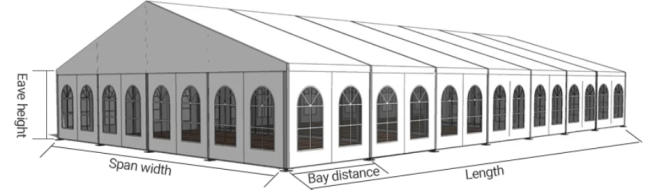

Dimension for A shape tent in small size
|
Model |
Span Width (meter) |
Bay Distance(meter) |
Eave Height (meter) |
Ridge Height (meter) |
|
XDP-TP03 |
3 |
3 |
2.6 |
3.2 |
|
XDP-TP04 |
4 |
3 |
2.7 |
3.4 |
|
XDP-PT05 |
5 |
3 |
2.7 |
3.6 |
|
XDP-PT06 |
6 |
3 |
2.7 |
3.8 |
|
XDP-PT08 |
8 |
3 |
2.7 |
4.2 |
|
XDP-PT09 |
9 |
3 |
2.7 |
4.4 |
|
XDP-PT10 |
10 |
3 |
2.7 |
4.6 |
Dimension for A shape tent in medium size
|
Model |
Span Width (meter) |
Bay Distance(meter) |
Eave Height (meter) |
Ridge Height (meter) |
|
XDP-TP12 |
12 |
5 |
3 |
4.8 |
|
XDP-TP15 |
15 |
5 |
3 |
5.7 |
|
XDP-PT18 |
18 |
5 |
3 |
6.2 |
|
XDP-PT20 |
20 |
5 |
3 |
7.2 |
|
XDP-PT22 |
22 |
5 |
3 |
7.6 |
Dimension for A shape tent in large size
|
Model |
Span Width (meter) |
Bay Distance(meter) |
Eave Height (meter) |
Ridge Height (meter) |
|
XDP-TP25 |
25 |
5 |
4 |
8 |
|
XDP-TP30 |
30 |
5 |
4 |
8.8 |
|
XDP-PT40 |
40 |
5 |
4 |
11 |
Why choose us?
1. The tent has a variety of uses, can be used for storage, industrial, events, sport areas...
2. According to the different functions of the tents, provided size, color and fittings customization
3. Providing customers with 3D design renderings
4. For customers who need to expand the old tent, the design scheme and renderings of the expansion can be provided
5. High quality tarpaulin dirt-proof, water-resistant and flame-resistant
6. Short delivery time
FAQ :
Q1:How can I calculate the tent size I need?
A1:You must first determine tent usage ,if the tent with tables and chairs in it,one person need 1.2 square meters,if the without table and chair,one person need 1 square meter.
Q2:Does WT Tent provide any help to install the tent?
A2:Yes,usually we will send Assembly Instructions to help you installation,if customer need our engineer come to their country to help install,that is also workable.
Q 3: How long of the production?
A3:Our normal production time is 10-15 days, which is based on the square of Marquee tent.If the actual tent will use more sandwich walls or glass walls, The customization time for these accessories materials takes 20-25 days, Urgent order production time can be specially arranged.
