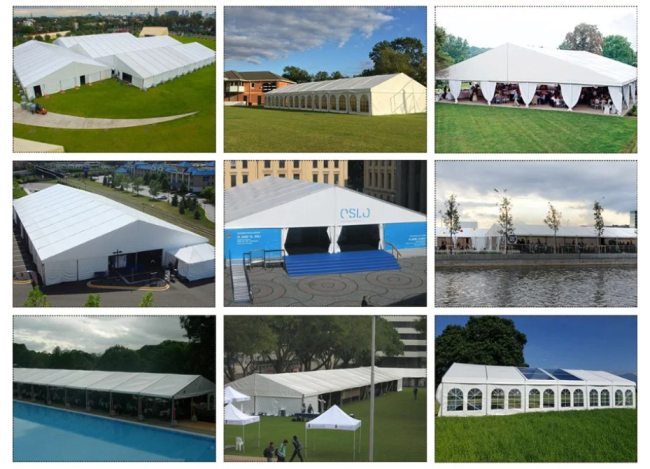

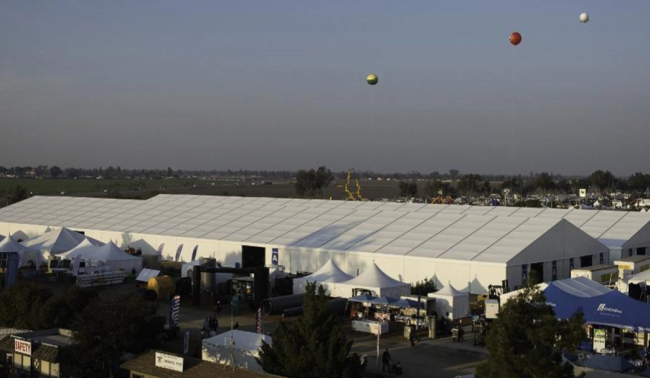

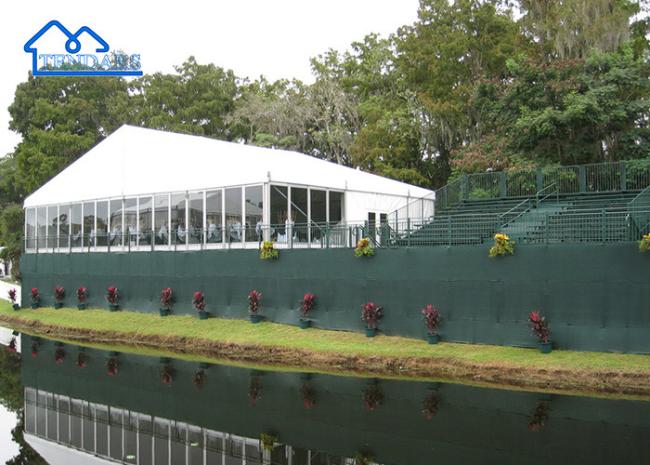

Item

Specification

Clear-span width

3m - 50m

Eave height

2.6m /3m/4m/5m/6m or customized

Ridge height

4.3 - 8m or customized

Roof pitch

20°

Longest component

3.7-10.6m

Minimum tent length

Can be customized

Roof fixing

Not limited

Main profile

84x48x3mm/ 122x68x3mm/ 166x88x3mm/ 203x112x4mm/ 204x112x4.5mm/ 256x120x5mm/ 300x125x5mm/ 350x126x6mm/ customized

Max.allowed wind speed

100km/hour ,0.5kn/

m³ or can be customized

Eave/Ridge connection

Hot-dip Galvanized steel insert

Materials

(1) Frame structure: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.

(2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV

resistant, tear resistant, self-cleaning ability, etc.

(3) Connector: Strong hot-DIP galvanized steel

Item

Span Width

Bay Distance

Eave Height

Ridge

Main Profile

Truss Frame-09-06

6m

3m

2.6m

3.6m

84*48*3mm

Truss Frame-09-08

8m

3m

2.6m

4m

84*48*3mm

Truss Frame-09-10

10m

3m

2.6m

4.4m

84*48*3mm

Truss Frame-09-12

12m

5m

3m

5m

122*68*3mm

Truss Frame-09-15

15m

5m

3m

5.7m

166*88*3mm

Truss Frame-09-18

18m

5m

3-4m

7.2m

203*110*4.5mm

Truss Frame-09-20

20m

5m

4m

7.4m

203*110*4.5mm

Truss Frame-09-25

25m

5m

4m

8m

203*110*4.5mm

Truss Frame-09-30

30m

5m

4m

8.8m

254*120*5mm

Truss Frame-09-40

40m

5m

4m

10.3m

300*125*6mm

Truss Frame-09-50

50m

5m

4m

12m

400*120*6mm
