Factory Price Industrial Outside Storage Tent For Warehouse Aluminum Curve Tent
Factory Price Industrial Outside Storage Tent For Warehouse Aluminum Curve Tent For Sale
Description :
| Frame | 4 channels, hard pressed extruded aluminium alloy 6061/T6. |
| (Surface anodized finish. Anti rust.) | |
| Roof Cover | Opaque(or transparent), water proof, 850g/m². Flame retardant.PVC-coated |
| comply to DIN 4102 B1( European standard ) | |
| Side Wall | 1)650g/m² PVC-coated Polyester |
| 2)glass wall | |
| 3) ABS wall | |
| comply to DIN 4102 B1( European standard ) | |
| Wind Resistance | 80~140km/h |
| Snow Load | 25kg/sqm |

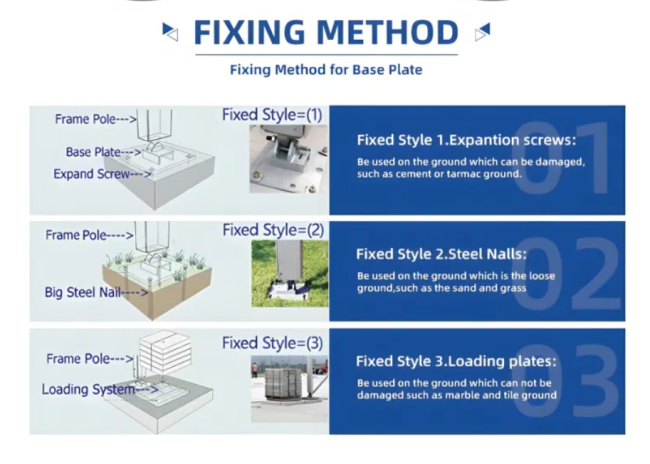

| Fixing Solution | Ground anchor, expandable bolt, weight plate, etc. |
| Applicable temperature range | -30 degree Celsius ~ +70 degree Celsius |
|
Width(M) |
Eave Height(M) |
Ridge Height(M) |
Bay Distance(M) |
Main Profile |
|
10 |
4 |
5.6 |
5 |
120x68x3mm(4-channel) |
|
12 |
4 |
5.92 |
5 |
120x68x3mm(4-channel) |
|
15 |
4 |
6.4 |
5 |
166x88x3mm(4-channel) |
|
18 |
4 |
6.88 |
5 |
203x110x4.5mm(4-channel) |
|
20 |
4 |
7.2 |
5 |
203x110x4.5mm(4-channel) |
|
21 |
4 |
7.36 |
5 |
203x110x4.5mm(4-channel) |
|
25 |
4 |
8 |
5 |
203x110x4.5mm(4-channel) |
|
30 |
4 |
8.8 |
5 |
254x120x5mm(4-channel) |
|
40 |
4 |
10.4 |
5 |
300x125x6mm(4-channel) |
|
50 |
4 |
12 |
5 |
300x125x6mm(4-channel) |
Details:
Safe Packing are available
1. All Aluminum Packed in Clear or White PE film. (Free)
2. PVC roof or Walls Packed in PVC Bags (Free)
3. Steel Parts Packed in Cage (Cage cost is Extra)
4. Glass door Packed in Trolley (Trolley cost is Extra)
FAQ :
Q: Can you print our logos on the tent?
Yes. Our factory supports customized services. Customized logos can be printed on the tent fabric according to your requirements.
Q: Is that factory price?
Yes. We assure you all prices are based on factory.
Q: Does your tents be able to installed repeatedly? What is the life span?
Our tents can be assembled and dismantled easily and repeatedly with small transportation size. The life span of aluminium
strucutre can reach 15-20 years, and 5-8 years for PVC fabrics, depending on different conditions of usage.
Q: What documents are available for order?
A full range documents including structural drawings, packing list, installation manual and relative certificates can be
provided. Moreover, customs declaration is provided. We provide one-stop service for you.
