Outdoor Large Waterproof PVDF Membrane Tensile Tent With Steel Structure Shade

Price Negotiable
Price: Reconsideration
MOQ: 25 square meters
Delivery Time: 18days or To be negotiated
Brand: Tendars
Product Description

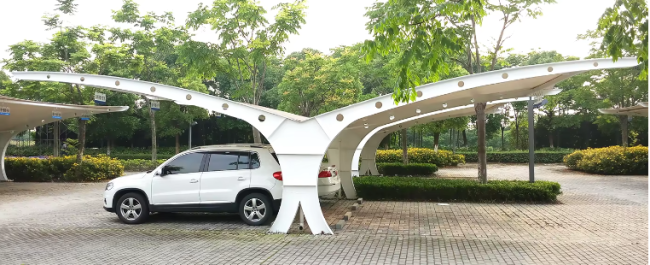

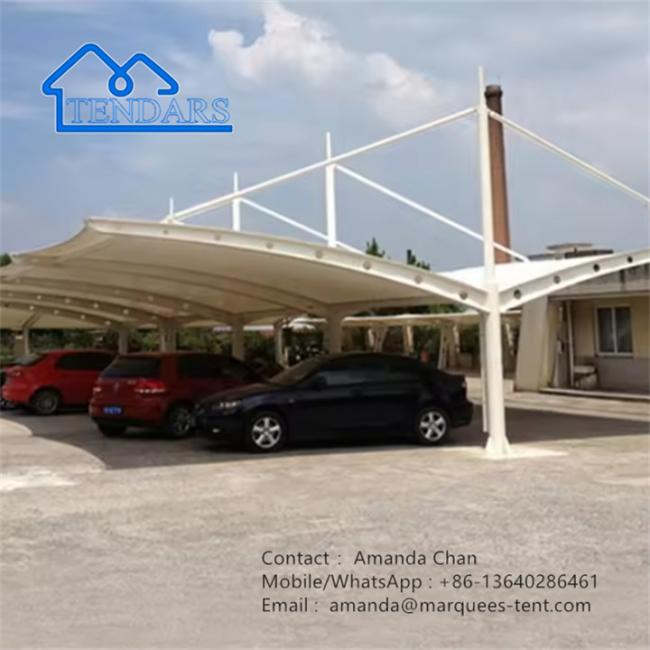

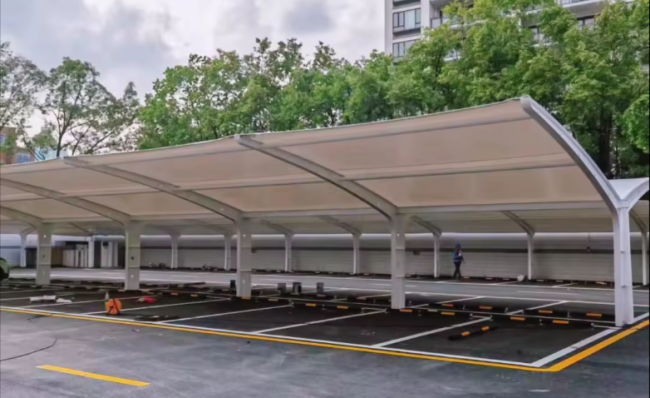

Outdoor Large Waterproof PVDF Membrane Tensile Tent With Steel Structure Shade







Select material



The membranes are selected to meet the specific project requirements as well as our clients’ individual needs and desires. We offer a variety of materials with varying degrees of translucency, light reflectivity, UV and weather protection, and non-combustibility. Certain membranes offer self-cleaning surfaces, and all are easily maintained to preserve their appearance and ensure a long life. We use the best materials on the market, including vinyl coated polyester (PVC), TEFLON™-coated fiberglass (PTFE), and transparent structural clear foil (ETFE).






Product Description:





Membrane tensile roof structures projects fabrication PVDF.

Membrane Structure is known as the Tensioned Membrane Structure, which is the most representative and promising architectural in the 21st century. Breaking the pattern of pure linear architectural style, with its unique beautiful surface shape, the perfect combination of simplicity, brightness, rigidity and softness, strength and beauty, it gives a refreshing feeling and gives architects a greater Imagine and create space.
It has the following characteristics:
1.Excellent fire resisirance, high temperature resistance
2.High security
3.Good transmittance
4. Low energy consumption ,long lifespan



Item

PVDF

PTFE

Base Fabric

Ultra-low shrinking high-strength polyester filament coating

Fiberglass cloth

Total Thickness

0.85+-0.02mm

0.80mm

Total Weight

1100g/m2

1300g/m2

Tensile Strength(w/f)

5500/5200 N/5cm

6000/5000 N/5cm

Tear Strength(w/f)

600/550N

400/350N

Threshold Temperature

(-40℃)-(+70℃)

(-70℃)-(+250℃)

Translucency

6-8%

12-14%

Flame Retadacy

B1

A





Packaging Details


Packaging Details: A. All the galvanized steels are nude packing.
B. All the electrical machines are put in carton.
C. All the accessories are put in bags.
D.All the materials are put in containers.
We can also offer packaging as your requirement.
Port:any ports of china





FQA:



Q:Why do I need to know the use of tents and local climate?
To know the use of tent and local weather, I can provide you with advice better,and it is very useful for our designer's work.



Q:Can I put my logo on the tent?
Sure,We accept all the customized service.



Q:Whether your tent can be convenient to install and remove?
Our tent is very convenient to install and remove, and it could be flexible to use in a variety of occasions.



Q:Do your tent is safe and solid?
YES,Our tents can resist wind 100KM/H,Absolutely safe and reliable.



Q:Do your products have certifications?
Our tent product has passed the engineering tests and have SGS certificates, Including low temperature bending resistance certification, Scarlett 650g anti-UV4-5 certified, UV-resistant and certified mold proofing antibacterial, flame retardant certification 650gsm-B1, 850gsm-M2 flame retardant certification.
