low price air shower with rolling door for clean room
Price:
$4,800.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HDF
Product Description

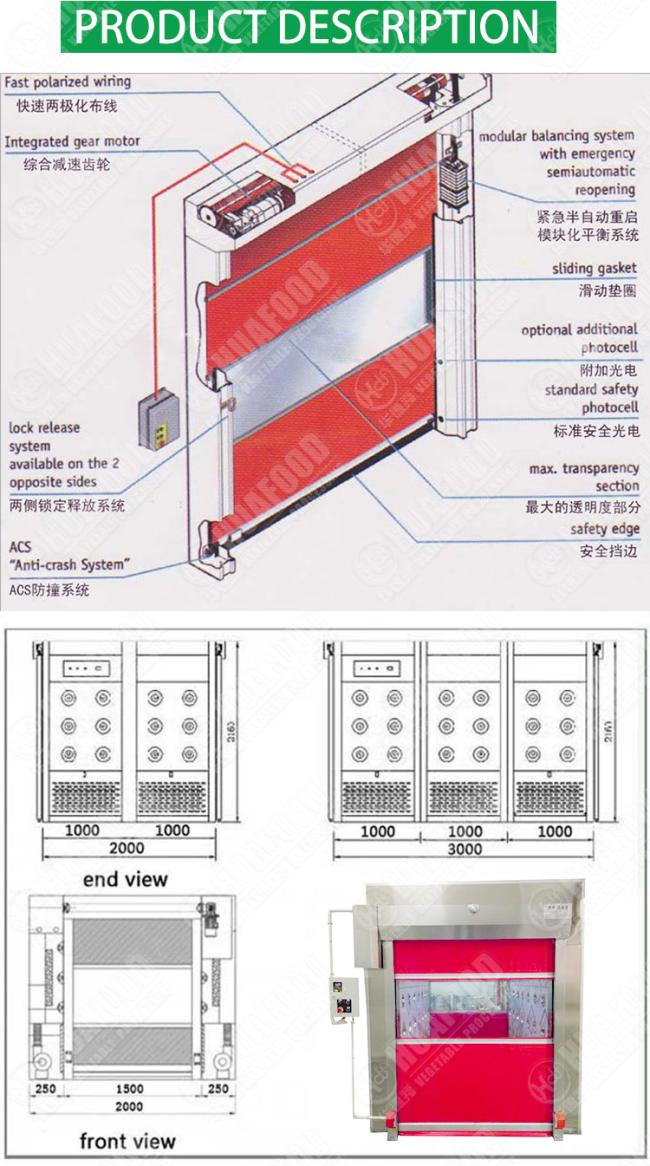

low price air shower with rolling door for clean room
Product Description
Product use: The quick shutter door of double-door interlocking shower room is specially used for clean purification workshop, which can prevent indoor and outdoor air from circulating mutually, remove dust on the surface of objects and avoid bringing pollution sources into clean workshops. The quick door is designed as a logistics channel with narrow space, and the built-in motor does not occupy the installation space, which meets the needs of special sites. The curtain is made of light fabric and aluminum wind-resistant ribs, which is fast in lifting, safe and reliable, and convenient in and out to prevent insects and dust.
Applicable environment: 1. access door and clean workshop 2. Light industry, food industry, electronics, medicine, warehousing, packaging, printing and chemical industry. 3. High frequency switching environment.
Appearance | high-strength oxidation-resistant aluminum alloy door frame 120x130mm, silvery white, conforming to 6063-T6 standard, cold-rolled steel plate electrostatic spraying door frame 140x 150rm, cold-rolled plate electrostatic spraying door cover | ||||
Dynamic performance | German SEW or Japanese AEW series brake motors, with power of 0.75-1.5KW, power supply of 220V/380Vand braking voltage of 220V | Transparent window | imported PVC transparent crystal soft board is 1.5mm thick, rectangular or oval | ||
Door curtain material | the surface coating thickness of imported high-density polyester fiber is 0.8mm-1.5mm, and the colors are various | Sealing performance | the U-shaped airbag cloth pocket at the bottom of the door curtain can be closely attached to the uneven ground, and both sides of the door frame are sealed with wool tops to prevent dust and insects. | ||
Control voltage | safe low voltage 24VDC | Opening speed | opening 0.8-1.5m/s closing 0.6-1.2m/ s (variable frequency adjustable speed). | ||
Fire protection level | German standard MZD/NBL is flame retardant | Operating temperature | -10 c+70 c/40°C in ultra-cold resistant area. | ||
Control system | imported microcomputer frequency conversion control box (Mitsubishi cpu). | Wind-resistant material | aluminum alloy wind-resistant ribs, connected in sections, easy to replace. | ||
Tensile strength | 5700/5100N/5cm, tear strength: 900/80N | Wind resistance | 9m/s (50Pa standard 3x3). | ||
Safety configuration | standard infrared photoelectric protection, pressure airbag, warning light, anti-collision column, power failure manual rocker. | ||||
Recommend Products
Why Choose Us
1.WHO IS HUAFOOD?
Henan Huafood Machinery Technology Co., Ltd. is a food machinery factory integrating production, Qualification of the company manufacturing and sales for 18 years. The company has passed the ISO9001 international certification, the main products have passed the CE certification, the products have reached more than 50 patents, with the right of self import and export. Our technique has been widely applied to produce the following products: Frying machine, vegetables and fruits cleaning machine,vegetable cutting machine, french fries/potato chips production line, seasoning and coating machine, drying equipment,pasteurization line, chicken feet production line, conveyor, hoist, vibrating screen, food packing machine and so on.
2. Our factory has Strictly control the source of raw materials, stable and reliable raw material supplier.
There are 201, 304 and 316 stainless steel materials on the market, we can provide all three. All metal materials included in our standard offer are 304 stainless steel（strong corrosion resistance (can contact acid, alkaline materials such as salt, kelp, tomatoes), not easy to rust.）
3. Our products have passed Multiple international certifications.
Packing & Delivery
Delivery Way | Delivery Time |
By air | About10-20 days days after leaving the port |
By sea | About20-30 days days after leaving the port |
Our Service
1.Convenient method of payment
2.Individual service
①Video that teaches customers how to operate the machines will be upload on Youtube. ②. OEM/ODM Available. ③.Any inquiries will be replied within 12 hours. ④.Fastest delivery: Sample order in stock and 3-7 days for mass production.
