SDK RGB Outdoor Waterproof LED Screen , Practical Outdoor Digital Advertising Board
RGB 3D LED Screen Outdoor Full Color LED Display Board Outdoor P4.81 P3.91
Description
| Pixel Pitch:: | 4.81MM | Brand: | WMSJ |
|---|---|---|---|
| Cabinet Size:: | 576x576mm | Brightness:: | ≥6500cd |
| Warranty:: | 1.5 Year | Module Size:: | 250mm*250mm |
| Pixel Density:: | 27777dots/m2 | Color: | RGB |
| LED Lamp: | 1921 | ||
| High Light: |
RGB 3D LED Screen Outdoor,3D LED Screen Outdoor P4.81,LED Display Board Outdoor P3.91 |
||
WMSJ P4.81 P3.91 P2.064 3D red green blue led screen full color led display board
Quick detail
1.Pixels:4.81mm
2.Color:full color 1R1G1B
3.Pixel density:43264dot/m2
4.Best viewing distance:4m～50m
Product detail
1.Low brightness and high gray performance: In the case of low brightness, the display grayscale is uniform and the display consistency is good.
2.It can ensure that high-definition cameras and cameras can capture high-definition delicate display images when shooting.
3.Quality assurance: It is more convenient to install and maintain by using domestic well-known brand luminescent materials and high-quality IC chips.
4.Tailored more suitable full-color LED electronic display solution.
5.It features a locking structure that makes splicing easy and convenient and can be installed without tools.
6.This display screen has various forms, which can be made into rectangle, square, arc, circle and other various design shapes.
7.This product can independently detect whether each LED is open without the addition of additional external components, and can eliminate the problems caused by crosses.
P4.81 PARAMETER
| MODULE | Iterm | parameter |
| Product model | P4.81-13S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixel density | 43264dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED type | SMD1921 | |
| IC | FM6353 | |
| Pixel resolution | 52dots(W)*52dots(H) | |
| Max Power consumpion | 60W | |
| Module weight | 1.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 scan | |
| LED cabinet | cabinet size | 500mm*1000mm |
| Module quantity | 8pcs | |
| Power supply | 5V/60A | |
| Pixel per cabinet | 104*208 | |
| Brightness of white balance | ≥5000cd/m2 | |
| Best viewing distance | 4M～50M | |
| The best perspective | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ work:-20℃～+50℃ |
|
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
|
power
|
Working voltage | AC220V±10% |
| Average Power | 400W/S | |
| Max.Power consumption | ≤800W/S | |
| Current | ≤20mA(single LED) | |
|
Control syste
|
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant currentdriver IC |
| Refresh frequency | ≥3840HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

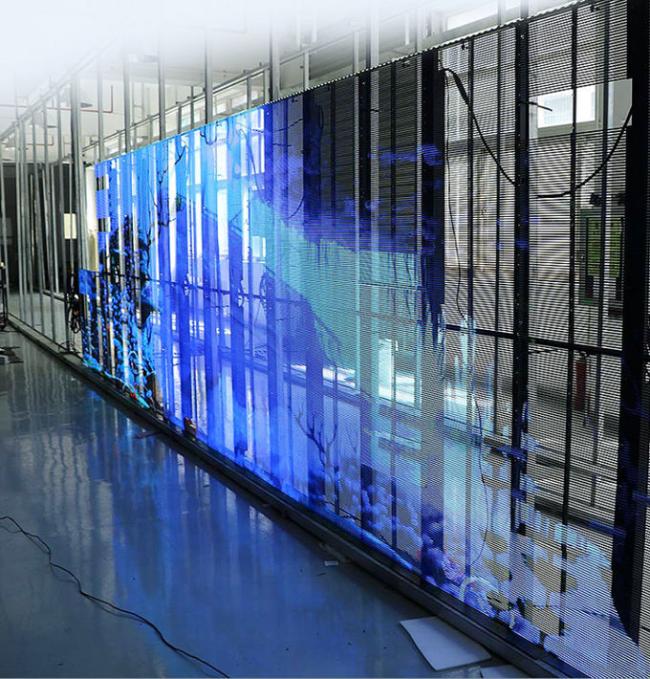

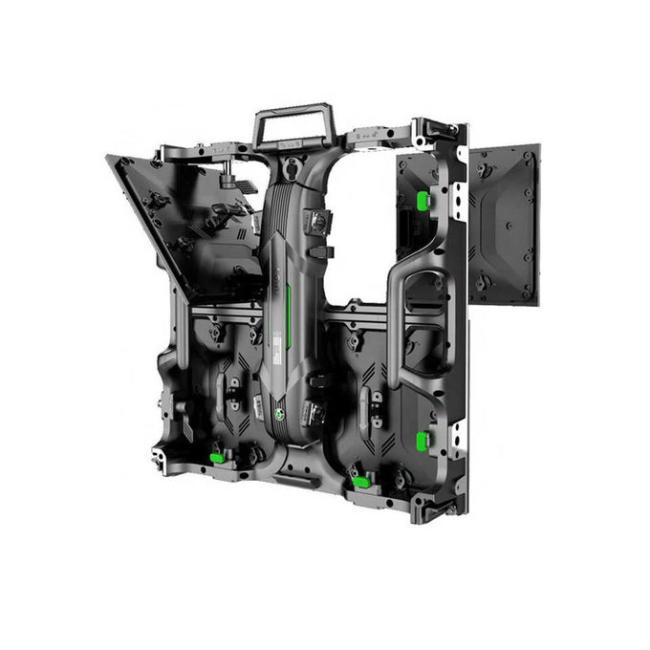

Product photo
FAQ
Q1.What is your after-sale service?
A:Normally we offer 1 year free warranty but whole life time technical support.After 1 year, components would be charged if any mulfunctions occur on the device.
Q2.Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
Q3.Are you a manufacturer or trading company?
A:We are a manufacturing and trading company, with its own independent production of products.
