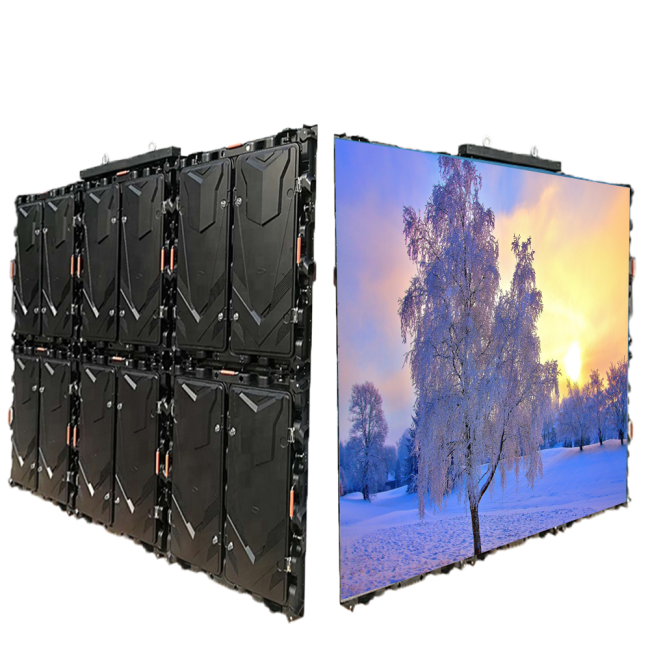

Fixed Outdoor LED Screens Digital Signage 320x320mm P6.67 P8 P10
Full Color Outdoor fixed Video Wall P6.67 P8 P10 320x320mm Led Display Digital Signage
Outdoor Fixed LED Screen description:
Front and rear access. Another front open panel cabinet for choose.
Inside of module have buckle design for adjusting gaps between module and cabinet,to ensure the connection become tighter and seamless.
Lighter sensor be added on the led display to adjust the bright according to environment Extremely guaranteed the longer lifespan and better visual effective for display.
| 320X320MM SERIES | |||||||||||||||
| Model | P6.67 | P8 | P10 | ||||||||||||
| Pixel Pitch(mm) | 6.67 | 8 | 10 | ||||||||||||
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | ||||||||||||
| LED Type | SMD2727 | SMD2727 | SMD2727 | ||||||||||||
| Pixel Density(dots/m²) | 22,477 | 15,625 | 10,000 | ||||||||||||
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | ||||||||||||
| Cabinet Resolution(dots) | 144x144 | 120x120 | 96x96 | ||||||||||||
| Module Size(mm) | 320x320 | 320x320 | 320x320 | ||||||||||||
| Module Resolution(dots) | 48x48 | 40x40 | 32x32 | ||||||||||||
| Cabinet Material | Iron / Aluminum | ||||||||||||||
| Cabinet Weight(kg) | around 35 kg/m² (Aluminum) | ||||||||||||||
| Brightness(cd/m²) | 6,000 | 6,000 | 6,000 | ||||||||||||
| Power Max./Avg.(W/m²) | 800/300 | 800/300 | 850/300 | ||||||||||||
| Refresh Rate(Hz) | 1920~3840 | ||||||||||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||||||||||
| Input Voltage | AC100~240V/50~60Hz | ||||||||||||||
| Working Temperature | -30℃~60℃ | ||||||||||||||
| Installation/Maintenance | Front / Rear | ||||||||||||||
| Life Span | 100,000 hours | ||||||||||||||
| Mtbf | ＞10,000 hours | ||||||||||||||
| Certification | CE ETL FCC RoHS | ||||||||||||||
Product Features:
- Better Waterproof Ability
- cabinet size double fan design, speed up internal air circulation, auxiliary heat make the screen more stable and reliable.
- Easy control and user-friendly software
- Seamless connection uniform color ,provide a unique visual experience with cool effects
- Fast & easy installation with our unique seamless splicing technology
Product advantages:
- Provide all LED display relative solution, like installation drawing etc.
- Provide free spare parts for future urgent need.
- Professional engineer in service after sales for any inquiry.
- Apexls has provided R&D and customization services to worldwide artists, designers, architects and system integrators for more than a decade
- 40+ R&D engineers & 60+ invention, industrial design and utility model patents
Application areas:
1. Urban centers
2. Outdoor buildings
3. Airports
4. Railway stations
5. Bus stations
6. High-speed railway stations
7. Road traffic
8. Large shopping malls
9. children's palace
10. Star hotels
We are based in Guangdong, China, start from 2009,sell to Domestic Market(90.00%),South America(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
