Manual Placement Vertical Irregular Product Shapes Packing Machine Castors /Craft Plastics/ Toys/Pins/Screwdrivers/Data Cables
Price:
$2,150.00/sets
MOQ:
1set
Delivery Time:
10-15 days
Brand:
XingKe
Product Description
Product Description
Equipment model | XK-B860 |
Counting method | manual placement |
Bag size | width 40-140 length less than 200 (conventional 140) |
Packing speed: | 1-60 bags/min |
Sealing shape | stripe, back seal/three side seal (usually back seal) |
Voltage power | 220V/50HZ P≈0.6KW |
Air supply | 0.4-0.8MPA |
Bag's both sides | figure cutter tooth shape |
Dimensions | length 8500mm/ width 800mm/ high 1550mm |
Weight | about 100KG |

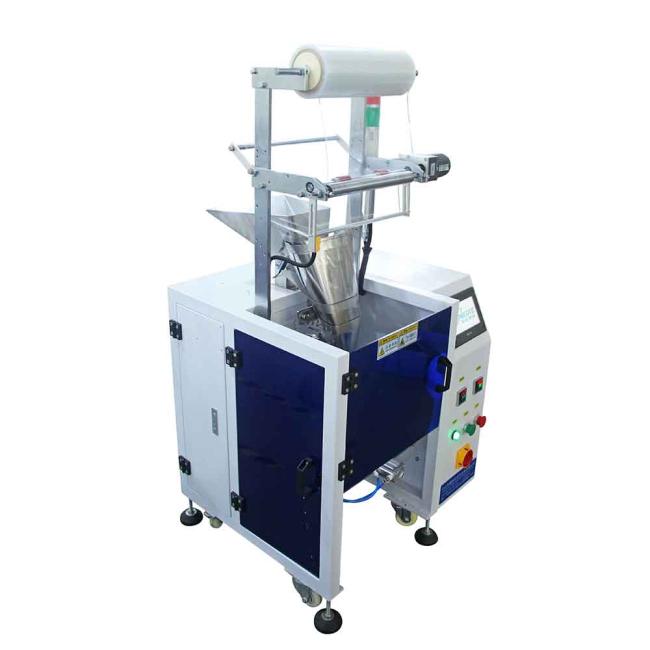

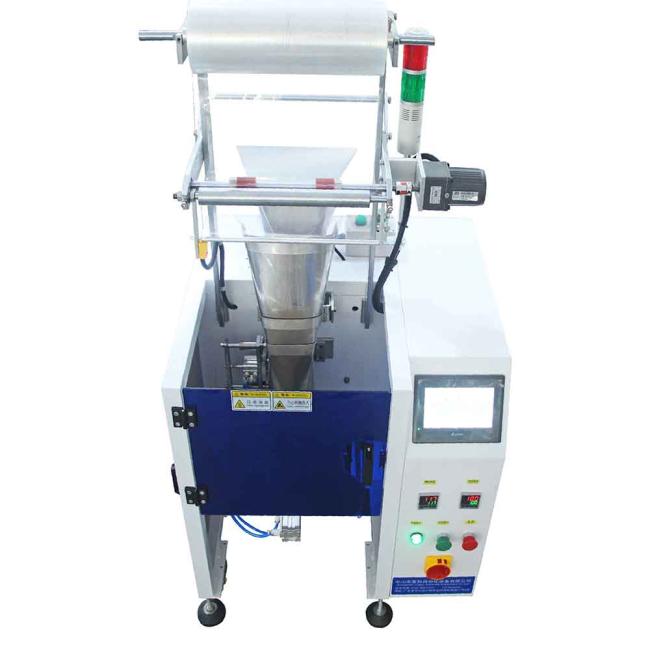

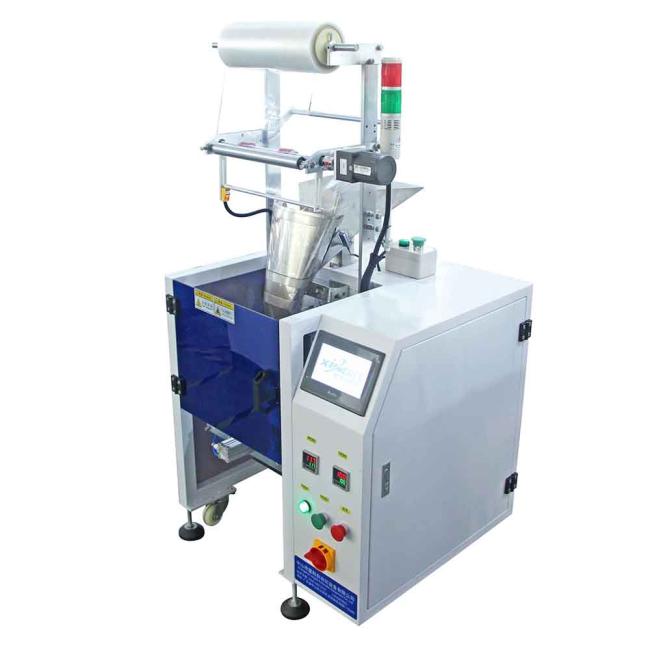

Xingke XK-B860 Automatic Manual Placement Packaging Machine
1) Technical characteristics 1. Automatic filling, automatic packing, sealing function, output count. 2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs 3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached. 4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment. 2)Scope of application and functional features 1. This product is applicable to the product shape is long and irregular, large aspect ratio, product, or on the surface requirement high after electroplating, spray paint, paint and other products, such as, after plating processing plastic products, toys, bolt, screw driver, cable, etc., using artificial delivery material, belt transmission material to molding machine, automatic filling packaging. 2. It is suitable for "OPP/CPP/ lamination film" as sealing material.
Packaging machines available
XK-B860P
Counting method: manual placement Bag size: width 40-140 length 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back sealing/three side sealing (conventional back sealing) Voltage power: 220V/50HZ P≈0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 850mm/ width 800mm/ height 1550mm Weight: about 100KG
XK-B861
Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions:length 1100mm / width 750mm/height 1550mm Weight: about 150KG
XK-B862
Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag mouth shape: figure cutter tooth shape Dimensions: length 1100mm/ width 1000mm/ height 1550mm Weight: about 180KG
XK-B863
Counting method: optical fiber counting/blocking and putting Bag size: width 40-140 length less than 200 (usually 140) Packing speed: 1-60 bags/min Sealing shape: stripe, back seal/three side seal (usually back seal) Voltage power: 220V/50HZ P≈ 0.6KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1420mm/ width 820mm/ height 1550mm Weight: about 250KG.
XK-B864
Product name: Four Vibrator Bowl Packaging Machine Counting method: optical fiber counting/blocking and putting Bag size: width 40-140, length less than 200 (conventional 140) Packing speed: 1-60 bags/min Sealing shape: four side seal Voltage power: 220V/50HZ P≈2KW Air supply: 0.4-0.8MPA Bag's both sides : figure cutter tooth shape Dimensions: length 1450mm/ width 980mm/ height 1700mm Weight: about 400KG
XK-B865
Counting mode:optical fiber counting/stopping and discharging Bag size:width 40-140 length less than 200 (conventional 140) Packing speed:1-60 packs/min Sealing shape:stripe, back seal/three side seal (usually back seal) Voltage power:220V/50Hz P≈2KW Air source requirement:0.4-0.8Mpa Bag mouth shape:pattern knife tooth shape Dimensions: length 1350mm/ width 1500mm/ height 1550mm Weight:about 350KG
