Multi-station Automatic Package machine Screw Plane Hardware Fastener Packing Equipment
Price:
$15,000.00/sets >=1 sets
MOQ:
1set
Delivery Time:
10-15 days
Brand:
xingke
Product Description
Product Description

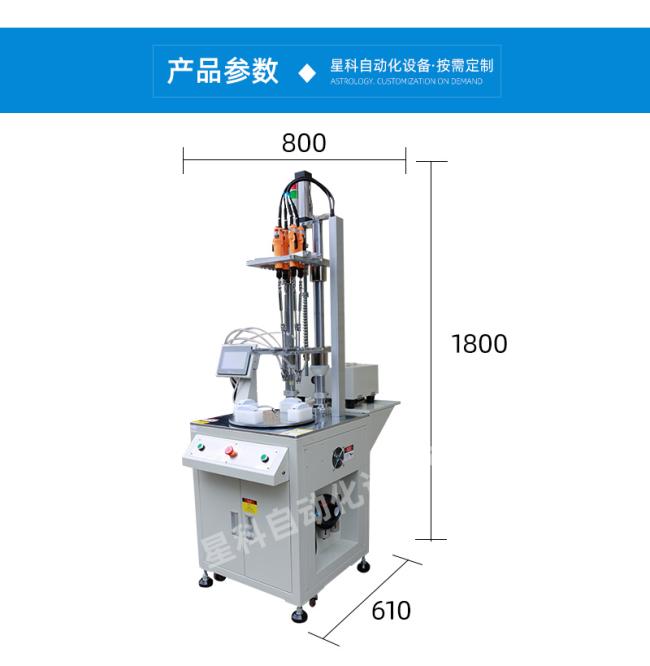

Equipment model: XK-L804 station quantity: 4 station or custom multi-station. Working format: 300MM*300MM running speed: 0-1000MM/S. Repetition accuracy: ±0.02MM voltage power: 220V/50HZ P ≈ 500W. Gas source requirements: 0.4-0.8 Mpa. Dimensions: 800 mm/ long, 610 mm/ wide, 1800 mm high, weight: about 180 kg
Number of stations | 4 stations, or customized according to demand |
Minimum locking hole distance | 12MM |
Maximum speed per axis (X/Y/Z) | Color liquid crystal display screen1000/1000/800（MM/S） |
Show editing mode | Check weight said |
Test item | Missed hit, missing material, sliding teeth, floating lock |
Repetitive precision | ±0.2MM |

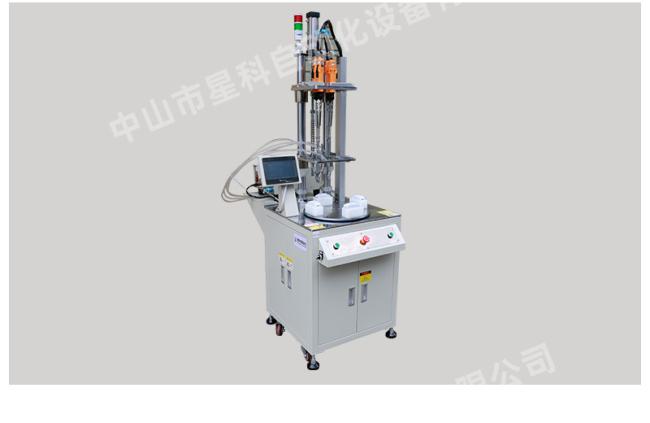

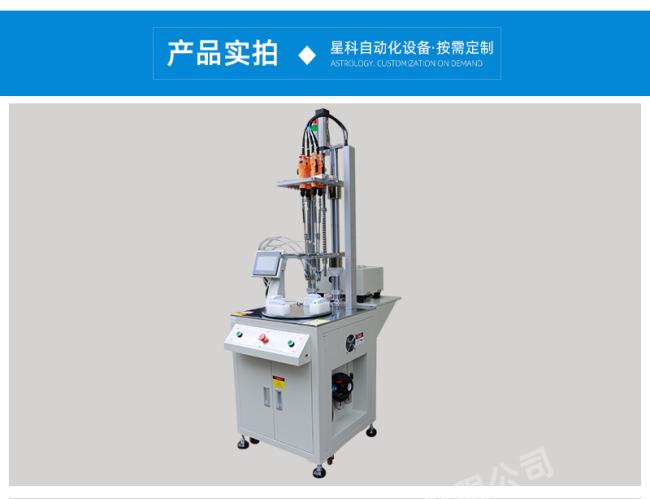

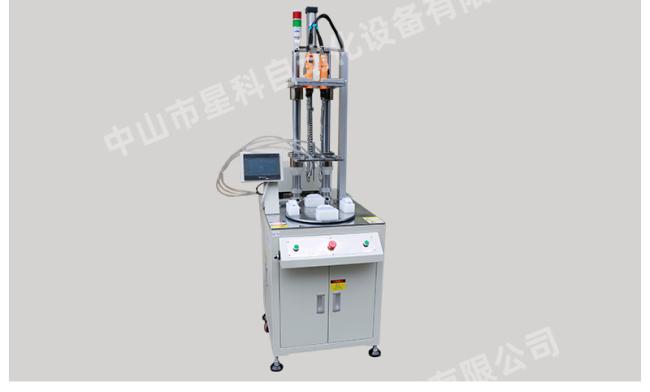

XK-L804 (multi-head screw machine).
1) Technical characteristics. Instead of the traditional manual tightening screws, screws are arranged automatically, fed, locked and counted automatically. 2, suitable for a variety of screws, batch torque can be adjusted as needed to ensure locking quality, fast and stable. Support cycle processing, single processing, automatic processing, single-step processing, etc., can very intuitively display the processing graphics, display the shape of the graphics in the processing file. 4. It has intelligent detection function, which can detect leaking lock, floating lock, sliding tooth and alarm prompt. 5. The equipment has the advantages of compact structure, low noise and convenient production. Thank you.

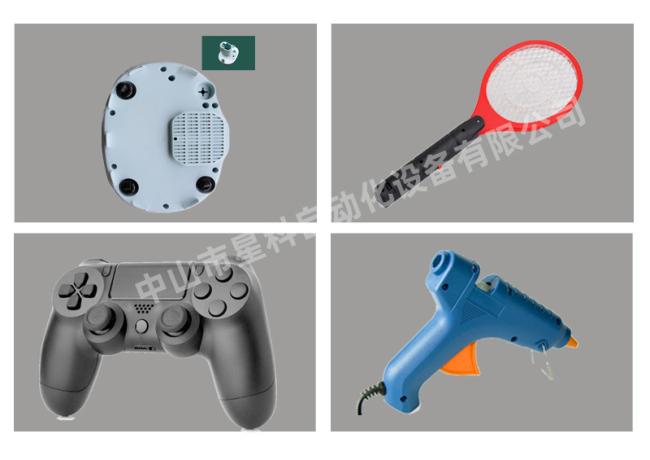

2) scope of application and functional features. Hardware industry, electronics industry, lighting industry, standard parts industry, auto parts industry and so on. Suitable for all kinds of stainless steel, galvanized, iron, copper, plastic and other screws. 3. Suitable for cross head, one word head, inner hexagonal head, H head, etc. 4. Screw size range: M1murM5, length ≤ 19.
