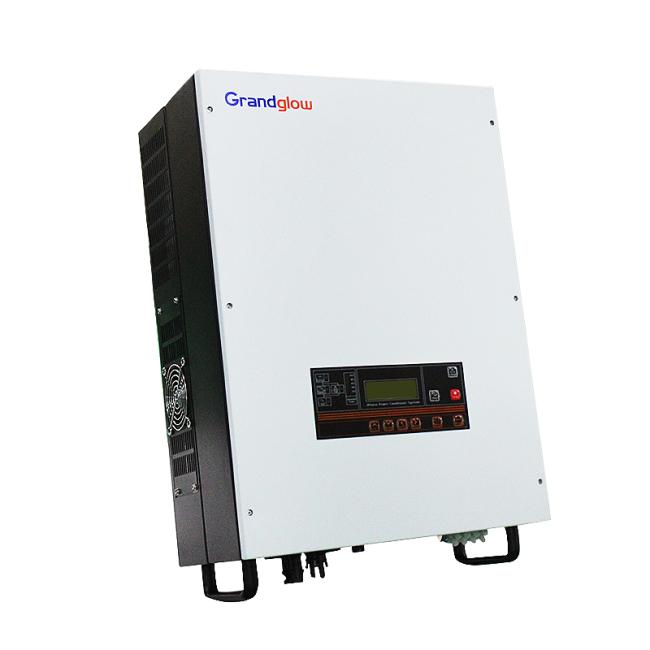

GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM
GRANDGLOW 10000 WATTS 3 PHASE 220V 230V 380V 400VAC ON GRID TIE INVERTER FOR SOLAR POWER SYSTEM
INPUT VOLTAGE: 850VDC MAX
OUTPUT VOLTAGE: 380VAC/400VAC CAN DO ACCORDING TO DIFFERENT COUNTRIES AND REGIONS
FREQUENCY: 50 / 60HZ
PV PANEL: 250W *120pcs
MPPT TRACK WAYS: 1
MPPT EFFECTION RATE: 99.90%
PROTECTION CLASS: IP65
TURN ON/ TURN OFF VOLTAGE: 200/300VDC
SPECIFICATION
| DC Input | |
| Maximum DC Input Power | 10500W |
| Maximum DC Input Voltage | 850VDC |
| Maximum DC Input Current | 30A |
| MPPT Tracking Number/ | 1 |
| MPPT Tracking Voltage Range | 200-820VDC |
| Power Off/On Voltage | 200/300VDC |
| AC Output | |
| Rated Power | 10000W |
| Voltage Range | AC 400V(360-440V) |
| Rated Voltage Range | 400VAC |
| Frequency | 50Hz / 60Hz |
| Phase number | Three Phase |
| Power Factor | 0.99 |
| Max Output Current | 15A |
| Current THD | At Rated Power And In The Sine Wave<5% |
| Max Efficiency | 98% |
| Europe Efficiency | 97% |
| MPPT Efficiency | 99.5% |
| Structure | |
| Protection Degree | IP65 |
| Cooling Method | Intelligent air cooling |
| Noise | <50dB |
| Data Interfaces | RS 485/ RS 232/ (Standard), WiFi Modular(Optional) |
| Isolation type | Non-isolated |
| Standby Power Consumption | 0W |
| LCD Display | LCD |
| DC Switch | Integration |
| Protection | |
| Support | DC Input Switch, Anti-island, Output Over-current, Input Reverse Connection, |
| RCD Testing | Support |
| Protection (Inverter) | Input Overvoltage, Output Short Circuit, Overload, Overheat |
| Protection (Grid) | Anti-islanding(IEEE1547), over/under voltage of grid, over/under frequency of grid. |
| General Parameters | |
| Input Terminal | MC4 |
| Output Terminal | Connect Terminals |
| Topology | No Transformer |
| Warranty | 5 Years Warranty, Can Be Extended to 10 years |
| State Grid Function | Yes |
| AC Switch | Integration |
| Operation temperature Range | Air Flow, -20 ℃ ~50 ℃ |
| Storage temperature | -25 ℃ ~ 60 ℃ |
| Relative humidity | 0~95% |
| Environment | No Corrosion Gas, Flammable Gas, Gas Fumes and Dust Etc |
| Altitude | 6600 Feet 2000m, Max. 3000m |
| Size | 440x610x260mm |
| Weight | 42kgs |
WORKING DIAGRAM
