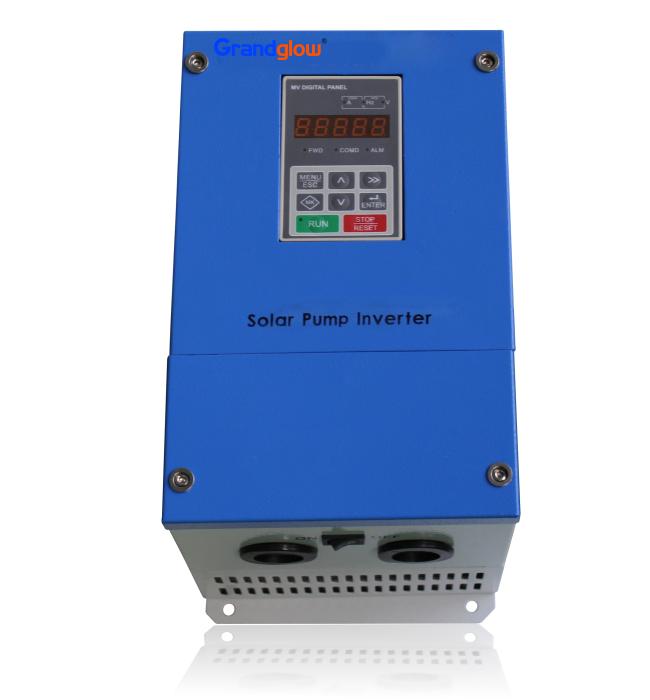

7.5KW Solar Water Pump Inverter Three Phase MPPT 380 - 440V Inverter

Name: 7.5KW Solar Water Pump Inverter Three Phase MPPT 380 - 440V Inverter
Brand: Shanghai Hongzhu Power Supply Technology Co., Ltd.

Price Negotiable

Price: $360.00 - $450.00/pieces

MOQ: 3 pieces

Delivery Time: Negotiable

Brand: GRANDGLOW

Product Description

Three phase 380-440v inverter MPPT controller 7.5kW solar water pump inverter

10HP THREE PHASE 380-440VAC MPPT 7.5KW SOLAR PUMP VFD INVERTER

ITEM NAME: INVERTER, PUMP INVERTER, SOLAR PUMP INVERTER, MPPT SOLAR PUMP INVERTER

OUTPUT VOLTAGE: 380-440VAC

FREQUENCY: 0-50 HZ

PUMP TYPE: 7.5KW


SPECIFICATION

* Self-developed true MPPT technology to effectively increase the utilization of PV arrays
* The system runs automatically and does not need to be on duty, saving a lot of manpower
* Modular system design, fully digital control, automatic operation, data storage and complete protection functions
* LCD/LED display,can set and view various operating parameters
* Pumps for three-phase asynchronous motors, such as submersible pumps, surface pumps, swimming pool pumps, etc.
* Multiple operating modes and MPPT control(options)
* Optional upper and lower water level detection and control circuit
* With lightning protection, overvoltage, undervoltage, overcurrent, overload protection

Model No.	Rated Power	Rated Voltage	Max. PV	Max. DC	MPPT	Reted output	Frequency
			Input Power	Input Voltate	Voltage	Current

GS0.75KWPB	0.75KW	380-440VAC	1KW	800VDC	500-600V	2.5A	0-50Hz
GS1.5KWPB	1.5KW	380-440VAC	2KW	800VDC	500-600V	3.7A	0-50Hz
GS2.2KWPB	2.2KW	380-440VAC	3KW	800VDC	500-600V	5A	0-50Hz
GS4KWPB	4KW	380-440VAC	5KW	800VDC	500-600V	9A	0-50Hz
GS5.5KWPB	5.5KW	380-440VAC	8KW	800VDC	500-600V	14A	0-50Hz
GS7.5KWPB	7.5KW	380-440VAC	10KW	800VDC	500-600V	17A	0-50Hz
GS11KWPB	11KW	380-440VAC	15KW	800VDC	500-600V	25A	0-50Hz
GS15KWPB	15KW	380-440VAC	21KW	800VDC	500-600V	32A	0-50Hz
GS18KWPB	18KW	380-440VAC	25KW	800VDC	500-600V	38A	0-50Hz
GS22KWPB	22KW	380-440VAC	31KW	800VDC	500-600V	45A	0-50Hz
GS30KWPB	30KW	380-440VAC	42KW	800VDC	500-600V	60A	0-50Hz
GS37KWPB	37KW	380-440VAC	52KW	800VDC	500-600V	75A	0-50Hz
GS45KWPB	45KW	380-440VAC	63KW	800VDC	500-600V	92A	0-50Hz
GS55KWPB	55KW	380-440VAC	77KW	800VDC	500-600V	115A	0-50Hz
GS75KWPB	75KW	380-440VAC	105KW	800VDC	500-600V	150A	0-50Hz
GS90KWPB	90KW	380-440VAC	126KW	800VDC	500-600V	180A	0-50Hz
GS110KWPB	110KW	380-440VAC	154KW	800VDC	500-600V	215A	0-50Hz
GS132KWPB	132KW	380-440VAC	185KW	800VDC	500-600V	260A	0-50Hz
GS160KWPB	160KW	380-440VAC	224KW	800VDC	500-600V	305A	0-50Hz
GS185KWPB	185KW	380-440VAC	259KW	800VDC	500-600V	340A	0-50Hz
GS200KWPB	200KW	380-440VAC	280KW	800VDC	500-600V	380A	0-50Hz
