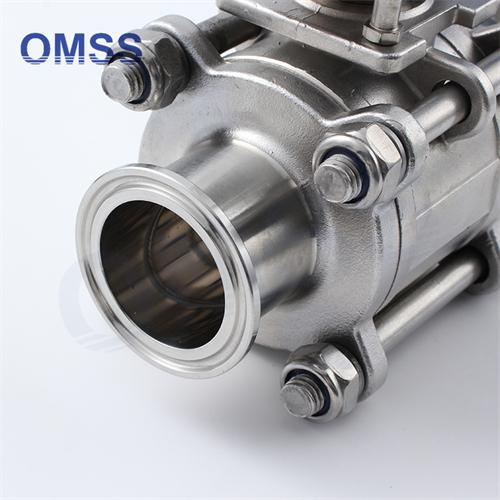

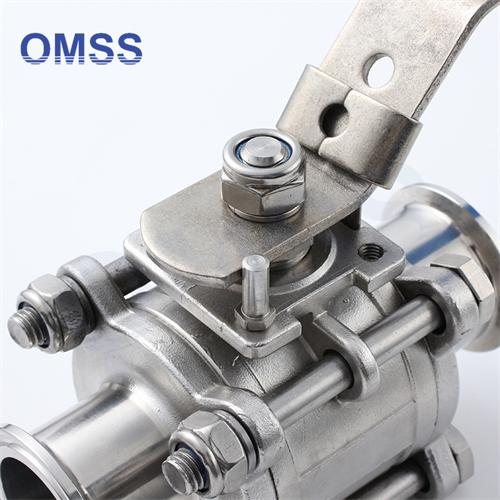

Tri Clamp Ball Valve 3A 1" Sanitary 3PC Non Retention Manual Motorized With High Platform
3A 1"Stainless Steel Sanitary 3PC Non Retention Clamp Manual motorized Ball Valve With High Platform
|
Product Name: |
3A 1" Stainless Steel Sanitary 3PC Non Retention Clamp Manual motorized Ball Valve With High Platform |
|
Application : |
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries |
|
Operating principles |
Driven by the actuator stem 90° rotation,drive the precise manufacturing ball body which with through cavity,turn on or off,so that can control the medium flow |
|
Technical Standards |
Request non-retention |
|
Designed and manufactured according to GB/T12237-2007 standard requirements |
|
|
Length of the structure according to GB/T12221-2005 standard requirements |
|
|
Connection clamp,welding by DIN,ISO |
|
|
Temperature and pressure level according to GB.T 12224-2005 standard requirements |
|
|
Inspection and test according to GB/T 26480 standard requirements |
|
|
Application scope: |
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health Materials engineering and many other industries |
|
Technical Data |
Maximum product pressure:1600kpa(16bar) |
|
Minimum product pressure:full vacuum |
|
|
Recommended maximum pressure during braking:600kpa(6bar) |
|
|
Operating modes:manual,pneumatic,electric |
|
|
Maximum sterilization temperature,short time:+200℃ |

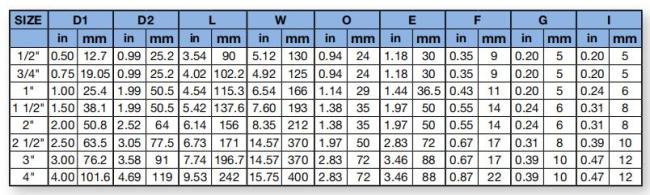

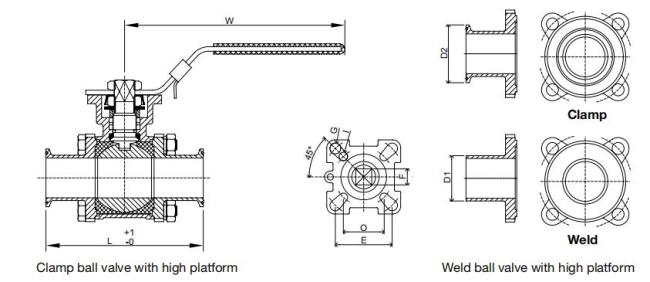

Valve Dimensions
Widely used in food,wine,beverages,dairy products,fine chemicals,pharmaceuticals and health
Materials engineering and many other industries
