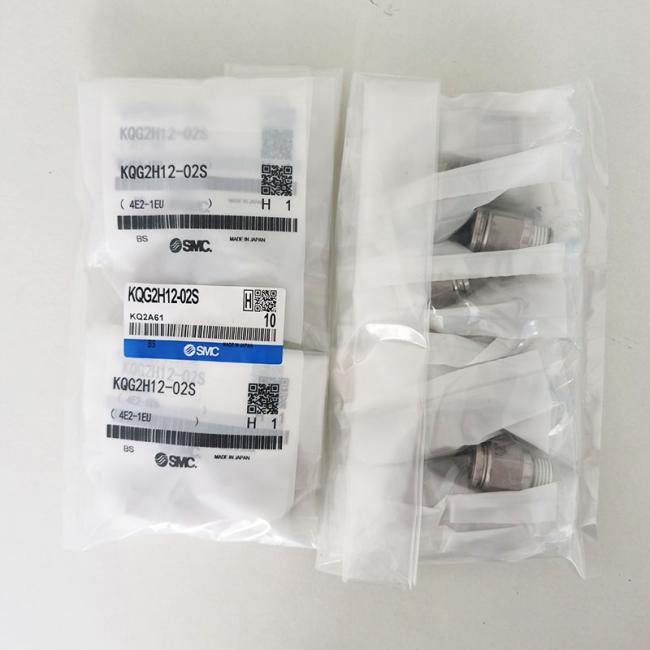

SMC KQG2H12-02S Stainless Steel Pneumatic Fittings OEM 12mm
SMC KQG2H12-02S
High-Precision Stainless Steel 316
Product Description:
Male Connector Push to Connect Fittings with Thread Sealant, 316 Stainless Steel (KQG2H12-02S)
KQG2H Series
Part Number: KQG2H12-02S
SMC One-Touch fitting.
Features
· Compact with reduced weight.
· Non-grease.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Operating fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
Applications
· Used for piping in one direction from a female thread.
Applications:
SMC KQG2H04-01S Pneumatic Pipe Fittings is a reliable solution for pneumatic systems. It is suitable for providing air-tight connections for pneumatic systems, ensuring the system runs smoothly. It is designed with Pressure Test of 1.5 times of Working Pressure to meet the requirement of high pressure environment. It is mainly used in various industries, such as automation, automobile, chemical, electronics, plumbing, pharmaceutical, etc. The Shape of SMC KQG2H04-01S Pneumatic Pipe Fittings includes Straight/ Elbow/ T Type, with Pressure range from 0 to 1Mpa and Size from 1/8 to 1/2 inch. It is certificated by CE and can be customized according to the clients’ requirements. With 10 pieces as minimum order quantity, SMC KQG2H04-01S Pneumatic Pipe Fittings can be delivered within 1-7 work days after payment and supplied up to 5000pcs per month.
SMC KQG2H04-01S Pneumatic Pipe Fittings is widely used in the pneumatic systems for connecting the pneumatic joints, couplings and connectors. These pneumatic pipe fittings are designed with superior material, providing a durable and reliable performance. It is lightweight and easy to install, which makes it ideal for installation in tight spaces. The package of SMC KQG2H04-01S Pneumatic Pipe Fittings can be customized according to the clients’ requirements, such as carton box.
Support and Services:
At Pneumatic Pipe Fittings, our team of highly skilled professionals is dedicated to providing excellent technical support and service to ensure our customers get the most out of their purchase. We provide a number of services that are tailored to the individual customer's needs, including:
- Installation assistance
- Troubleshooting
- Repair and maintenance
- Product customization
- Training
Our team is available 24 hours a day, 7 days a week to answer any questions or address any concerns you might have. We are committed to providing the highest level of customer service and satisfaction, so don't hesitate to reach out to us if you need help with your Pneumatic Pipe Fittings purchase.
| Male Connector: KQG2H | |||||||||
| Applicable tubing O.D (mm) |
Connection thread R, M |
Model | H (Width across flat) |
Note 1) ØD |
L | A* | M | Note 2) Efective area (mm²) |
Weight |
| ø3.2 | M5 x 0.8 | KQG2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.3 |
| 1/8 | KQG2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 5.7 | |||
| 1/4 | KQG2H23-02S | 14 | 21 | 16.3 | 16.9 | ||||
| ø4 | M5 x 0.8 | KQG2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5 |
| 1/8 | KQG2H04-01S | 15.3 | 12.2 | 5.6 | 4.7 | ||||
| 1/4 | KQG2H04-02S | 14 | 20.9 | 16.2 | 15.8 | ||||
| ø6 | M5 x 0.8 | KQG2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 7.7 |
| 1/8 | KQG2H06-01S | 18.1 | 15 | 13.1 | 7 | ||||
| 1/4 | KQG2H06-02S | 14 | 20.8 | 16.1 | 14.5 | ||||
| 3/8 | KQG2H06-03S | 17 | 23 | 17.9 | 27.3 | ||||
| ø8 | 1/8 | KQG2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 16.1 | 26.1 | 12.8 |
| 1/4 | KQG2H08-02S | 22.3 | 17.6 | 12.9 | |||||
| 3/8 | KQG2H08-03S | 17 | 23.7 | 18.6 | 24.7 | ||||
| ø10 | 1/8 | KQG2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 18.9 |
| 1/4 | KQG2H10-02S | 27.9 | 23.2 | 41.5 | 21.6 | ||||
| 3/8 | KQG2H10-03S | 23 | 17.9 | 20.6 | |||||
| 1/2 | KQG2H10-04S | 22 | 28.6 | 22.2 | 51.1 | ||||
| ø12 | 1/4 | KQG2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 27.4 |
| 3/8 | KQG2H12-03S | 24.7 | 19.6 | 20.5 | |||||
| 1/2 | KQG2H12-04S | 22 | 28.7 | 22.3 | 44.6 | ||||
| ø16 | 3/8 | KQG2H16-03S | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 46 | |
| 1/2 | KQG2H16-04S | 24 | 29.5 | 23.1 | 113 | 37.4 | |||
FAQ:
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province, China, 17kms away from
Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes, if your quantity more than 50pcs. we could add your logo on the products.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in
advance ,balance before shipment. Payment ways are : T/T, Western Union, Paypal
Alipay.
