SMC KQG2H16-04S Pneumatic Pipe Fittings Polishing Pneumatic Hose Connector
SMC KQG2H16-04S
Polishing Pneumatic Connectors Used In Automation
Product Description:
Male Connector Push to Connect Fittings with Thread Sealant, 316 Stainless Steel (KQG2H16-04S)
KQG2H Series

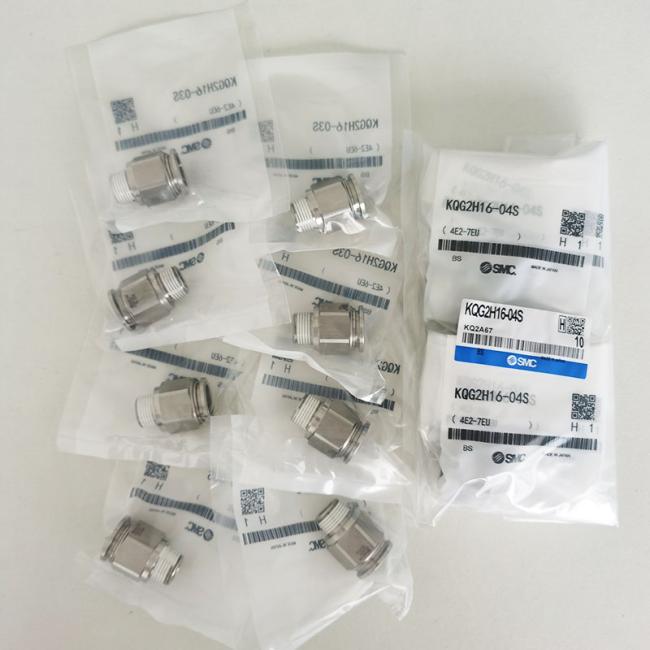

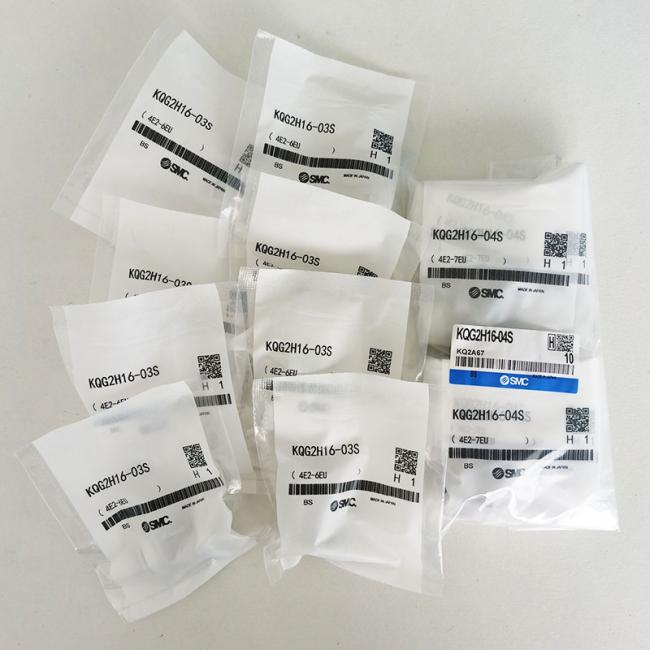

Part Number: KQG2H16-04S
SMC One-Touch fitting.
Features
· Compact with reduced weight.
· Non-grease.
· Can be used with steam.
· Metal part: SUS316, Seal part: special FKM.
· Operating fluid temperature: -5 to +150°C
· Conforms to the Food Sanitation Act of Japan. (Part materials conform to the tool and packaging container standards test.)
Applications
· Used for piping in one direction from a female thread.
Applications:
Support and Services:
Our technical support and services for Pneumatic Pipe Fittings include:
- 24/7 Technical Support
- On-site Installation and Maintenance
- Troubleshooting and Repair Assistance
- Product Training and Certification
- Warranty and Replacement Parts
| Male Connector: KQG2H | |||||||||
| Applicable tubing O.D (mm) |
Connection thread R, M |
Model | H (Width across flat) |
Note 1) ØD |
L | A* | M | Note 2) Efective area (mm²) |
Weight |
| ø3.2 | M5 x 0.8 | KQG2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.3 |
| 1/8 | KQG2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 5.7 | |||
| 1/4 | KQG2H23-02S | 14 | 21 | 16.3 | 16.9 | ||||
| ø4 | M5 x 0.8 | KQG2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5 |
| 1/8 | KQG2H04-01S | 15.3 | 12.2 | 5.6 | 4.7 | ||||
| 1/4 | KQG2H04-02S | 14 | 20.9 | 16.2 | 15.8 | ||||
| ø6 | M5 x 0.8 | KQG2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 7.7 |
| 1/8 | KQG2H06-01S | 18.1 | 15 | 13.1 | 7 | ||||
| 1/4 | KQG2H06-02S | 14 | 20.8 | 16.1 | 14.5 | ||||
| 3/8 | KQG2H06-03S | 17 | 23 | 17.9 | 27.3 | ||||
| ø8 | 1/8 | KQG2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 16.1 | 26.1 | 12.8 |
| 1/4 | KQG2H08-02S | 22.3 | 17.6 | 12.9 | |||||
| 3/8 | KQG2H08-03S | 17 | 23.7 | 18.6 | 24.7 | ||||
| ø10 | 1/8 | KQG2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 18.9 |
| 1/4 | KQG2H10-02S | 27.9 | 23.2 | 41.5 | 21.6 | ||||
| 3/8 | KQG2H10-03S | 23 | 17.9 | 20.6 | |||||
| 1/2 | KQG2H10-04S | 22 | 28.6 | 22.2 | 51.1 | ||||
| ø12 | 1/4 | KQG2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 27.4 |
| 3/8 | KQG2H12-03S | 24.7 | 19.6 | 20.5 | |||||
| 1/2 | KQG2H12-04S | 22 | 28.7 | 22.3 | 44.6 | ||||
| ø16 | 3/8 | KQG2H16-03S | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 46 | |
| 1/2 | KQG2H16-04S | 24 | 29.5 | 23.1 | 113 | 37.4 | |||
