Standard Stroke

1.CY3B series rodless pneumatic cylinder are very wide used in automationline
2.Normally bore size: 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm,63mm
3.Use rubber cushion standard type to keep the cylinder operatingsoomthly, safely and quietly.
4.Easier and various mounting.
5.Slide bearing type.

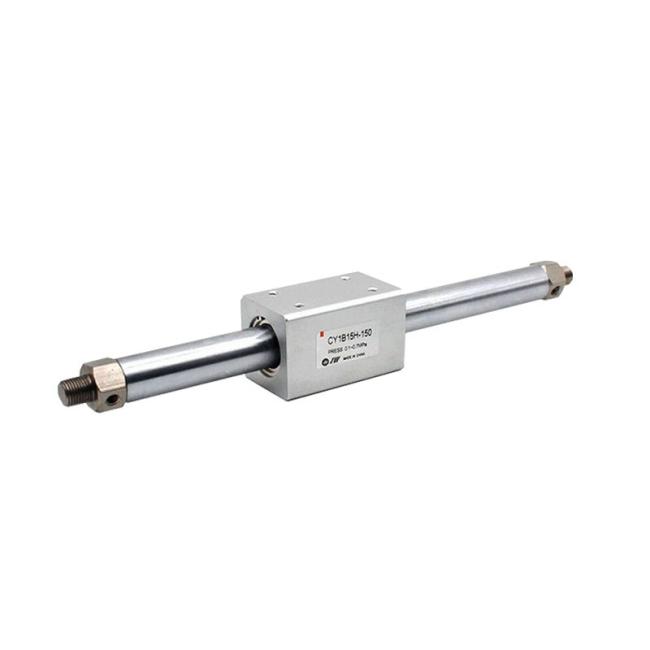

CY3B magnetic coupling rodless cylinder,the range of travel options is large, the stroke is larger than that of ordinary cylinder; the use of ball bearings makes the cylinder bear eccentric load and can move smoothly; the piston has no mechanical connection between sliders, and the sealing performance is excellent; it can install buffer, and the reversing action is smooth and impact-free.

1,Reduced in weight
2,Reduced in length
3,Lube-retainers are mounted on the internal and external surfaces of the cylinder tube to maintain the lubrication.
4,Adjustment bolt improves stroke accuracy/repeatability. Stroke position can be maintained with the adjustment bolt positioned next to the shock absorber, so stroke adjustment is not necessary.
5,NPT thread and G thread are available as standard

Bore size(mm)	6	10	15	20	25	32	40	50	63
Working medium	Air
Proof pressure	1.05Mpa
Min pressure	0.16	0.16	0.16	0.16	0.15	0.14	0.12	0.12	0.12
Max pressure	0.7Mpa
Working temperature	-10~60ºC
Piston speed	50-500 mm/s
Cushion	Rubber bumper
Lubrication	NOT required
Magnet holding force(N)	19.6	53.9	137	231	363	588	922	1471	2256







CY3B Series Basic Magnetic Coupling Rodless Cylinder Product features

Product features	1.The wear-resistant ring is 70% more than the CYl B series, so the bearing capacity of the shaft is improved.
	2The wear-resistant ring of special resin is used to improve the lubrication and durability.
	3.The pedal dust-proof ring reduced the minimum working pressure by 30%.
	4.The installation dimensions are the same as CY1B/R series.







Component	Bore size (mm)	d	H	B	C
SNJ-006B	6	M6X1.0	4	8	92
SNJ-016B	10,15	M10X1.0	4	14	16.2
SNJ-020B	20	M20X1.5	8	26	30
SNJ-032B	25,32	M26X1.5	8	32	37
SNJ-040B	40	M32X2.0	10	41	47.3

Installation and instruction

Installation and instruction	1.Must clean up the dirt in the pipeLine before cylinder is connected, in order to keep the inside cleanness of cylinders.
	2.The medium used by cylinder sha[ be filtered by filter element(greater than 40um) before use.
	3.Anti-freezing measures sha[ be taken under low temperature environment in order to prevent moisture from freezing in the system.
	4.If cytinder was leaved unused for long time, watch out to the rusty surface and install dust plug at inlet and outlet
