Product Description:

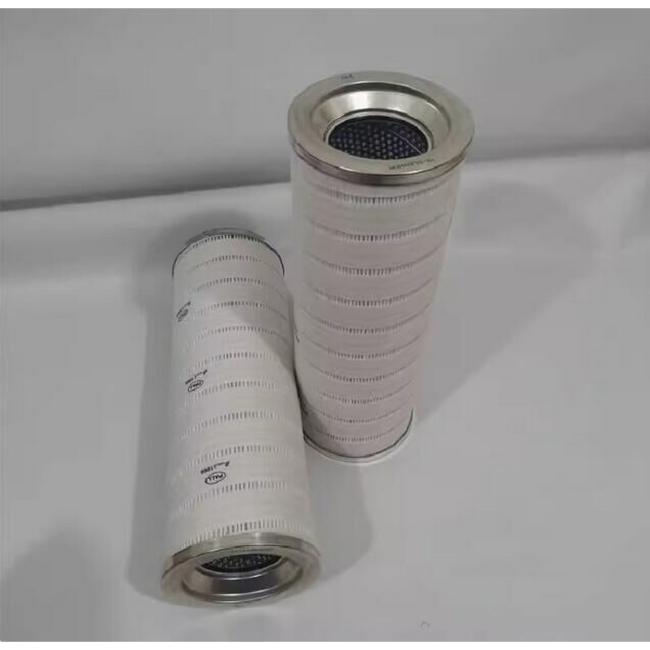

Installation of PALL Filter Element:

For the suction port of the pump, it is important to install a surface type oil filter to safeguard the hydraulic pump by filtering out larger impurities and particles. It is suggested that the filtering capacity should be more than twice the pump flow rate to maintain optimal performance. The pressure loss should not exceed 0.02 MPa.

When it comes to the outlet oil circuit of the pump, the purpose of installing an oil filter here is to protect components such as valves. The PALL filter element should be able to withstand the working pressure and impact pressure on the oil circuit and have a pressure drop of less than 0.35 MPa. The filtration accuracy required is between 10 to 15 μm. It is important to install a Safety valve to prevent oil filter blockage.

To serve as an indirect filter, the PALL filter element should be installed on the system's return oil line. Usually, a back pressure valve is installed in parallel with the filter. The back pressure valve opens when the filter becomes clogged and reaches a certain pressure value.

For the system branch oil circuit, it is suggested to install the PALL filter element to ensure the proper functioning of the hydraulic system.

In large hydraulic systems, an independent filtration circuit can be formed with a dedicated hydraulic pump and oil filter. It is essential to install a dedicated fine oil filter in front of some important components, such as servo valves and precision throttle valves, to ensure their normal operation in the PALL filter hydraulic system.

Features:

Applications:

Petrochemicals are important in refining and chemical production processes. During these processes, products and intermediate products need to be separated and recovered. Additionally, liquids need to be purified, and particles need to be removed from oil field well water and natural gas. Magnetic tapes, optical discs, and photographic films also need to be purified and filtered to ensure high quality during manufacturing. All of these processes require proper filtration and separation technique.

In textile manufacturing, polyester melt needs to be uniformly filtered and purified during the wire drawing process. In addition, air compressors require protective filtration, and compressed gas often needs to have oil and water removed. Filtration plays a crucial role in ensuring the quality of textile products.

Electronics and pharmaceuticals require high-quality water and cleaning solutions. Filtration is necessary for the pre-treatment and filtration of reverse osmosis water and deionized water. Glucose and other solutions also require pre-treatment and filtration to ensure their purity.

In thermal power and nuclear power industries, oil needs to be purified for lubrication systems, speed control systems, bypass control systems of gas turbines and boilers. The feed pumps, fans, and dust removal systems also require proper filtration to function smoothly.

Filtration is essential for mechanical processing equipment and machinery used in papermaking, mining, injection molding, and precision machinery. The lubrication systems and compressed air used in these machines also require proper purification to function properly. Tobacco processing equipment and spraying equipment require dust recovery and filtration to maintain their quality.

Railway internal combustion engines and generators require filtration of lubricating oil and engine oil to function efficiently. Similarly, automotive engines and construction machinery require air filters, oil filters, fuel filters for internal combustion engines, various hydraulic oil filters, diesel filters, and water filters to ensure the prevention of damage caused by contaminants.

Support and Services:

Our Hydraulic Filter Element products are designed to keep your hydraulic systems running smoothly and efficiently. We offer a range of filter element materials, sizes, and micron ratings to meet the needs of your specific application. Our technical support team is available to assist with any questions you may have regarding installation, maintenance, or troubleshooting. Additionally, we offer services such as filter element testing and analysis to ensure optimal performance of your hydraulic system. Trust our expertise and experience to keep your machinery running at its best.

Packing and Shipping:

Product Packaging:

The Hydraulic Filter Element product will be packaged with care in a sturdy cardboard box to ensure it arrives at its destination in excellent condition. The product will be wrapped in protective material to prevent any scratches or damage during transit.

Shipping:

We offer free shipping for the Hydraulic Filter Element product to any location within the United States. The product will be shipped via UPS Ground and will typically arrive within 3-5 business days. For international orders, shipping rates will vary depending on the destination and shipping method selected at checkout.
