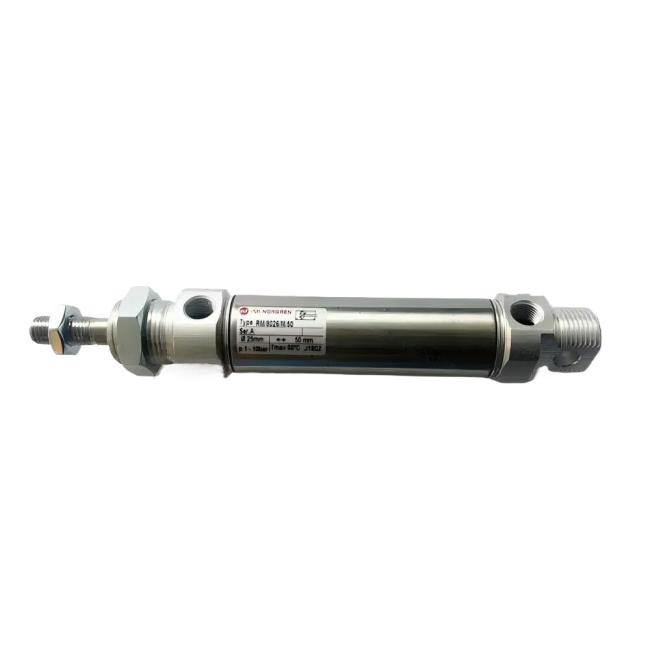

ISO Roundline Series Piston Pneumatic Cylinder RM/8012/M/30 NORGREN Double Acting
Product Description:
The NORGREN RM series cylinders are innovative pneumatic actuators created by Norgren in the UK. These high-performance cylinders are specifically engineered for industrial automation , complying with the ISO 6432 standard and suitable for use in a variety of harsh environments .
This series of cylinders offers double-acting or single-acting drive methods, with examples such as the RM/28000/M as a single-acting spring-return type and the RM/8025/M as a double-acting type . Equipped with magnetic pistons and supporting precise control by magnetic switches , these cylinders meet the flexible system integration requirements .
Technical Parameters:
| Medium: | Compressed air, filtered, lubricated or non-lubricated |
| Standard: ISO 6432 | ISO 6432 |
| Operation: | Double acting with magnetic piston and buffer or adjustable cushioning |
| Operating pressure: | 1 ... 10 bar (14 ... 145 psi) |
| Cylinder diameters: | 10, 12, 16, 20, 25 mm (buffer) |
| Strokes: | See page below |
| Non-standard strokes: | Up to 1000 mm max. on request |
| Operating temperature: | 5 ... +80°C max. (+23 ... +176°F) |
| Materials: | Barrel: stainless steel (austenitic) |
| End covers: clear anodised aluminium alloy | |
| Piston rod: stainless steel (austenitic) | |
| Buffer: PUR | |
| Wiper: PUR | |
| Seals: NBR |
Applications:
Typical applications span across various fields, including food packaging, pharmaceutical equipment, and chemical automation. These applications are especially well-suited for environments that demand resistance to corrosion, effortless cleaning, or frequent operation.
Support and Services:
Product Technical Support and Services
Piston Pneumatic Cylinder
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: This high-quality piston pneumatic cylinder is designed for efficient and reliable performance in industrial applications.
Package Includes: 1 x Piston Pneumatic Cylinder
Shipping Details: This product will be carefully packaged to ensure safe delivery to your location. We offer standard and expedited shipping options to suit your needs.
