Product Description:

Pulse Jet Valve is a type of valve which converts a continuous input signal into a pulsed signal through the delay of gas flowing through gas resistance and gas capacity. The air inlet of the right angle pulse jet valve is designed with an inner structure that includes the installation and use of a positioning steel ring. This prevents loosening caused by inertial impact and ensures precise positioning during installation.

Even after prolonged use, the stainless steel nut of the valve remains reliable and allows for easy disassembly and assembly when needed.

Applications:

Bag Filter Pulse Cleaning System

Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.

Applicable Equipment:

• Cement plant rotary kiln dust collector
• Steel plant blast furnace gas purification system
• Bag dust removal device for coal-fired power plants
• Dust collection system for chemical/pharmaceutical industry
• Material conveying and pneumatic conveying system
• Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines)

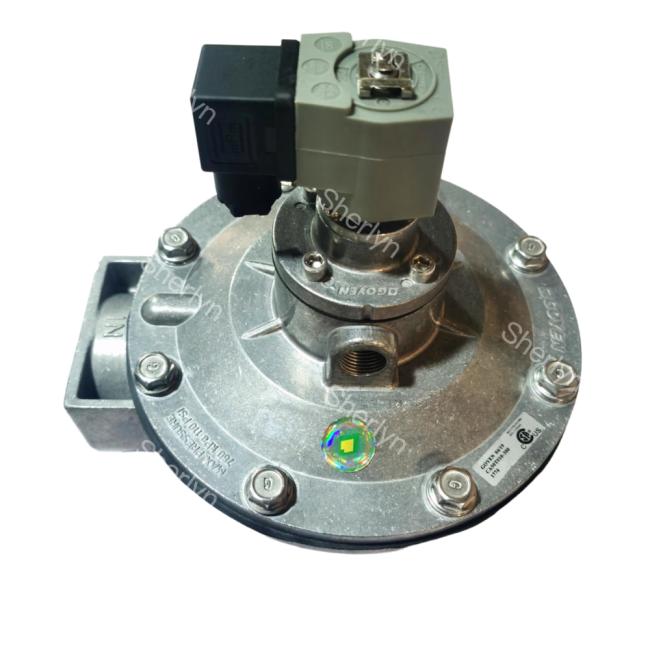

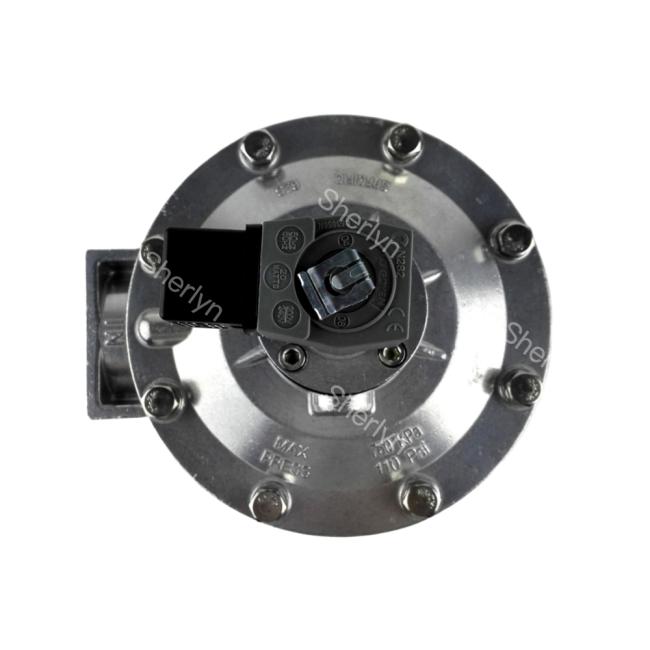

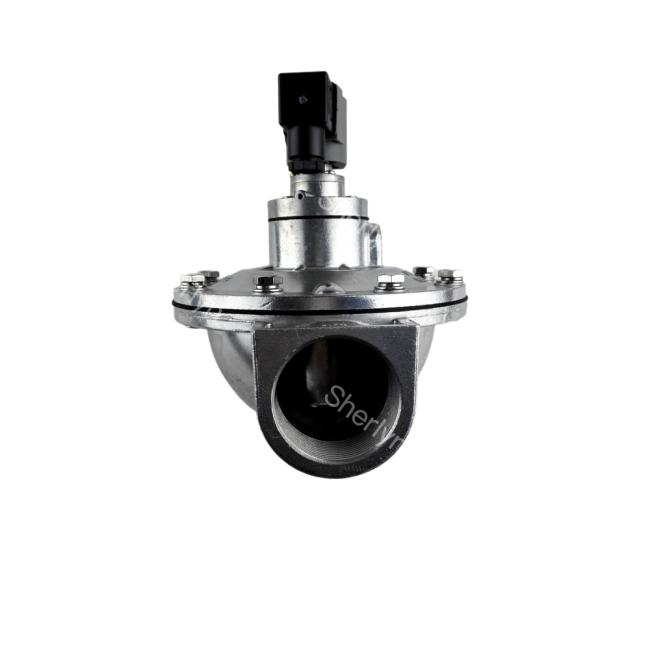

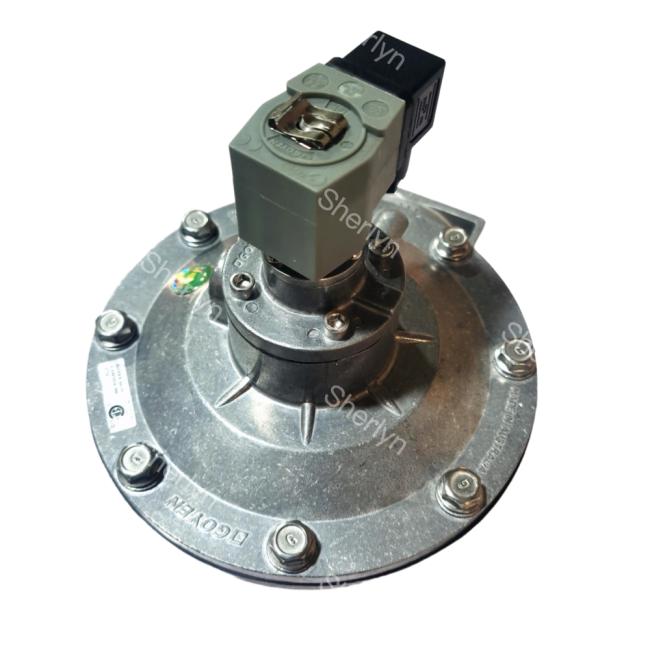

Goyen Type CA50T 2'' Right Angle Bag Filter System Diaphragm Valve

This is CA50T Goyen Type Pulse Jet Valve; Reference No: CA50T000, CA50T001, CA50T010, CA50T000-300, CA50T000-305, CA50T000-331, CA50T001-300, CA50T001-305, CA50T001-331, CA50T010-300, CA50T010-305. 2'' inlet and outlet threaded port size; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.

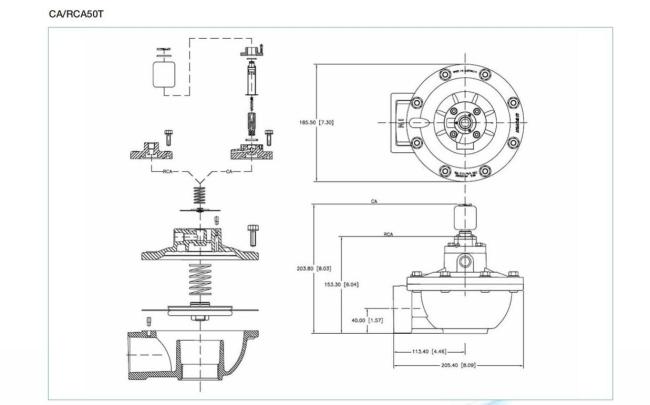

Technical data of Right Angle Pulse Jet Valves:

Support and Services:

The Product Technical Support and Services for the Pulse Jet Valves product are designed to provide comprehensive assistance for installation, troubleshooting, and maintenance of the valves. Our team of skilled technicians is available to answer any technical inquiries and provide guidance on optimizing the performance of your pulse jet valves.

Packing and Shipping:

Product Packaging:

The Pulse Jet Valves are carefully packed in sturdy cardboard boxes to ensure safe transport and delivery. Each valve is individually wrapped in protective packaging to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping options for the Pulse Jet Valves. Orders are processed promptly and shipped securely to your desired location. Our shipping partners ensure that your valves reach you in perfect condition and on time.
