Mecair 2-inch Diaphragm Repair Kit DB116 DB16 VNP216 VEM216 VNP316 VITON Customization
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | NBR, VITON |
|---|---|---|---|

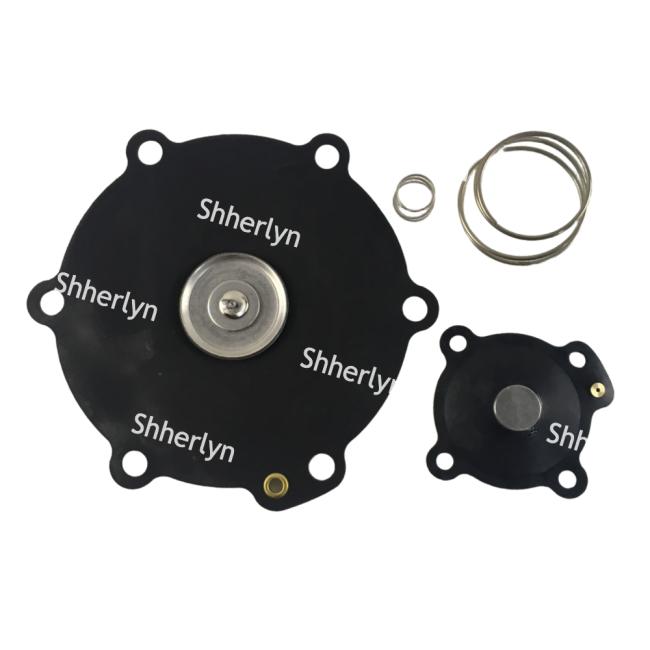

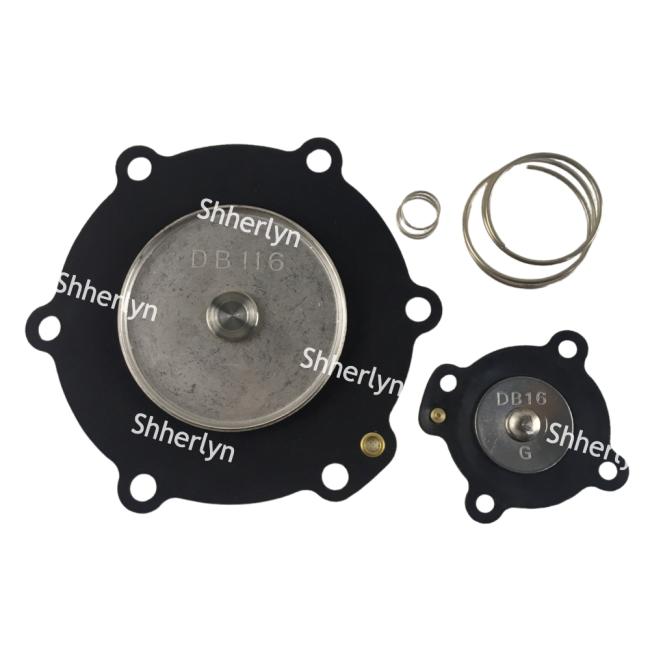

| 1 Set: | 1pc DB116 Diaphragm, 1pc DB16 Diaphragm, 2pcs Springs | Fitted Pulse Valve Model: | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
| Highlight: |
DB116 Diaphragm Repair Kit,DB116/C Diaphragm Repair Kit,Mecair Db 116/c |
||
Product Description:

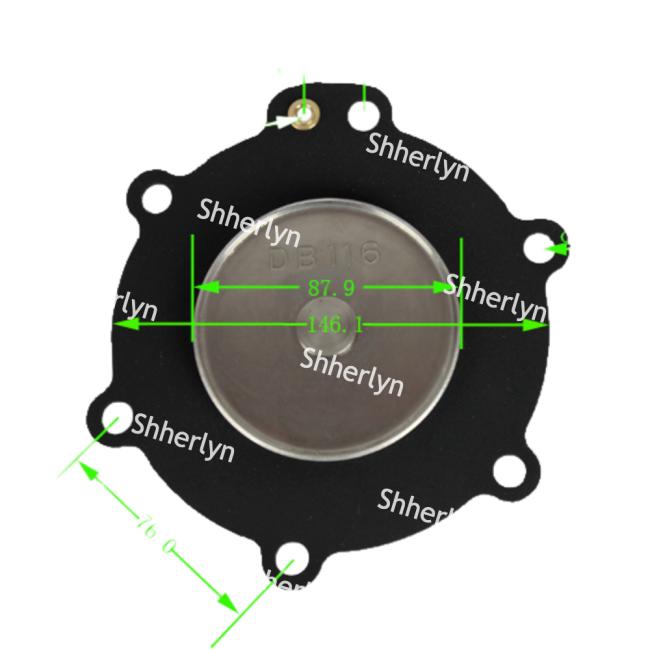

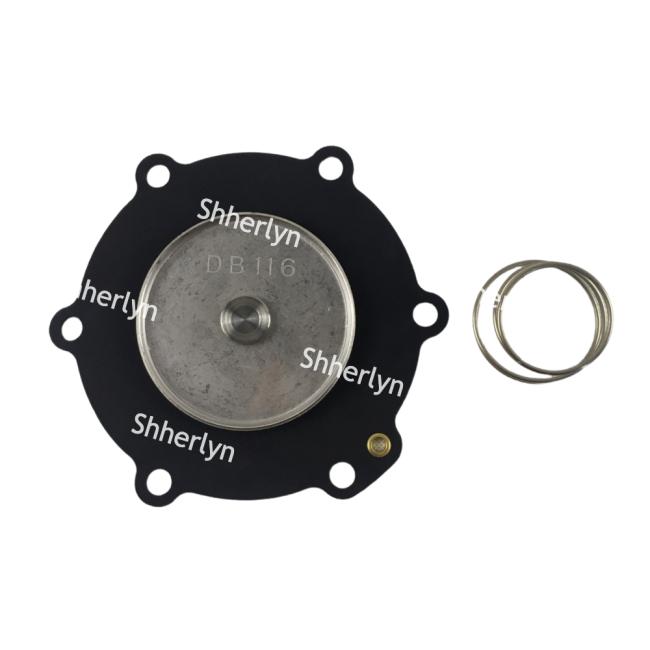

DB116 ( DB116/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.
Applications:
Industrial Baghouse Dust Removal System
Function: control compressed air pulse blowing to remove accumulated dust on filter bags
Industry Examples:
Cement Plant: dust collector at kiln end (gas temperature < 80°C)
Steel Plant: dedusting at sintering machine head (to be used with pre-cooler)
Wood Processing: sawdust collection system
-------------------------------
Powder Pneumatic Conveying Clearing Blockage
Install pulse valve at pipe blockage point, trigger instant air flow impact through C113825 diaphragm to clear (e.g. food-grade calcium carbonate, plastic pellet conveying)
-------------------------------
Silo Arch Breaking Device
Break material arching in coal powder silo/grain silo (working frequency: ≤30 times/minute)
Ordering Code of Mecair Type Diaphragm Repair Kit:
| Ordering code | Fitted valve code | Valve port size | Material |
| DB16 | VNP206, VEM206, VNP306, VEM306 | 3/4'' | Nitrile/Buna |
| DB18 | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708 | 1'' | Nitrile/Buna |
| DB112 | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | 1-1/2'' | Nitrile/Buna |
| DB114 | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | 1-1/2'' | Nitrile/Buna |
| DB116 | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 | 2'' | Nitrile/Buna |
| DB120 | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 | 2-1/2'' | Nitrile/Buna |
| Tips: EPDM, FKM all available. | |||
