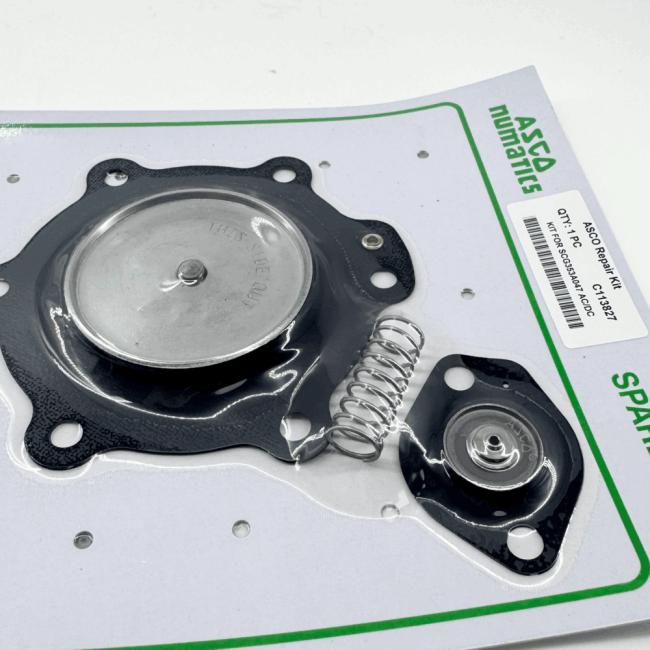

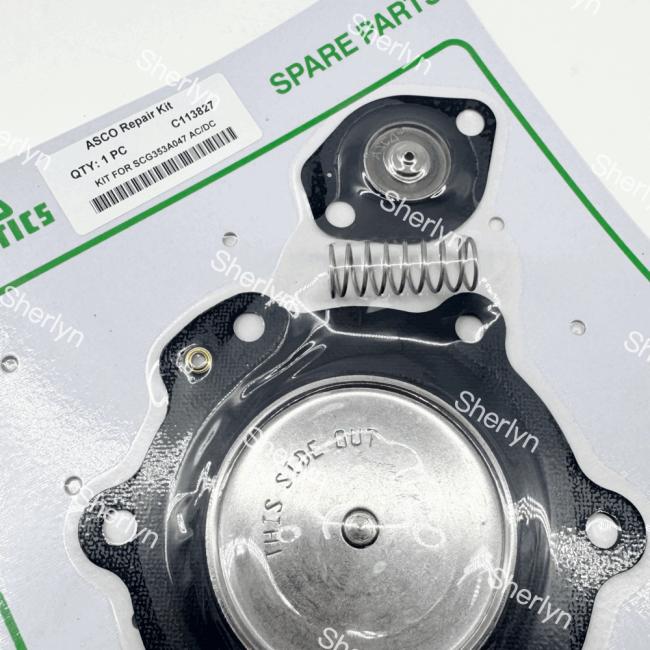

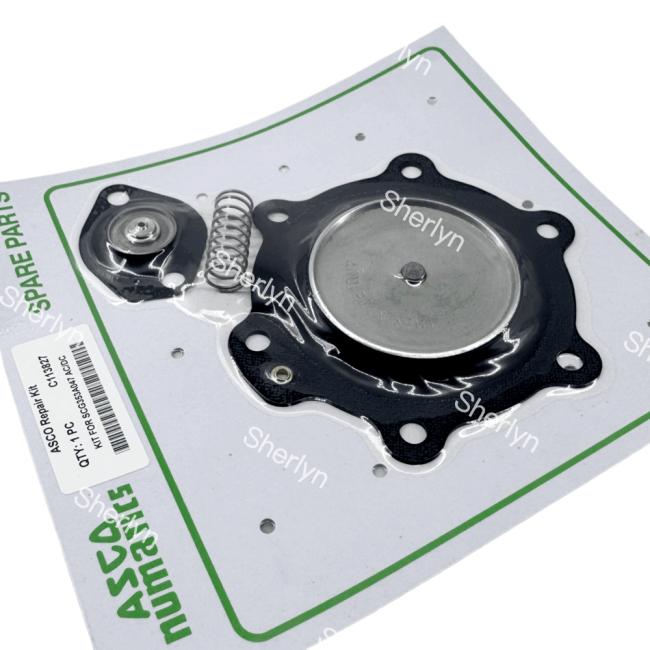

ASCO 1.5-inch diaphragm repair kit C113827/C140741 electromagnetic pulse valve SCG353A047 dust collector accessories NBR/VITON
| Product Name: | Pulse Valve Diaphragm | Ordering Code: | C113827, C113-827 |
|---|---|---|---|
| Diaphragm Material: | NBR, VITON | 1 Set: | 1pc Big Diaphragm, 1pc Small Diaphragm, 1pc Springs |
| Fitted Pulse Valve Port Size: | 1.5'' | Fitted Pulse Valve Model: | SCG353A047 |
| Highlight: |
C113827 NBR Diaphragm Kit,1-1/2'' NBR Diaphragm Kit,ASCO C113827 Diaphragm |
||
Product Description:
Applications:
Industrial Bag Type Dust Removal System
Function: Control compressed air pulse blowing to remove accumulated dust on filter bags
Industry Cases:
Cement Plant: Dust collector at the kiln end (gas temperature < 80℃)
Steel Plant: Dedusting at the sintering machine head (requires a pre-cooler)
Wood Processing: Sawdust dust collection system
Powder Pneumatic Conveying Declogging
Install pulse valves at pipeline blockage points, triggering instantaneous airflow impact using C113825 diaphragm for unblocking (e.g., food-grade calcium carbonate, plastic pellet conveying)
Material Bin Arch Breaking Device
Break material bridging in coal powder bin/grain bin (operating frequency: ≤30 times/minute)
| Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| (FKM is also available) | |||
| 3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
| 1'' | SCG353A044 | ||
| 3/4'' | SCG353-052 | ||
| 1'' | SCG353-053 | ||
| 3/4'' | SGG353A043 | ||
| 1'' | SGG353A044 | ||
| 3/4'' | SGG353-052 | ||
| 1'' | SGG353-053 | ||
| 1 1/2'' | SCG353A047 | C113827 | NBR |
| SGG353A065 | |||
| 2'' | SCG353A050 | C113685, C113686 | NBR |
| 2 1/2'' | SCG353A051 | ||
| 3'' | SCXE353.060 | C123432, C123433 | NBR |
| SCG353D060 | |||
| 3/4'' | G3530A41 | C113443 | NBR |
| 1'' | G353A042 | ||
| 3/4'' | G353-055 | ||
| 1'' | G353-056 | ||
| 1 1/2'' | G353A045 | C113825 | NBR |
| G353-066 | |||
| 1 1/2'' | G353A046 | C113826 | NBR |
| G353A063 | |||
| 2'' | G353A048 | C113684 | NBR |
| 2 1/2'' | G353A049 |
Support and Services:
Our Product Technical Support team for the Pulse Valve Diaphragm is dedicated to providing assistance with any technical issues or questions that may arise. We offer comprehensive services to ensure that our customers receive the support they need to effectively use and maintain their pulse valve diaphragms.
Our services include troubleshooting, installation guidance, maintenance tips, and product training. We are committed to helping our customers achieve optimal performance and longevity from their pulse valve diaphragms.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, designed for efficient and reliable operation.
Package Contents: One pulse valve diaphragm
Package Material: Durable cardboard box
Shipping Method: Standard delivery
Shipping Time: 3-5 business days
