ASCO 1.5-inch Diaphragm C113826 SCG353A046 Pulse Valve Diaphragm Repair Kit
| Product Name: | Pulse Valve Diaphragm | Suitable Pulse Valve Model: | G353A046 |
|---|---|---|---|

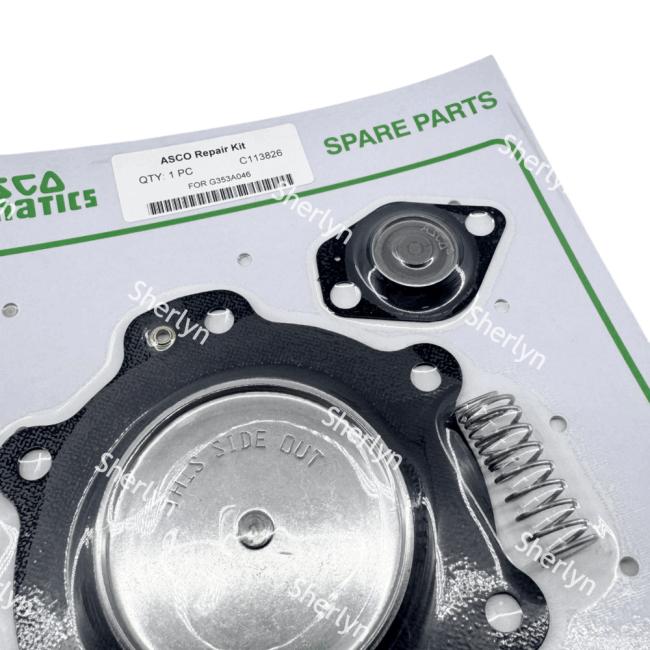

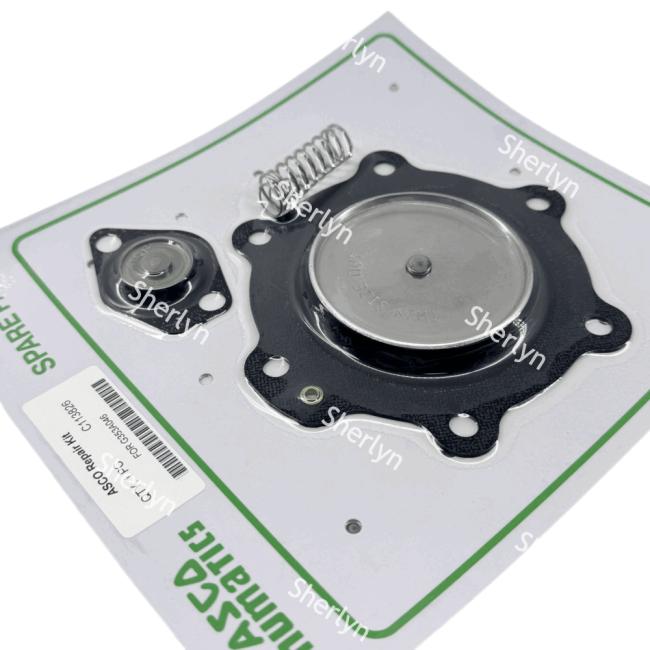

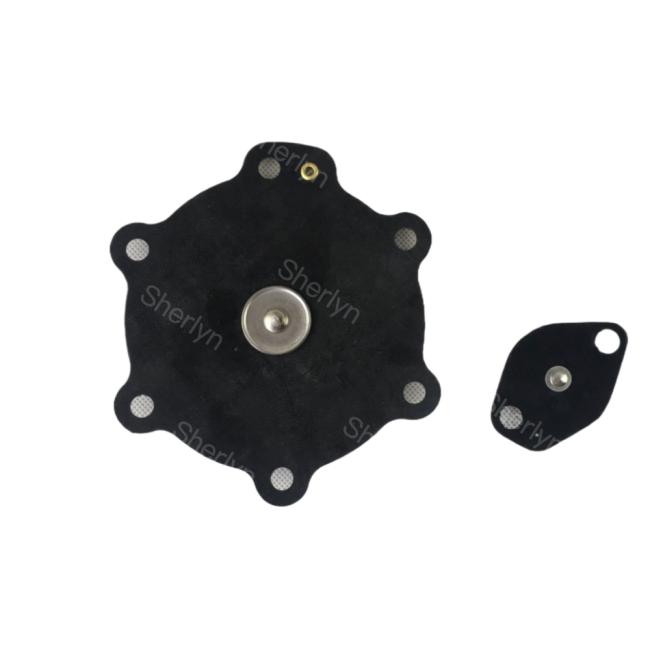

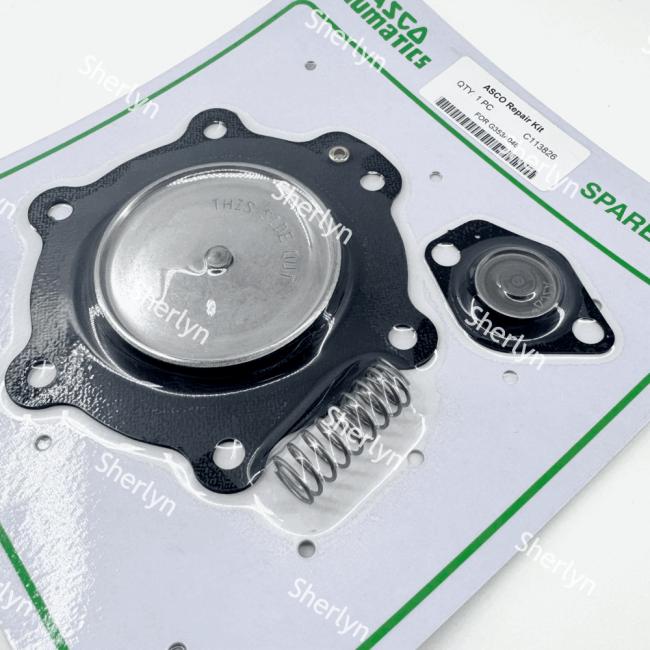

| Diaphragm Material: | NBR, FKM | 1 Set: | 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs |
| Highlight: |
C113826 Diaphragm Repair,ASCO G353A046 Diaphragm Repair Kit,ASCO C113826 Diaphragm |
||
Product Description:
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Applications:
Industrial Bag-type Dust Removal System
Function: Control compressed air pulse blowing to remove the accumulated dust on filter bags
Industry Cases:
- Cement Plant: Dust collector at the kiln tail (smoke temperature < 80°C)
- Steel Plant: Dust removal at the sintering machine (requires pre-cooler)
- Wood Processing: Sawdust collection system
Powder Pneumatic Conveying Blockage Clearing
Install pulse valves at pipeline blockage points, triggering instantaneous airflow impact using C113825 diaphragms to clear obstructions (e.g., food-grade calcium carbonate, plastic granules conveying)
Silo Arch Breaking Device
Break material arch in coal powder silos/grain silos (operating frequency: ≤30 times/minute)
1.5'' C113826 Diaphragm Repair Kit For ASCO G353A046 Remote Pilot Valve
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Ordering Code of Diaphragm For ASCO Pulse Valve:
| Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| (FKM is also available) | |||
| 3/4'' | SCG353A043 | C113444 | TPE (White), NBR (Black) |
| 1'' | SCG353A044 | ||
| 3/4'' | SCG353-052 | ||
| 1'' | SCG353-053 | ||
| 3/4'' | SGG353A043 | ||
| 1'' | SGG353A044 | ||
| 3/4'' | SGG353-052 | ||
| 1'' | SGG353-053 | ||
| 1 1/2'' | SCG353A047 | C113827 | NBR |
| SGG353A065 | |||
| 2'' | SCG353A050 | C113685, C113686 | NBR |
| 2 1/2'' | SCG353A051 | ||
| 3'' | SCXE353.060 | C123432, C123433 | NBR |
| SCG353D060 | |||
| 3/4'' | G3530A41 | C113443 | NBR |
| 1'' | G353A042 | ||
| 3/4'' | G353-055 | ||
| 1'' | G353-056 | ||
| 1 1/2'' | G353A045 | C113825 | NBR |
| G353-066 | |||
| 1 1/2'' | G353A046 | C113826 | NBR |
| G353A063 | |||
| 2'' | G353A048 | C113684 | NBR |
| 2 1/2'' | G353A049 |
