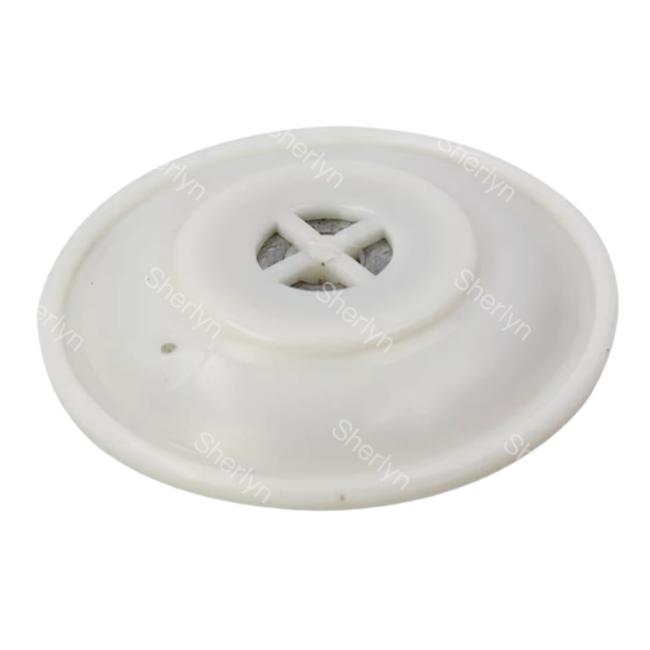

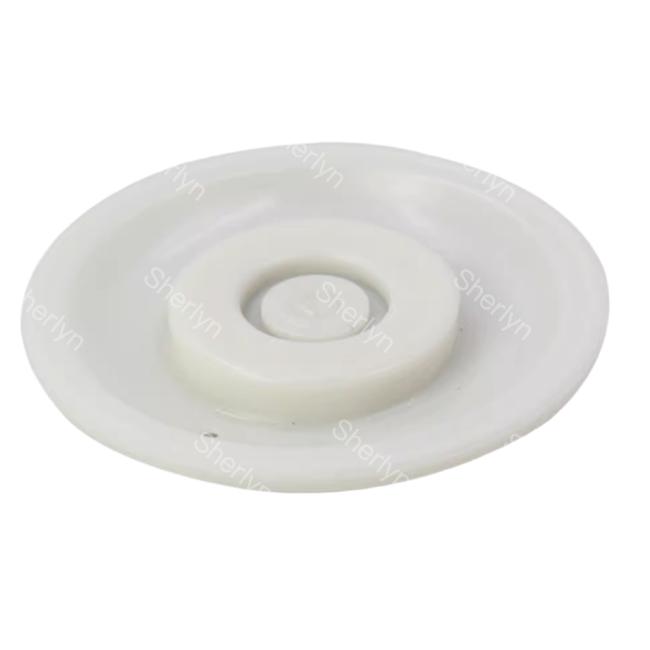

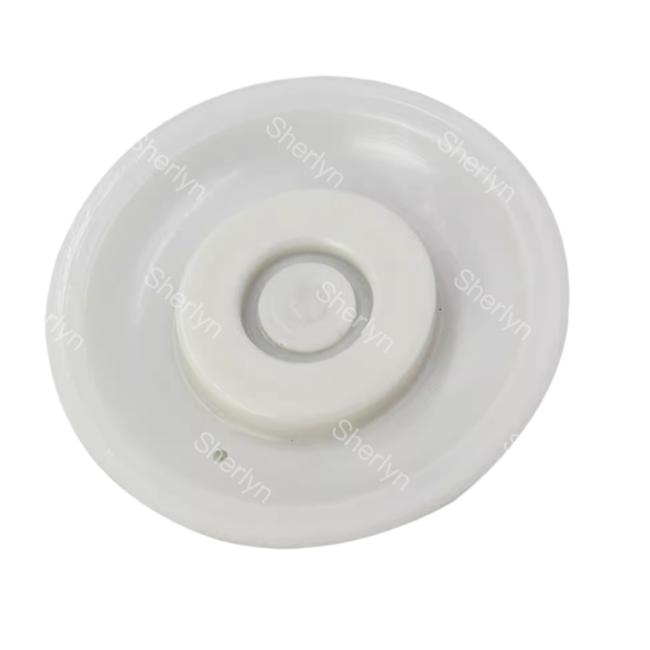

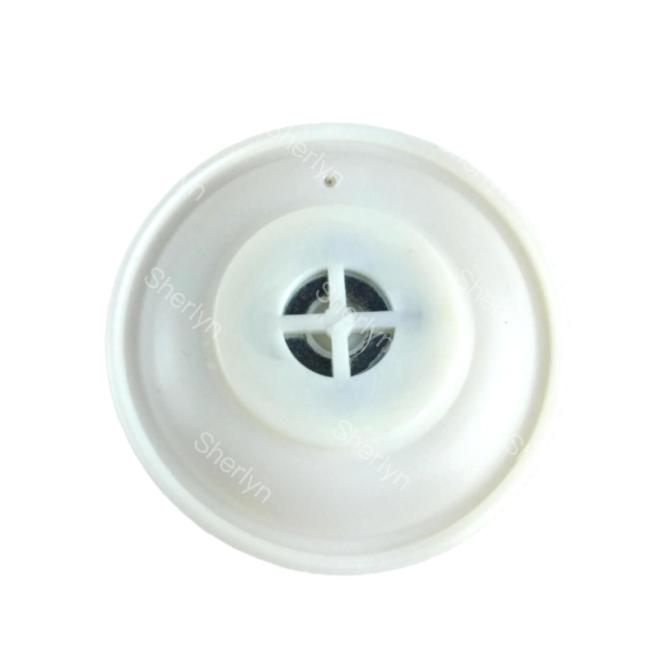

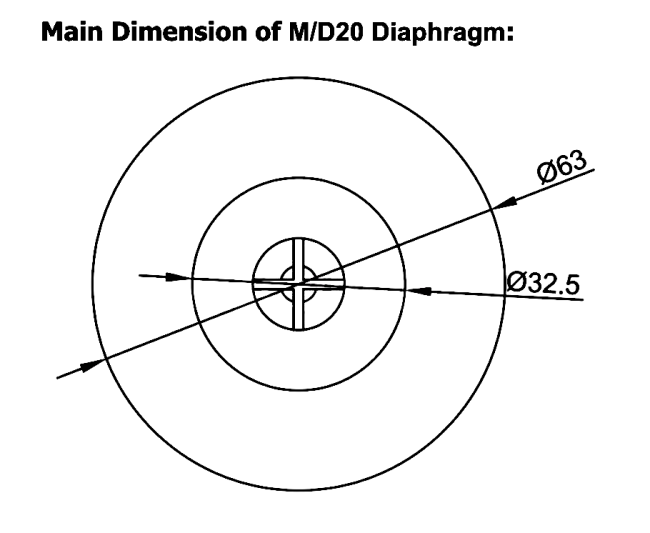

M/D20 Diaphragm For Autel Dust Collector Pulse Valve 3/4'' AE1818B AE2818B
| Product Name: | Pulse Valve Diaphragm | Diaphragm Material: | TPE |
|---|---|---|---|
| Fitted Pulse Valve Port: | 3/4'' | Fitted Pulse Valve Model: | AE1818B, AE2818B |
| Highlight: |
M/D20 Diaphragm Kits,TPE Diaphragm Kits,Autel M/D20 Diaphragm |
||
Product Description:
The M/D series membrane (such as M/D25 type) is made of thermoplastic elastomer (TPE) material, which has excellent fatigue resistance and wide temperature adaptability (-40 ℃~100 ℃), designed specifically for the high-frequency blowing and cleaning requirements of Autel pulse valves. The three-layer composite structure (sealing layer+polyester fiber skeleton+elastic layer) ensures fast response (≤ 30ms) and long lifespan (standard 1 million actions) in high-pressure environments.
- Diaphragm Material Options: TPE, NBR, EPDM, FKM
- Seat Material Options: Nylon, Rubber, PTFE
- Diaphragm Color Options: Black, White, Red, Green, and more
- Diaphragm Size: Custom sizes available to match your specific requirements
- Packaging: Custom plastic bags with low minimum order quantity (MOQ) for your convenience
Applications:
The baghouse pulse jet system utilizes M/D series diaphragms (e.g., M/D25) as core sealing and actuating components of the pulse valves. These diaphragms control the momentary release of compressed air in the baghouse, allowing high-frequency pulses (several times per second) to clean the surface area of filter bags.
Operating procedure: electrical signal triggers the pulse valve → diaphragm opens instantaneously → compressed air is injected into the filter bags via blowpipes → filter bag expands and shakes off dust → diaphragm returns to closed position.
Compatible valve models include:
- Autel AE1825B, AE2825B, AE1825R, and other 1-inch pulse valves;
- MD series pulse valves (e.g., MD120, MD125, MD140S), especially suitable for valves with nominal diameters ranging from 20mm to 76mm.
Powder conveying and silo arch breaking play a crucial role in clearing blockages in pneumatic conveying pipelines or breaking material bridges in silos. The use of pulse airflows helps prevent clogging and is applicable in scenarios involving coal dust, grains, plastic pellets, and more.
| Industry | Application | Compatible Diaphragm Models | Key Requirements |
|---|---|---|---|
| Cement Manufacturing | Kiln tail dust collector, raw material grinding dust removal | M/D25, MD140S | Resistant to normal-temperature dust (<80°C) |
| Steel Smelting | Sintering machine head dust removal, blast furnace gas purification | MD150S, MD162S | Requires cooling device (temperature ≤60°C) |
| Wood Processing | Sawdust collection system | MD125 | Explosion-proof design |
| Food/Chemical Industry | Powder pneumatic conveying for blockage clearance | M/D25 (TPE material) | Oil-free dry air (FDA compatibility) |
| Waste Incineration | Flue gas treatment system | Requires EPDM/FKM diaphragms | Corrosion-resistant (acidic gas) |
M/D20 TPE Diaphragm Kits For 3/4'' 1'' Dust Collector Pulse Jet Valve
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ
| Diaphragm | Diaphragm | Pulse Valve | Pulse Valve | Diaphragm |
| Order Code | Reference No | Model No | Port Size | Material |
| AE18 | M/D20 | AE1818B, AE2818B | 3/4'', 1'' | TPE (Standard) |
| AE1822B, AE2822B | FKM+PTFE (High Temperature) | |||
| AE25 | M/D25 | AE1825B, AE2825B | 1'' | |
| AE1825R, AE2825R | ||||
| AE40 | M/D40 | AE1440B, AE2440B | 1-1/2'' | |
| AE1440R, AE2440R | ||||
| AE50 | M/D50 | AE1450B, AE2450B | 2'', 2-1/2'' | |
| M/D60 | AE1460B, AE2460B | |||
| AE75 | M/D75 | AE1475I12, AE2475I12 | 3'' |
