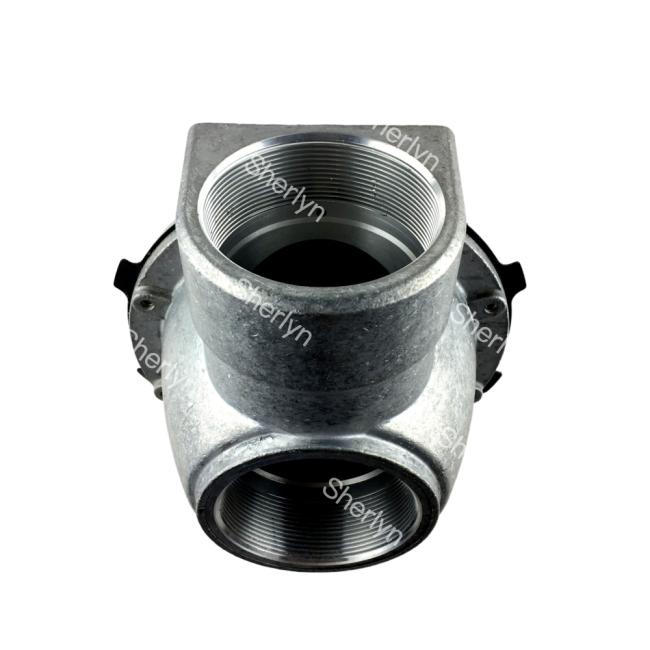

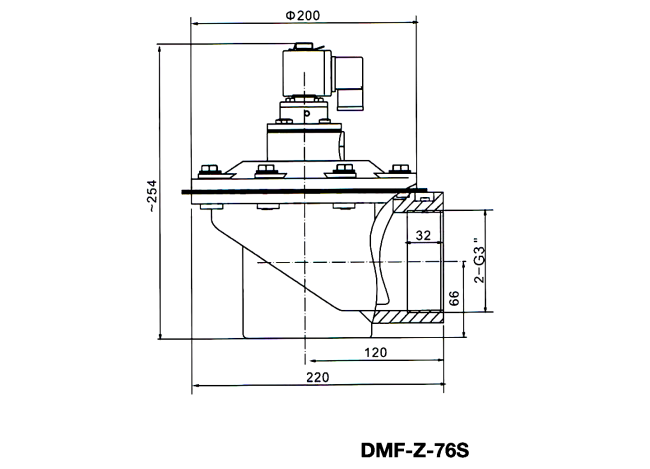

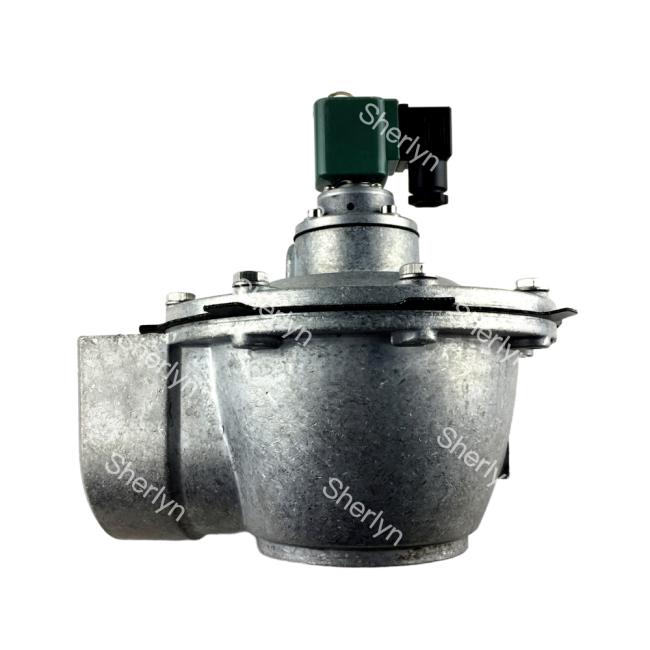

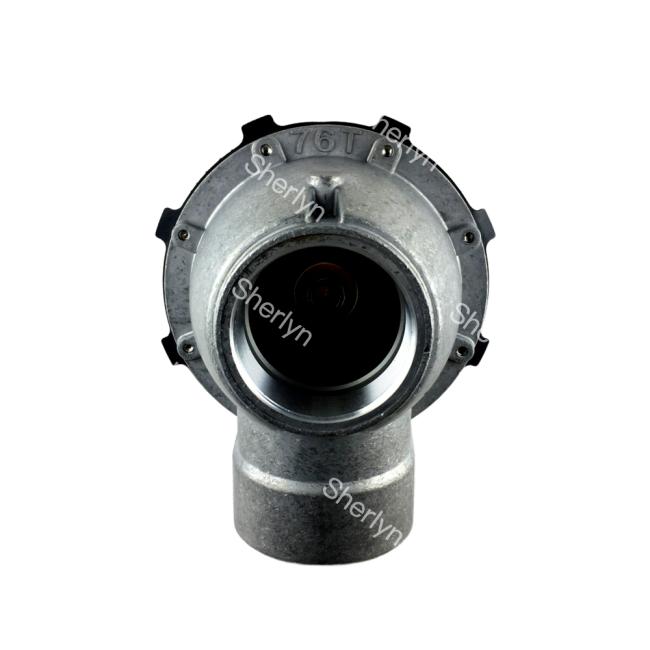

3 Inch DMF-Z-76S SBFEC Type Right Angle Solenoid Pulse Jet Valve For Dust Collector

Product Description:

The DMF series of dust collector valves is designed to suit various installation structures to meet different working conditions:

The right-angle configuration, represented by models like DMF-Z-25/40S, features a 90-degree import and export angle, compact structure, and space-saving design.

Advantages:

• Direct connection to the airbag and spray pipe for easy installation.

The direct type, such as DMF-T-20, has a 180-degree import and export angle with low airflow resistance, making it ideal for small and medium-sized dust removal units.

Parameters:

• Working pressure: 0.4~0.7MPa
• Diaphragm life: >1 million cycles

The submerged valve design, exemplified by models like DMF-Y-80 and DMF-Y-102SA, features the valve body embedded in the airbag installation for high circulation efficiency.

Typical models:

• DMF-Y-80: Suitable for scenarios with low-pressure gas sources
• DMF-Y-102SA: Offers a 45% increase in injection volume compared to conventional 3-inch valves
• DMF-Y-76S/90S: Large diameter design for applications in systems like cement kiln tail and waste incineration

Applications:

Industrial Dust Removal System
Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.
Cement Manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).
Garbage Incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.
Wood Processing/Food Chemical Industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight-through valves (DMF-T series), requiring oil-free dry air (oil content < 5ppm).

Auxiliary System
Bunker Arch Breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.
Pneumatic Conveying Blockage Removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food-grade calcium carbonate).

Support and Services:

Our Product Technical Support and Services team for Pulse Jet Valves is dedicated to providing expert assistance and solutions to ensure the optimal performance of your equipment. Whether you require troubleshooting, maintenance guidance, or product information, our team is here to help. We offer a range of services such as on-site support, remote assistance, training programs, and product documentation to meet your specific needs. Contact us to learn more about how we can support your Pulse Jet Valves.

Packing and Shipping:

Product Packaging and Shipping:

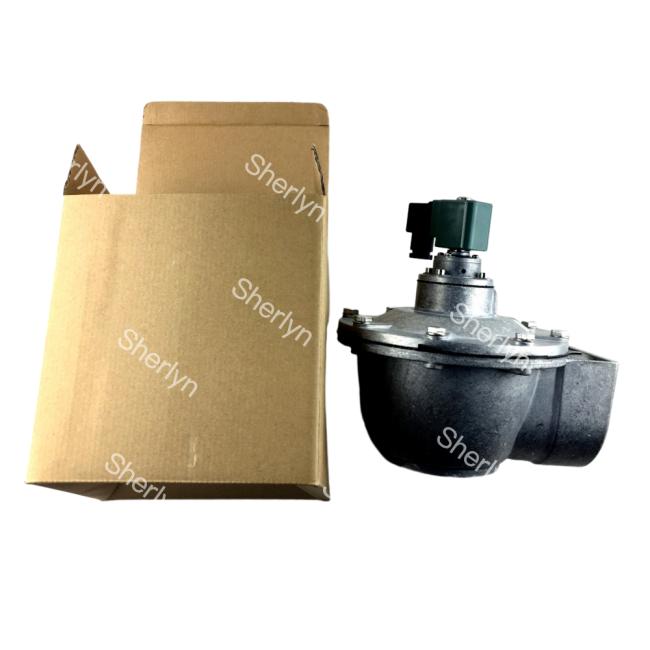

The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure they arrive at your location safely. Each valve is securely wrapped in protective packaging material to prevent any damage during transit.

For shipping, we partner with reputable carriers to deliver your order promptly. You can track your shipment using the provided tracking number to know the exact delivery date and time.
