BKQF34-A 14750667H Dump Truck Fump Truck Air Control Valve Lift Valve Manual Control Car Valve
| Model: | BKQF34-A | Power: | Hydraulic |
|---|---|---|---|
| Pressure: | Medium | Max. Press: | 12 Bar |
| Min. Press: | 5 Bar | Part No: | 14750667H |
| Highlight: |
14750667H Dump Truck Valve,Manual Dump Truck Control Valve,Dump Truck Controls Valve Switch |
||
Product Description:

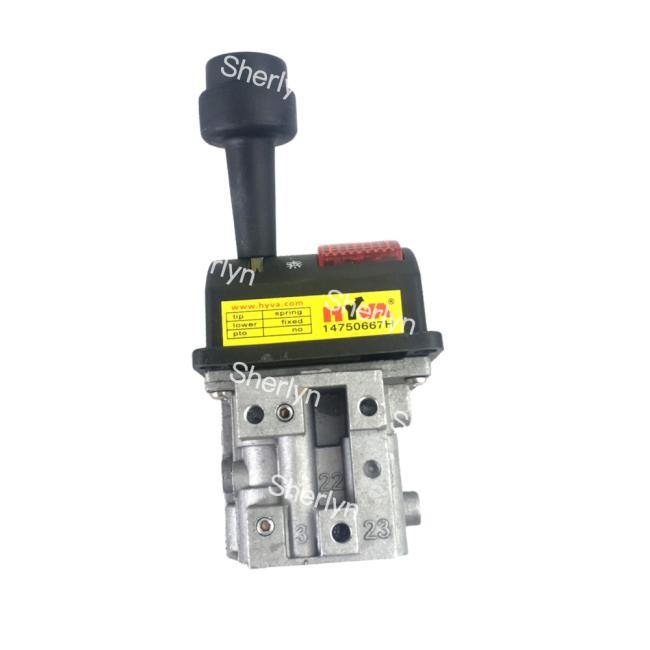

BKQF34-A Hyva 14750667H Dump Truck Manual Control Valve Lifting Switch
1 section air control range:
part no. description
147 50 665H control pneumatic - 1 - TF/LF
147 50 667H control pneumatic - 1 - TS/LF
Explanation of codes:
1 = control has 1 section
TF = lever is fixed in tipping end position
TS = lever has a spring return in tip position
LF = lever is fixed in lowering end position

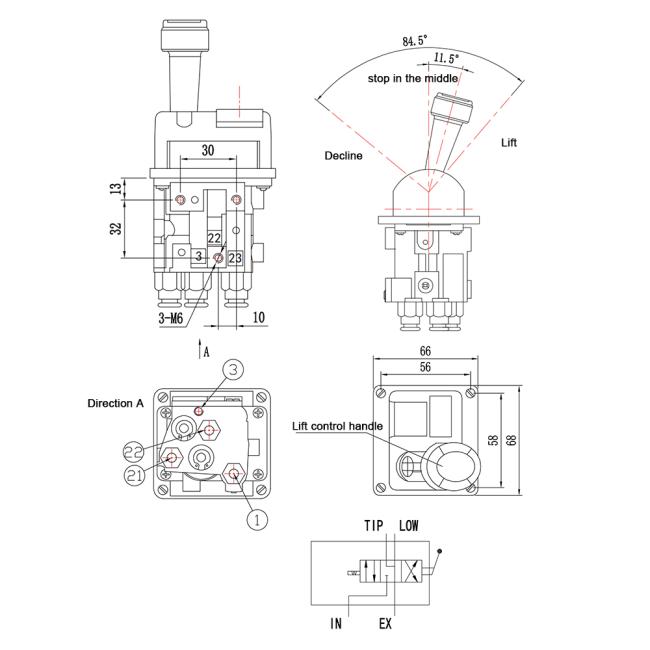

| Dimension | ||||||||
| Part no. | Description | Kit no. | Max. press. | Min. press. | Ports | |||
| 1 | 3 | 21 | 22 | |||||
| 1475665H | Tip control-air-TF/LF | 12 bar | 5 bar | G 1/8" | M5 | G 1/8" | G 1/8" | |
| 14750667H | Tip control-air-TS/LF | FB150A | 12 bar | 5 bar | G 1/8" | M5 | G 1/8" | G 1/8 |
Applications:
The dump truck/dump truck is responsible for controlling the lifting, lowering, mid stop, and floating of the cargo box. It must possess high reliability and a large flow rate to handle heavy loads and harsh working conditions.
The garbage compactor manages the compression mechanism circulation, filling device lifting, garbage bin lifting, among other functions. These actions may be intricate, requiring the valve to respond sensitively and exhibit good sealing performance.
Truck mounted cranes/lifting transport vehicles can assist in extending and retracting support legs or certain hydraulic functions of the crane.
Special devices control various sanitation vehicles, such as sprinkler trucks, suction trucks, and other equipment.
Agricultural and mining machinery are utilized for large-scale agricultural dump trucks, mining wide body dump trucks, etc. These vehicles face extreme working conditions and necessitate valves with extremely high pressure resistance and durability.
Special operation platforms manage the takeoff and landing of maintenance platforms and lifting platforms. They require stability and a safety locking function.
