Product Description:

6CV-D-N New Six Hole Dump Truck Control Valve with PTO Function Air control valve

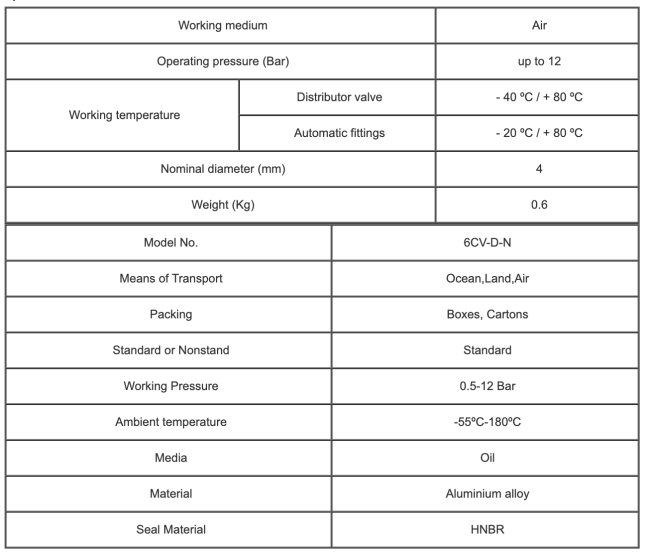

Description

1.Power: Hydraulic
2.Material: Aluminum
3.Automatically locked in stop and fall position
4. Working medium:Air
5.Operating pressure(Bar): up to 12
6.Working temperature: -40oC-/+80oC
7.Nominal diameter(mm) 4
8. Weight: 0.6kg

Applications:

The dump truck/dump truck is responsible for the control of lifting, lowering, mid-stop, and floating of the cargo box. It must possess high reliability and a large flow rate to handle heavy loads and challenging working conditions.

The garbage compactor manages tasks such as controlling the compression mechanism circulation, lifting the filling device, and raising the garbage bin. The operations can be intricate, necessitating precise valve responses and excellent sealing performance.

Truck-mounted cranes and lifting transport vehicles are often employed to support the extension and retraction of the crane's support legs or specific hydraulic functions.

Special device control is required for sanitation vehicles like sprinkler trucks, suction trucks, and other equipment.

Agricultural and mining machinery, including large-scale agricultural dump trucks and mining wide-body dump trucks, operate in extreme conditions, demanding valves with extremely high pressure resistance and durability.

The special operation platform oversees the takeoff and landing of the maintenance platform and lifting platform, mandating stability and safety locking functions.

Support and Services:

Product Technical Support and Services for the Hydraulic Control Valve:

- Troubleshooting assistance for valve operation issues

- Maintenance and repair guidance

- Installation support

- Product training and user manuals

- Warranty information and claims processing

Packing and Shipping:

Product Packaging:

The Hydraulic Control Valve is carefully packaged in a sturdy cardboard box to ensure its safety during transportation. The valve is wrapped in protective foam and sealed to prevent any damage or scratches. The packaging also includes an instruction manual and necessary installation accessories.

Shipping:

Orders for the Hydraulic Control Valve are processed within 24 hours of purchase. The product is shipped using a reliable courier service to ensure timely delivery. Customers will receive a tracking number to monitor the status of their shipment. We take great care in packaging the valve securely to minimize the risk of any damage during transit.
