Product Description:

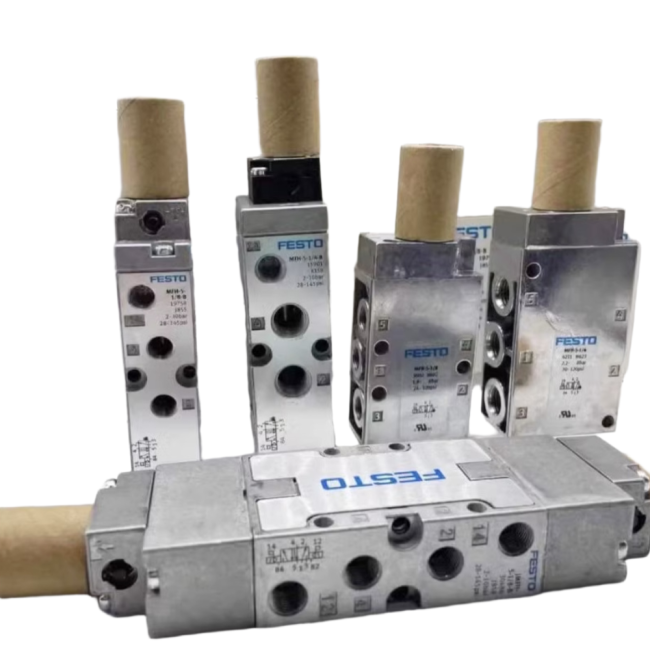

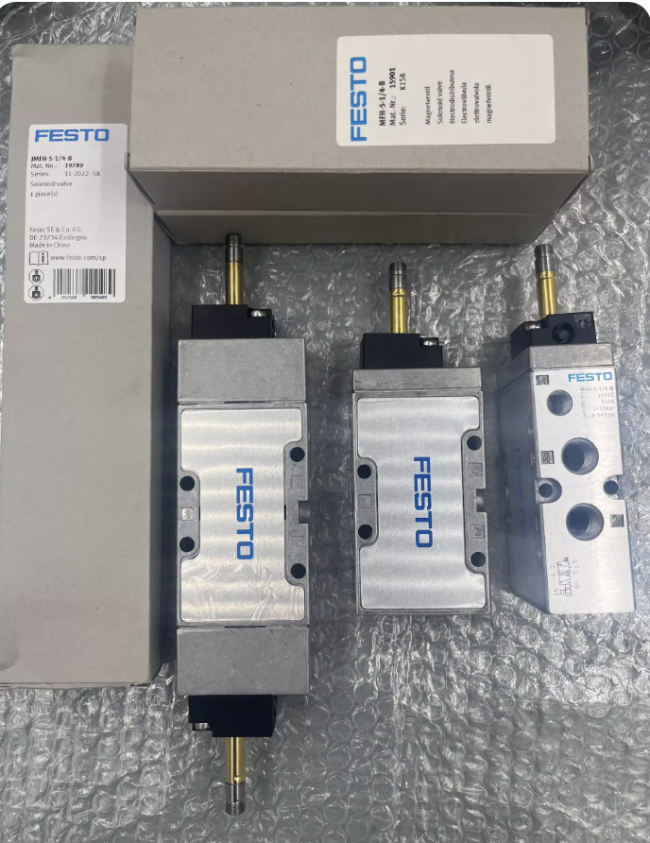

The core attributes of FESTO Tiger Valve MFH series are as follows:

• Valve function: There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

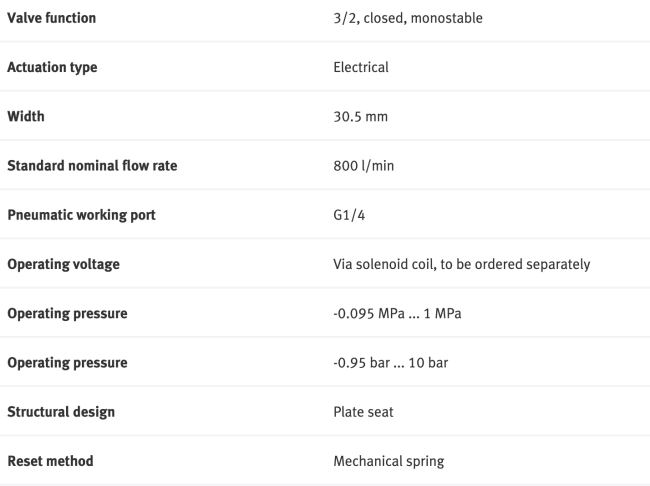

Main parameters:

• Interface and flow rate: G1/8 (500 l/min), G1/4 (800 l/min or 1300-1600 l/min), G1/2 (3700 l/min), G3/4 (7500 l/min).

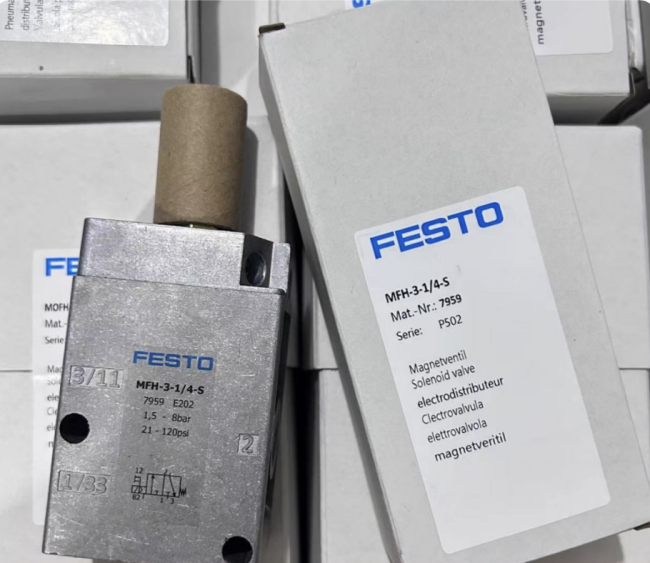

• Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
• Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
• Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
• Protection level: IP65.
• Response time: Fast, usually in milliseconds (e.g. switch time < 40ms).
• Temperature range: The medium temperature is usually -10 ° C to +60 ° C, and the ambient temperature is usually -5 ° C to +40 ° C.

Applications:

Automotive Manufacturing Industry: Pneumatic device control is crucial in welding and final assembly production lines within the automotive manufacturing sector.

Packaging Machinery: Pneumatic systems play a critical role in controlling actions like material gripping, positioning, and filling in packaging machinery operations.

Material Handling and Automated Assembly Line: Pneumatic control is key in operating actuators such as cylinders and vacuum suction cups in material handling and automated assembly line processes.

Other Industrial Fields: There are various other industrial sectors that demand high-quality pneumatic control systems to ensure efficient operations and performance.

Support and Services:

Festo Solenoid Valve Product Technical Support and Services:

- Comprehensive technical support for installation, operation, and maintenance of Festo Solenoid Valves.

- Access to online resources such as user manuals, datasheets, and troubleshooting guides.

- Repair and maintenance services provided by certified technicians.

- Training programs for customers on how to use and optimize Festo Solenoid Valves.

Packing and Shipping:

Product: Festo Solenoid Valve

Description: High-quality solenoid valve for industrial applications.

Package Contents:

• 1 x Festo Solenoid Valve
• Instruction Manual
• Installation Hardware

Shipping Information:

• Shipping Method: Standard Shipping
• Estimated Delivery: 5-7 business days
• Shipping Cost: $10.00
