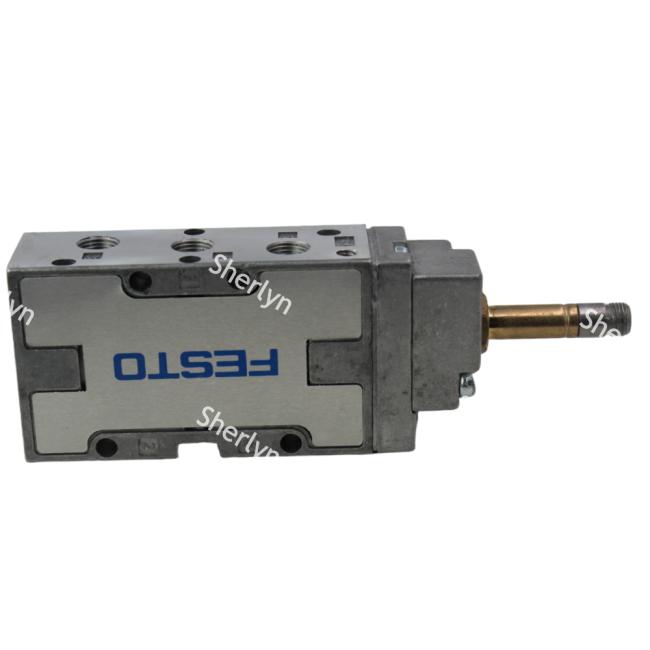

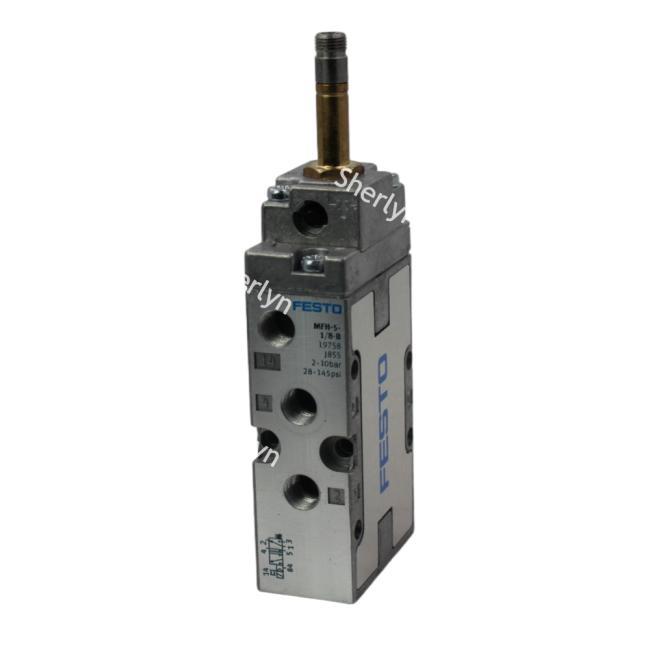

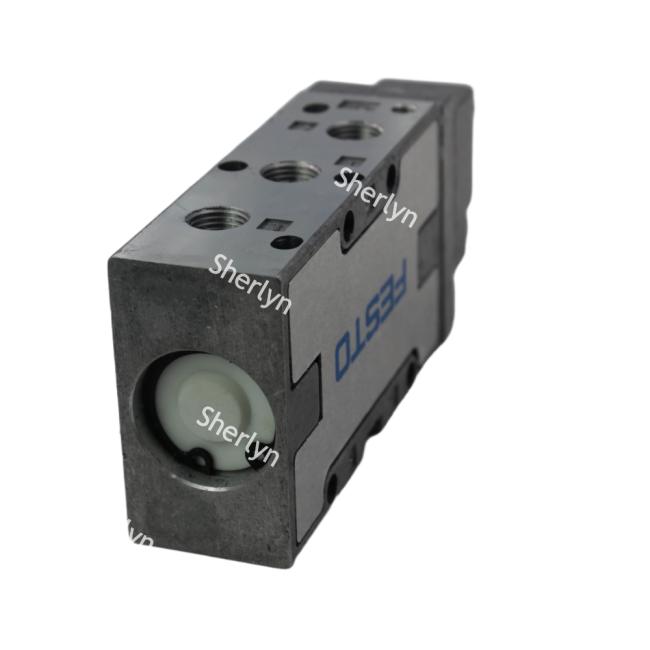

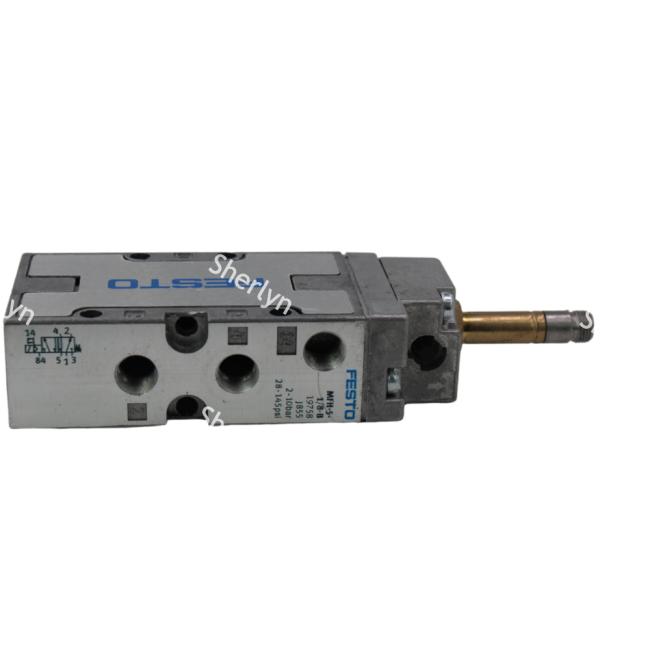

Product Description:

Valve function: The FESTO Tiger Valve MFH series offers mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:

• Interface and flow rate:
  • G1/8 (500 l/min)
  • G1/4 (800 l/min or 1300-1600 l/min)
  • G1/2 (3700 l/min)
  • G3/4 (7500 l/min)
• Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
• Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
• Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
• Protection level: IP65.
• Response time: Fast, usually in milliseconds (e.g. switch time < 40ms).
• Temperature range: The medium temperature is usually -10°C to +60°C, and the ambient temperature is usually -5°C to +40°C.

Applications:

Support and Services:

Festo provides comprehensive technical support and services for their Solenoid Valve product, aiming to assist customers in optimizing the performance and efficiency of their systems. Our team of experts is available to offer guidance on installation, troubleshooting, maintenance, and customization of the solenoid valves. Additionally, Festo's service offerings may include training programs, repair services, and product documentation to ensure the smooth operation of the solenoid valves in various applications.

Packing and Shipping:

Product Packaging:

The Festo Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. It is securely placed in a sturdy box with protective padding to prevent any damage during transit.

Shipping:

Once your order is confirmed, the Festo Solenoid Valve will be shipped promptly using a reliable courier service. You will receive a tracking number to monitor the delivery status of your package.
