Watson WPS-CA/EP102.B 4-inch submerged pulse valve diaphragm repair kit, electromagnetic valve diaphragm repair kit

Product Description:

Room temperature membranes are typically suitable for environments ranging from -25 ° C to 85 ° C. High temperature membranes can be used in the temperature range of -25 ° C to 230 ° C.

Generally speaking, the service life of Watson pulse valve diaphragm can reach 5 years or withstand 1 million operating cycles.

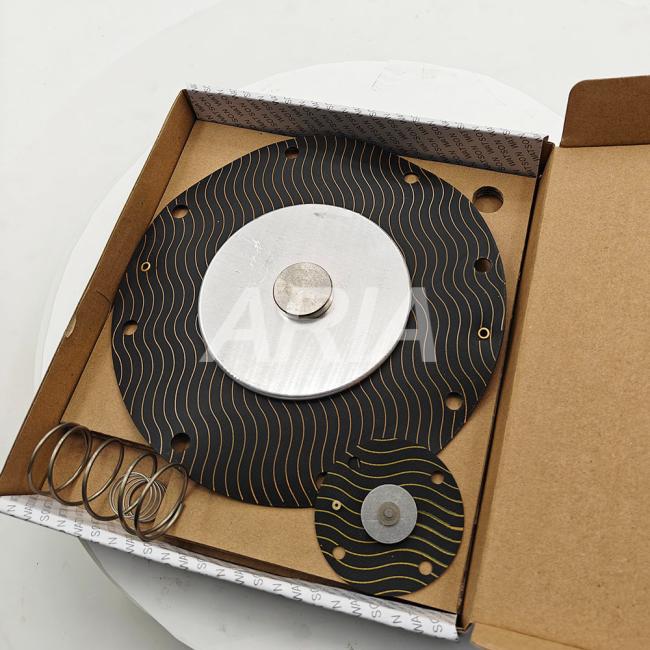

The diaphragm is usually a high-quality rubber sheet, with rivet heads installed on it to block compressed air pipelines or valve outlets. At the same time, there are bolt holes around it for fixing support, which can divide the pulse valve into two chambers, front and rear.

There are various thickness specifications, commonly including 0.3mm, 0.6mm, 1.0mm, 1.5mm, etc.

The diaphragm is equipped with a throttle hole. When the armature of the electromagnetic pilot head is engaged and the pressure relief hole is opened, the throttle hole can act as a throttle for the airflow. When the pressure relief hole is closed, it can quickly fill the cavity of the pulse valve with pressure gas, thereby causing the diaphragm to close the channel and stop the pulse valve from blowing.

Technical Parameters:

Applications:

The Pulse Valve Diaphragm, a crucial component in pulse valve systems, is a versatile product offered by WATSON. With CE certification, a minimum order quantity of 1, and packaging in cartons, this diaphragm ensures reliable performance in various industrial applications. The diaphragm repair kit includes materials such as TPE, NBR, EPDM, and FKM, allowing for flexibility and compatibility with different working environments. The seat materials options of nylon, rubber, and PTFE further enhance the product's adaptability.

The Pulse Valve Diaphragm by WATSON is suitable for a wide range of product application occasions and scenarios. It is ideal for industries requiring efficient dust removal, such as cement plants, power plants, and steel mills. The diaphragm's high-quality construction and precision engineering make it a dependable choice for demanding environments where pulse valves are essential for optimal operation.

With a supply ability of 5000 pieces per month, customers can rely on WATSON for consistent availability of the Pulse Valve Diaphragm. The price is negotiable, making it a cost-effective solution for businesses of all sizes. The flexible payment terms of T/T, Western Union, and Paypal offer convenience and ease of transaction.

The 3'' port size of the diaphragm caters to various valve configurations, ensuring compatibility with different systems. Additionally, the quick delivery time of 1-7 workdays after payment enables customers to minimize downtime and maximize productivity. Whether for routine maintenance or emergency replacements, the Pulse Valve Diaphragm from WATSON is a reliable choice for efficient and effective operation.

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm designed for pulse valves, ensuring efficient operation and longevity.

Package Contents:

• 1 Pulse Valve Diaphragm
• Installation Instructions

Shipping Information:

• Shipping Method: Standard Shipping
• Shipping Time: 3-5 business days
• Shipping Cost: $5.99
