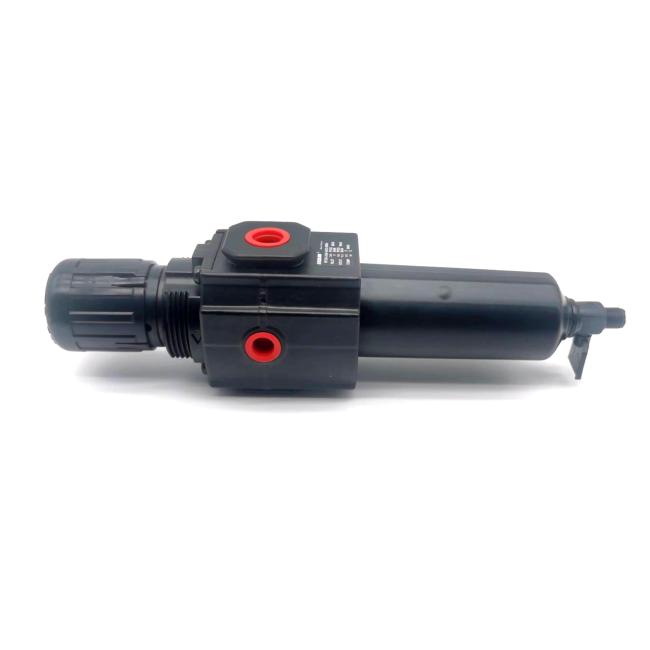

B74G-4AK-AD3-RMN Excelon Filter/regulator 1/2 PTF 0.3-10 Bar 40µm Automatic Drain Without Gauge G1/2 NORGREN

Product Description:

The IMI Norgren Excelon Modular Air Preparation Units, such as the B72G/B73G/B74G, R72G/R73G/R74G, and F72G series, incorporate filtration, pressure regulation, and lubrication functions into integrated 3-in-1 components. These units are specifically engineered for use in industrial compressed air systems. Their primary functions include efficient removal of moisture, oil mist, and particulate contaminants, stabilization of output pressure, and provision of lubrication protection for pneumatic components.

Featuring a modular design, the Excelon units offer flexibility as they can be utilized as standalone units or combined with other Excelon components for enhanced versatility. Manufactured mostly in Mexico and Germany, these units are designed to meet ISO standard thread ports, such as ISO Rc Taper and ISO-G Parallel. They operate within a pressure range of 0.3 to 17 bar.

Filter elements for the Excelon units are available in various grades, from 0.01μm for oil removal to 40μm for general purposes. This wide range of filter options makes them suitable for use in extreme temperature environments spanning from -40°C to +80°C.

Technical Parameters:

Applications:

Industrial Manufacturing & Automation
• Purification and pressure regulation of compressed air for pneumatic tools, cylinders, and valves, used in automotive assembly lines and machining centers.

Transportation Equipment
• Air preparation systems for locomotives (e.g., B74G series), ensuring air purity for braking and control systems.

⚗️ Chemical & Energy Sectors
• Corrosion-resistant materials (e.g., Aluminum) are suitable for high-humidity, high-temperature environments in chemical plants and power stations, handling oily compressed air.

Food, Pharmaceutical & Specialized Industries
• Oil-removal filters (0.01μm grade) that meet hygiene standards, used in food packaging and pharmaceutical production equipment to prevent oil contamination.

General Pneumatic Maintenance
• Final-point air treatment for maintenance workshops and laboratories. Lubricators (e.g., BL73 series) extend the service life of pneumatic components.
