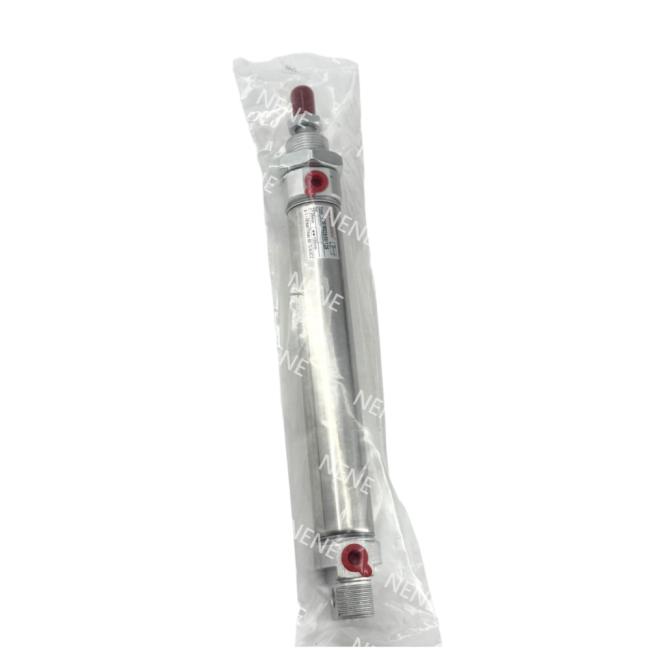

RM/28010/M/50 Ø10×50mm Magnetic Roundline Cylinder IMI NORGREN Single Acting Compact Automation Cylinder
Product Description:
The RM/28000/M series consists of compact single-acting Roundline cylinders featuring a spring return mechanism and a magnetic piston as a standard component. These cylinders are designed to deliver reliable performance in various automation settings.
Constructed with a stainless-steel tube and clear anodised aluminium end caps, they offer excellent corrosion resistance and durability. This robust build ensures high strength while maintaining a lightweight design suitable for demanding environments.
Additionally, the RM/28000/M range is compatible with the compact ISO 6432 standard, making it an ideal choice for applications requiring tight-space pneumatic positioning and short-stroke automation tasks. Their compact size combined with efficient operation makes them well-suited for precision engineering needs.
Features:
The cylinder features a compact ISO 6432 form factor, making it easy to integrate with standard fittings. Its small size allows for efficient installation in various applications without requiring extensive modifications.
Constructed from corrosion-resistant materials, this cylinder is designed to withstand harsh and challenging environments. This durability ensures reliable performance even in demanding conditions where exposure to moisture or chemicals is common.
Equipped with a magnetic piston, the cylinder enables simplified limit sensing and automation feedback. This feature enhances operational accuracy and allows seamless integration with control systems for improved automation processes.
Additionally, the cylinder boasts a robust mechanical construction, including double-crimped end caps that increase its strength and longevity. This sturdy design contributes to reliable performance over extended periods of use.
Technical Parameters:
| Item | Specification |
| Bore (mm) | 10 / 12 / 16 / 20 / 25 |
| Standard strokes (mm) | 10, 25, 50 |
| Maximum stroke (mm) | 50 |
| Piston rod Ø (mm) | 4 (Ø10), 6 (Ø12, Ø16), 8 (Ø20), 10 (Ø25) |
| Port size | M5 (Ø10/12/16), G1/8 (Ø20/25) |
| Medium | Compressed air, filtered, lubricated or non-lubricated |
| Operating pressure | 2 to 10 bar (29 to 145 psi) |
| Operating temperature | -10°C to +80°C (14°F to 176°F) |
| Operation | Single-acting, spring return, magnetic piston |
| Cushioning | Buffer cushioning |
| Barrel material | Stainless steel |
| End cover material | Clear anodised aluminium alloy |
| Piston rod material | Stainless steel |
| Buffer material | Polyurethane |
| Seals | Nitrile rubber (NBR) |
| End cap design | Double crimped high-strength end caps |
| Standard accessories | Nose mounting nut, piston rod locknut |
| Optional accessories | Reed switch with integral cable, switch mounting brackets, straight and elbow fittings, mounting hardware |
| Theoretical thrust @ 6 bar (N) | Ø10: 40.7 ; Ø12: 57.7 ; Ø16: 102 ; Ø20: 165 ; Ø25: 260 |
| Return spring force F1 @ 6 bar (N) | Ø10: 3.7 ; Ø12: 4.8 ; Ø16: 10.5 ; Ø20: 16.1 ; Ø25: 21.6 |
| Weight & dimensions | See full datasheet dimensions table |
| Variants | Central rear port, flat rear cover, multiple mounting options |
| Service kits | Not available |
| Load / deflection data | Refer to load and deflection charts in datasheet |
Applications:
Automated assembly and indexing processes involve small-stroke actuation to ensure precise and efficient operations. These systems are designed to handle repetitive tasks with high accuracy and speed.
In the field of electronic component handling, pick-and-place applications benefit from mechanisms that support short travel distances. This allows for quick and reliable positioning of delicate components during manufacturing.
Packaging and machine tending tasks often demand compact and repeatable motion solutions. Such requirements ensure consistent performance and optimal use of space within automated environments.
Additionally, applications that require integrated position sensing rely on advanced technology to monitor and control movement precisely, enhancing the overall system reliability and accuracy.
