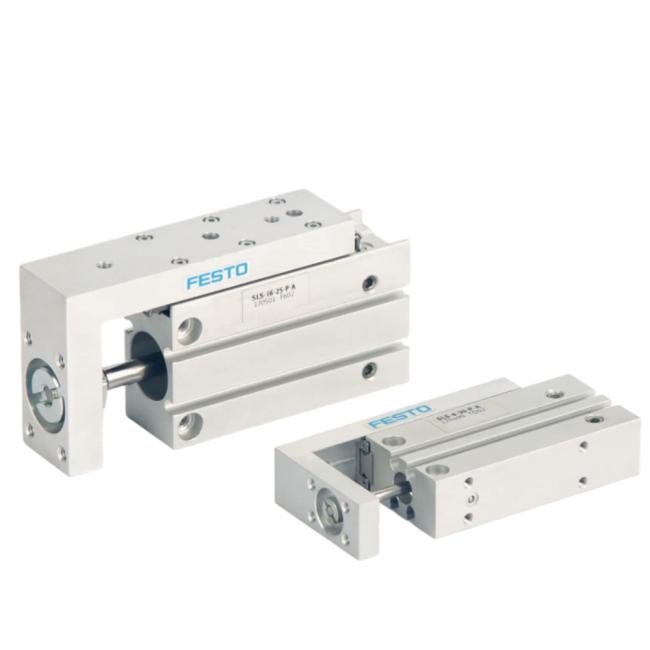

Compact SLS-6-25-P-A 170489 FESTO Double Acting Ball Cage Guide Slide Cylinder Suitable For Cleanroom Medical Equipment

Product Description:

The FESTO SLS Series represents the original slim double-acting mini slide cylinders developed by Festo. This series offers a range of three different bore sizes: 6mm, 10mm, and 16mm. Users can select stroke lengths varying from 5mm up to 30mm to suit their specific application requirements.

Each cylinder in the series features an integrated ball cage precision linear guide, ensuring smooth and accurate motion. Additionally, they come with built-in elastic end cushioning on both ends, which helps to absorb impact and extend the service life of the cylinder.

The integrated yoke slide is equipped with an embedded permanent magnet, allowing for reliable position feedback when used with magnetic proximity sensors. This feature enhances the precision and control of the unit during operation.

With a slim and compact design, the cylinders include standard M5 air ports and offer three universal mounting surfaces located on the housing, slide, and yoke plate. This design makes them ideal as standard pneumatic actuators for micro precision linear motion tasks, especially in miniature automation environments where space is limited.

Features:

The product offers a comprehensive range of specifications, featuring bore sizes of 6mm, 10mm, and 16mm. Additionally, it provides flexible stroke options including 5mm, 10mm, 15mm, 20mm, 25mm, and 30mm to suit various application needs.

Equipped with standard M5 threaded air ports, the design ensures a neat and organized tubing layout. The housing is crafted from aluminum alloy, while the guide shaft is made of stainless steel, delivering excellent resistance to both wear and corrosion for enhanced durability.

The device incorporates a rigid ball cage linear guide that offers superior resistance against side loads and torque. It achieves a high level of positioning accuracy with ±0.01mm repeatability, ensuring stable and precise motion control during operation.

A built-in permanent magnet is integrated into the yoke slide, making it compatible with magnetic proximity switches. This feature allows for accurate detection of the piston position without the need for additional magnetic accessories, simplifying the overall system design.

Technical Parameters:

Applications:

3C Electronics Automation involves a variety of processes such as transferring, feeding, positioning, material stopping, and micro pressing. These operations are specifically designed for handling tiny components in mobile phones and chips, ensuring precision and efficiency in electronic manufacturing.

In the field of Semiconductor Precision Testing, advanced modules are utilized for probe lifting, fine lens adjustment, wafer sorting, and micro component feeding. These technologies contribute to the high accuracy required in semiconductor device inspections and testing procedures.

Medical Device Cleanroom Lines focus on the meticulous delivery of micro reagents, precise positioning of mini fixtures, and sorting drives for medical consumables. These automated solutions help maintain sterile conditions and enhance productivity in medical device manufacturing.

Compact Food Packaging Equipment is engineered to optimize processes such as material separation and stopping, sealing assistance, and sorting and feeding of lightweight small parts. This equipment supports efficient packaging operations while maintaining product integrity.

Support and Services:

Our Piston Pneumatic Cylinders are designed for reliable performance and durability in a wide range of industrial applications. To ensure optimal operation, please refer to the installation guidelines and maintenance procedures outlined in the product manual.

For technical support, our team is available to assist with troubleshooting, replacement parts, and product specifications. We recommend regular inspection of seals and piston rods to prevent leaks and ensure smooth cylinder movement.

When installing the cylinder, ensure proper alignment and secure mounting to avoid undue stress and wear. Use compatible pneumatic fittings and maintain clean, dry compressed air supply to enhance the cylinder’s lifespan.

Should you require customized solutions or additional accessories, our support staff can provide recommendations tailored to your specific application needs.

We are committed to delivering quality service and support to maximize the performance and longevity of your Piston Pneumatic Cylinder.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-static foam and placed in a custom-fitted cardboard box to prevent any damage from shocks or vibrations. The packaging is clearly labeled with handling instructions and product details for easy identification.

For shipping, we use reliable carriers that offer tracking and insurance options to guarantee timely and safe delivery. Orders are processed promptly, and customers receive a confirmation email with tracking information once the product has been dispatched. We also offer expedited shipping options for urgent requirements.

All shipments comply with international shipping regulations and are packaged to withstand various environmental conditions, ensuring the Piston Pneumatic Cylinder arrives in perfect working condition.
