SMC VXF Series Pulse Valve 3/4 & 1 Inch VXF2150-06 VXF2160-10 + Matching Diaphragm Membrane Dust Collector Parts 2/2 NC NBR Seal
Product Description:
The SMC VXF Series are high-performance solenoid pulse jet diaphragm valves engineered specifically for reverse pulse filter cleaning in industrial dust collectors and baghouse systems. Acting as the compressed air "switch" in pulse bag dust collector systems, these valves are controlled by electric signals from a pulse controller to deliver instantaneous, high-energy air bursts that create shock waves to clean filter bags. The main valve opens and closes in as fast as 50 milliseconds, ensuring rapid and efficient filter cleaning.

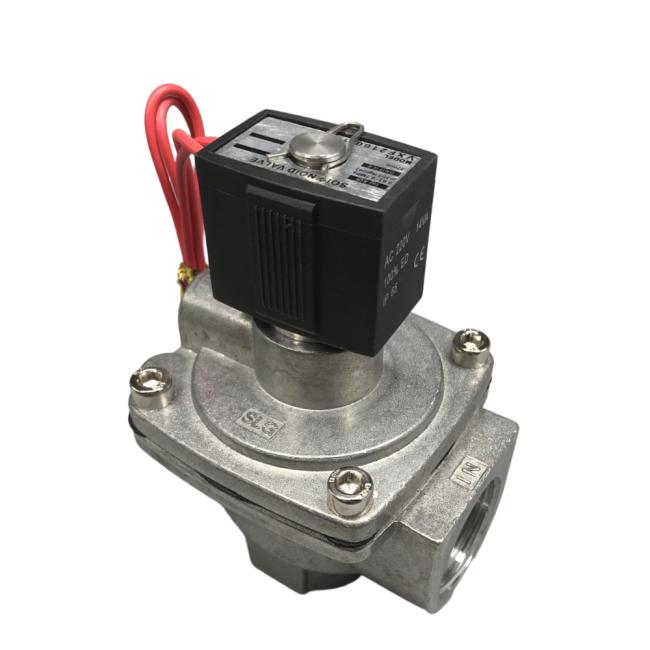

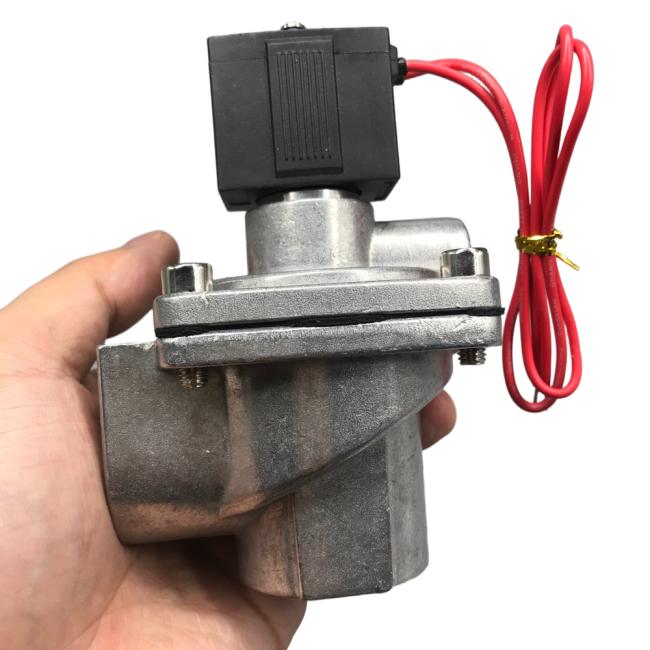

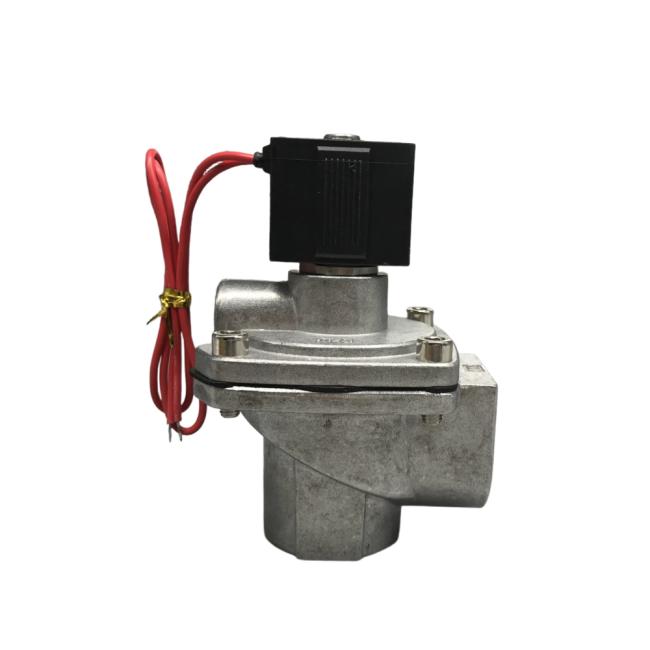

The series includes VXF2150-06 with a 3/4" G-thread port and VXF2160-10 with a 1" G-thread port. Both models are 2/2-way normally closed valves with a pilot-operated diaphragm design. The valve body is constructed from die-cast aluminum alloy (ADC-12), offering lightweight durability and corrosion resistance. The diaphragm is a replaceable composite design made of NBR with nylon fabric reinforcement for extended service life.
Trusted in industrial dust collection applications worldwide, SMC VXF Series valves deliver reliable, high-flow pulse jets for efficient dust removal and extended filter bag life.
Features:
-
Pilot-Operated Diaphragm Design – Provides reliable high-flow performance with rapid response
-
Fast Response Time – Main valve opens and closes in approximately 50 milliseconds for efficient pulse cleaning
-
2/2-Way Normally Closed Function – Default-closed design ensures safe operation
-
Durable Aluminum Alloy Body – Die-cast ADC-12 construction for lightweight strength and corrosion resistance
-

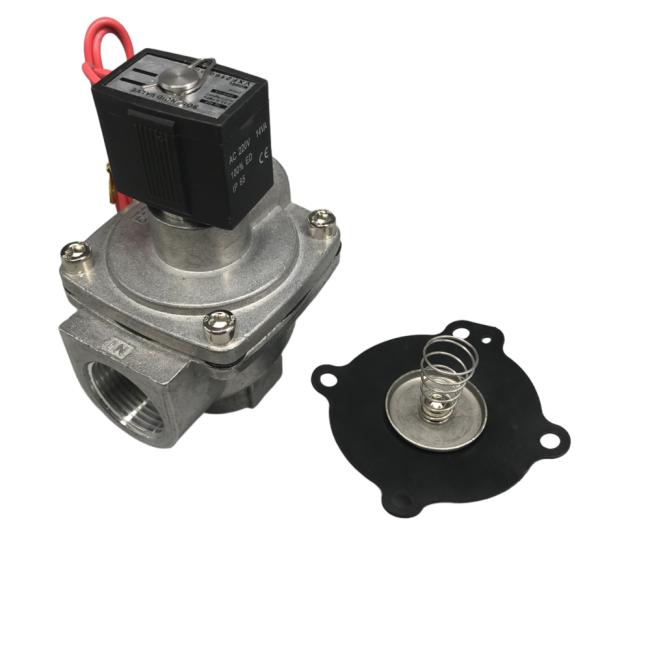

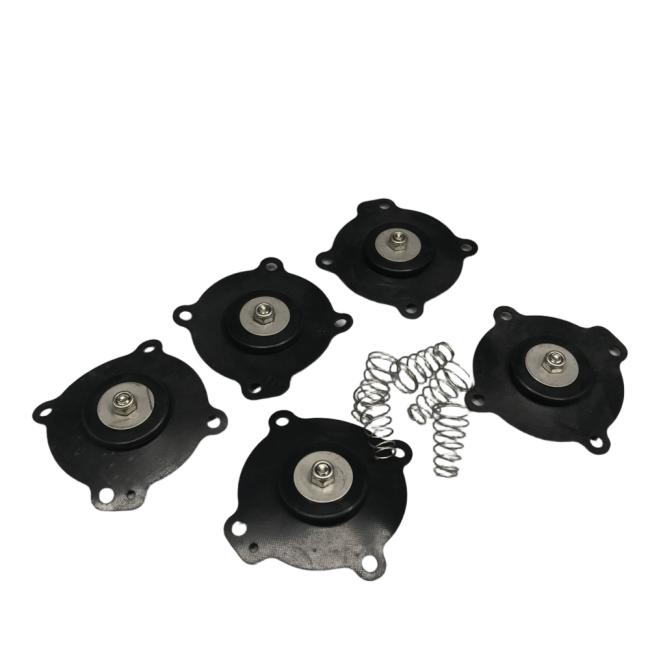

Replaceable Composite Diaphragm – NBR with nylon fabric reinforcement for long service life and easy maintenance
-
Threaded Port Connections – G3/4" (VXF2150-06) and G1" (VXF2160-10) for easy system integration
-
Wide Operating Pressure Range – Maximum operating differential pressure of 1.0 MPa; minimum of 0.03 MPa
-
Multiple Voltage Options – Supports DC12V, DC24V, AC24V, AC110V, AC220V, and AC380V (50/60Hz)
-
High Flow Capacity – VXF2150-06: Cv 9.5, effective area 170mm²; VXF2160-10: Cv 18.5, effective area 330mm²
-
Integrated Exhaust Port – Rc(PT)1/4 exhaust orifice for easy connection
-
IP65 Protection Class – Weather-resistant construction suitable for demanding industrial environments
-
Wide Temperature Range – Operating temperature from -10°C to +100°C
Technical Parameters:
| Port Size | G3/4", G1" |
| Operation | Pilot-Operated Diaphragm |
| Body Material | Die-cast Aluminium Alloy |
| Diaphragm Materials | NBR with Nylon Fabric |
| Valve Type | 2/2 NC |
| Temperature | -10°C to +100°C |
Applications:
-
Pulse Jet Baghouse Dust Collectors – Reverse pulse cleaning of fabric filter bags in industrial dust collection systems
-
Cartridge Filter Systems – Cleaning of pleated cartridge filters in various industries
-
Cement Industry – Dust control in kilns, mills, crushers, and material handling systems
-
Steel & Metallurgy – Furnace fume extraction, blast furnace dust control, and metal processing
-
Power Generation – Fly ash collection and boiler dust control systems
-
Chemical Processing – Powder handling and process dust collection in chemical plants
-
Mining & Quarrying – Dust control in crushing, grinding, and material handling operations
-
Food & Grain Processing – Dust extraction in milling, conveying, and processing facilities
-
Woodworking & Paper – Dust extraction in wood processing, paper mills, and board manufacturing
-
General Industrial Filtration – Various air filtration and dust control applications across industries
