Outdoor IP65 Aluminum LED Display Ultra Thin Light Fixed Pantalla LED Exterior All Aluminum Panel Big AD Display Screen

Price Negotiable
Price: Negotiable
MOQ: 1sqm
Delivery Time: 5-8 working days
Brand: CONWIN
Product Description

IP65 Outdoor Aluminum LED Screen: Lightweight & Rust-Free for Easy Installation



Outdoor A Series Aluminum LED Display



Feature Description


- High brightness and super energy saving
- Ultra-light and ultra-thin
- Simple structure, full wireless, hard link, front and rear maintenance
- Good heat dissipation, no need for air conditioning
- V0 Fire-Retardant Material
- Modular aluminum bottom shell, flame retardant and fireproof, waterproof grade IP65













Save 30% Energy – Dual power supply + optimized circuits. Our outdoor aluminum LED display delivers exceptional brightness while consuming up to 30% less energy. Lower bills, greener operation, zero compromise.

Outdoor A Series Aluminum LED Display

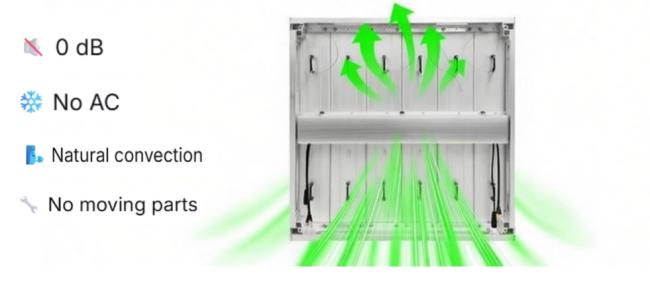

Fanless Self-Cooling Modular design + silent thermal convection. No fans, no AC, no noise. Runs cool and quiet naturally – saving you energy and maintenance costs.

Outdoor A Series Aluminum LED Display

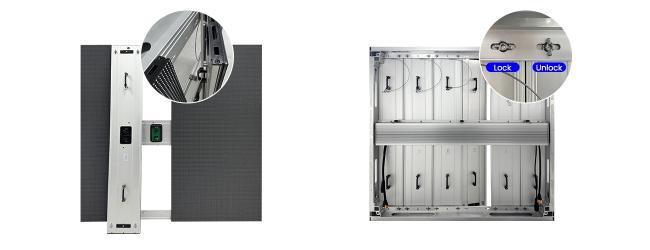

Front & Rear Maintenance – Service from either side. Simplify operation, slash installation complexity, and cut maintenance time in half. Works anywhere – even in tight spaces.

Outdoor A Series Aluminum LED Display

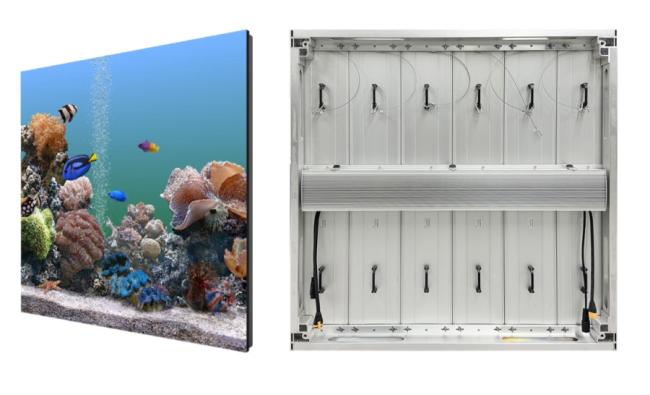

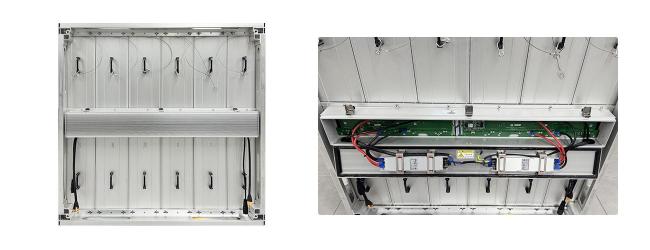

Integrated Power Box All-in-one design. Hidden interfaces. Zero cable clutter. Clean front, clean back, clean install. Professional appearance with professional protection.

Outdoor A Series Aluminum LED Display

IP65 Dustproof & Waterproof – Front & Rear

<h2 color:#333333;line-height:1;font-size:0.48rem;resize:none;position:relative;text-align:center;border-width:medium;border-style:none;border-color:currentcolor;border-image:initial;white-space:normal;background-color:#ffffff;"="" style="margin: 0px 0px 0.5rem; padding: 0px 0px 10px; box-sizing: border-box;">

Ultra-Lightweight – <26KG/m². 40% lighter than competitors. Less structural stress. Lower shipping costs. Faster installation. Light weight, heavy performance.

Specifications



Cabinet size 640(W)*640(H)*80mm(T) 960(W)*640(H)*80mm(T) 960(W)*960(H)*80mm(T)
Cabinet resolution 256*256dots 208*208dots 384*256dots 312*208dots 240*240dots 192*192dots 144*144dots 120*120dots 96*96dots
Pixel pitch 2.5mm 3.076mm 2.5mm 3.076mm 4mm 5mm 6.67mm 8mm 10mm
Pixel sensity 160000dots/m² 105625dots/m² 160000dots/m² 105625dots/m² 62500dots/m² 40000dots/m² 22500dots/m² 15625dots/m² 10000dots/m²
LED specification 1415 SMD 1415 SMD 1415 SMD 1415 SMD 1921 SMD 1921 SMD 2727 SMD 2727 SMD 2727 SMD
Module size 160*640mm 160*640mm 160*640mm 160*640mm 160*960mm 160*960mm 160*960mm 160*960mm 160*960mm
Unit resolution 64*256dots 52*208dots 64*256dots 52*208dots 40*240dots 32*192dots 24*144dots 20*120dots 16*96dots
Weight 13kg±2kg 13kg±2kg 19kg±2kg 19kg±2kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg 21.5kg±2 kg
Material Aluminum
Maintenance mode Front and rear maintenance
Best viewing distance ≥2.5m ≥3.076m ≥2.5m ≥3.076m ≥4m ≥5m ≥6.67m ≥8m ≥10m
Pixel configuration 1R1G1B
Best viewing angle 120°(H)/120°(V)
Brightness of while balance ≥4500cd/㎡ ≥6000cd/㎡
Color temperature 3500-9300K adjustable
Correcting Support correction
Deviation ≤3%
Homogeneity ≥97%
Max Power consumption 750W/㎡
Average power consumption 250W/㎡
Drive type 1/16 Scanning 1/13 Scanning 1/16 Scanning 1/13 Scanning 1/10 Scanning 1/8 Scanning 1/6 Scanning 1/5 Scanning 1/2 Scanning
Driving device IC Constant Current driver
Working voltage AC200-240V
operating environment Outdoor
Refresh frequency ≥3840Hz
Framing frequency 50/60Hz
IP Grade IP65
Storage temperature -40℃~60℃
Working temperature -20℃~50℃
Operation humidity 10%~90%
MTBF ≥5000 hours
Life span ≥50000 hours
Blind spot rate ≤1/10000
