200 Liters Horizontal Beads Mill Impeller for Zirconium/Zirconia/Zircon Beads Grinding
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size.
ZM200-E horizontal bead mill is 200 liters wet grinding machine for paints, inks, pigments and agrochemicals.
Because of different applications, there are different options materials inside the grinding chamber.
Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Applications:
![200 Liters Horizontal Beads Mill Impeller China]()
Technical Data:

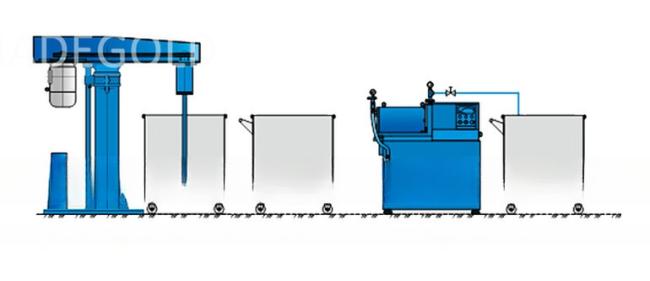

Production Line:
![200 Liters Horizontal Beads Mill Impeller China]()
Exhibition:
![200 Liters Horizontal Beads Mill Impeller China]()
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size.
ZM200-E horizontal bead mill is 200 liters wet grinding machine for paints, inks, pigments and agrochemicals.
Because of different applications, there are different options materials inside the grinding chamber.
Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Applications:
Technical Data:
| ZM-E Series | ZM20-E | ZM50-E | ZM100-E | ZM200-E | ZM300-E | ZM500-E | ZM1000-E |
|---|---|---|---|---|---|---|---|
| Grinding chamber volume (l) | 20 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Batch size (l) | 100-500 | 200-1000 | 500-2500 | 1000-10000 | >2000 | ||
| Drive (kW) | 18.5-22 | 37-45 | 55-75 | 75-90 | 90-110 | 160-200 | 315 |
| Grinding shaft rotary speed (r/min) | 1200 | 800 | 650 | 500 | 460 | 350 | 340 |
| Length (mm) | 1670 | 1970 | 2750 | 2950 | 3450 | 3350 | 6650 |
| Width (mm) | 1050 | 1150 | 1200 | 1200 | 1300 | 1500 | 1450 |
| Height (mm) | 1565 | 2000 | 2200 | 2200 | 2250 | 2700 | 2850 |
| Net weight (kg) | 750 | 1500 | 3500 | 3700 | 4700 | 8000 | 12000 |
| Ex proof Type | Ex proof / Non Ex proof | ||||||
| Seal Type | Single Mechanical Seal / Double Mechanical Seal | ||||||
| Inner Grinding Cylinder Material | SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU | ||||||
| Grinding Disc Material | SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU | ||||||
| Pump Type | Diaphragm pump / Gear Pump / Screw pump | ||||||
| Mill Speed Adjustment Way | With inverter / Without inverter | ||||||
| Note: Technical data are different if there are some customized constructions. We'd like to send you the suitable model sand mills for your production, please feel free to contact with us. |
|||||||
Production Line:
Exhibition:
