Zirconia Lab Bead Mill Chemical Horizontal Grinding Mill ZM0.3
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Zirconia Lab Bead Mill Chemical Horizontal Grinding Mill ZM0.3
Zirconia Beads Lab Horizontal Grinding Mill ZM0.3 with Zircon Beads and Zirconium Beads
Lab horizontal bead mill- Model (ZM0.3)
Construction:
1. Facile structure is great practicably.
2. Having with water-cooling clamp sheath.
3. Automatic circular grinding structure, no need pump and valve.
4. Transducer adjusts the rotor speed of main machine, which is much easier to control the whole effect.
5. Simply operation, convenient and simply to remove the grinding groove to wash; 6. Swift changing the lab prescription is available.
7. Cooling and heating procedures according to different requirements is available.
8. Non Ex proof.
Application:
Testing for raw materials, development of new prescription and evaluation of grinding mediums.
coatings, inks, pigments, colorants, cosmetics, pesticides, pharmaceuticals, etc
Remark:
There is the other model lab bead mill called as "ZM0.3B" with Ex proof.
Any opinions and questions are great appreciated here all way.
Introduction:
Our 0.3L lab horizontal bead mills are the wet grinding machine with continuous production for R&D.
Models: ZM0.3, which is suitable for water based formulations.
ZM0.3B, which is suitable for solvent based formulations.
Both lab use horizontal bead mills are the discs types wet grinding mill. The operation is very simple because there is self-circulated system, which doesn't need any additional transfer pump. Users dosage the formulations into them, run the mills and then waiting for the result.
Application:
Testing for raw materials, development of new prescription and evaluation of grinding mediums.
coatings, inks, pigments, colorants, cosmetics, pesticides, agrochemicals, pharmaceuticals, etc.
Technical Data:
| Effective grinding volume | 0.3 |
| Main motor power (ABB motor) | 0.75kW |
| Grinding shaft rotary speed (Siemens AC drive) | 0-1500r/min |
| Eestimated productivity | lab use |
| Net weight | 50kg |
| Dimensions(L*W*H) | 640 x 410 x 485 |

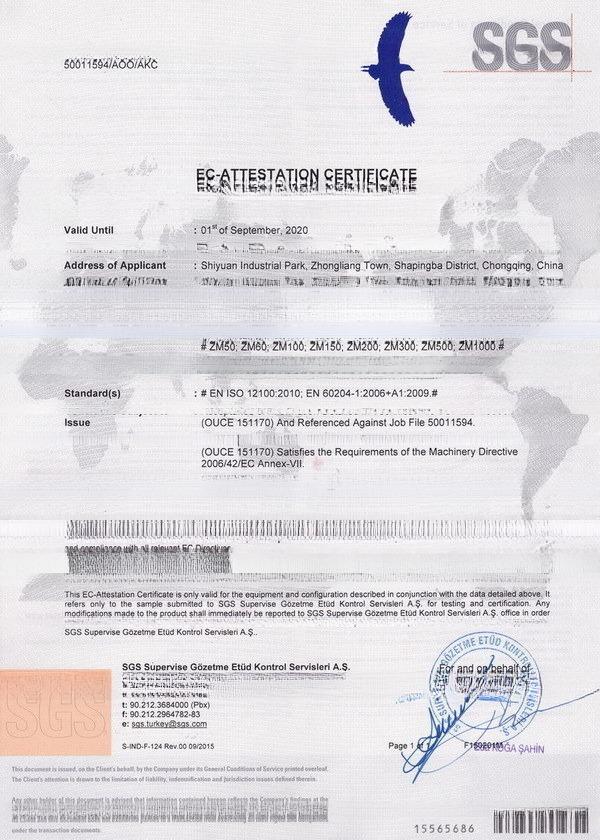

CE certificate:
