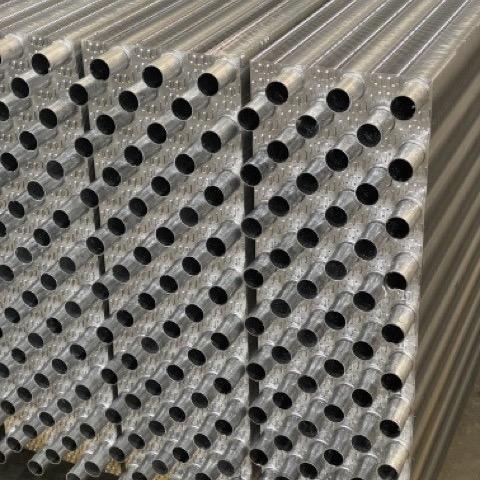

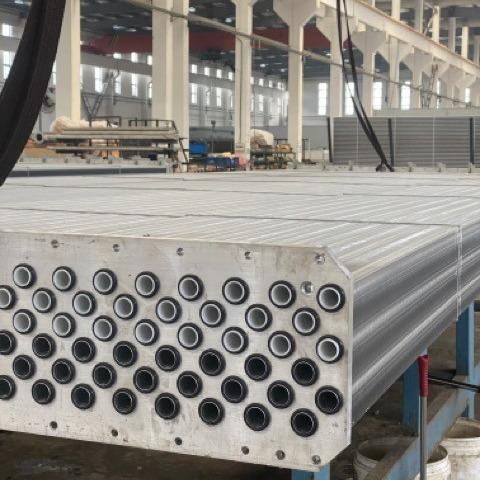

1050 D22 Water Cooling Tower Precision Aluminum Tube Can Be Customized Aluminum Tube
1050 D22 Water Cooling Tower Precision Aluminum Tube Can Be Customized Aluminum Tube
Product Description:
We provide 1 series of pure aluminum and 3 series of corrosion-resistant aluminum tube, can also be customized according to customer needs of non-standard specifications of the heat exchange equipment aluminum tube.
Aluminum, silver-white, in humid air can form a layer of metal corrosion prevention of the oxide film, the relative density 2.7 g/cm3, melting point 660 ° C, boiling point 2327 ° C, high specific strength, good electrical and thermal conductivity, high reflectivity and oxidation resistance.
We passivate and anti-corrosion treatment on the inner and outer surfaces of aluminum tubes, and add anti-corrosion coating on the inner and outer surfaces, suitable for the use of large-scale heat exchange equipment.
Features:
Aluminum is lighter in weight, less springback in forming, higher in strength, close to or better than high-quality steel, good in plasticity, and easier to control than stainless steel when the product is more complex in forming, excellent electrical conductivity, thermal conductivity and corrosion resistance.
The first series of aluminum has good formability and surface treatment, and its corrosion resistance is the best among aluminum alloys. The lower the strength, the higher the purity, the lower the strength.
1050 aluminum alloy has good formability and surface treatment, and its corrosion resistance is the best among aluminum alloys. Because it is pure aluminum, its strength is lower, the higher the purity of its strength is lower.
The company is committed to the global refrigeration and heating and new energy fields to provide high-precision high-corrosion aluminum-based new materials and components. The company always adhere to scientific and technological innovation, deep cultivation of industrial cutting-edge technology, and strive to industry customers and partners continue to enable, win-win.
Technical Parameters:
| Main Size) | State | Outside Diameter /mm | Wall Thickness /mm | Length /m | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm | ||
| Model Number | |||||||||
| Main Size | |||||||||
| Series 1 | 1050 1060 1070 1050A | O | 20-32 | 0.8-2.0 | 5-15 | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |||||
| Series 3 | 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 | |||
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |||||
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |||||
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 | |||||
1050
| Model Name | Model Number | Outside Diameter /mm | Wall Thickness/mm | Maximum Length/m | Length/mm | Tensile Strength /MPa | Non-proportional Elongation Strength /MPa | Elongation After Break A50/mm |
| Main Size | Series 1 | 20-32 | 0.8-2.0 | 5000-15000 | ||||
| Series 3 | ||||||||
| Example | 1050 | 35 | 1.8 | 18 | 9000 | 100~135 | ≥80 | ≥5.00 |
| 21 | 1.0 | 7000 | ||||||
| 31 | 1.5 | 6000 | ||||||
| 32 | 1.9 | 8000 |
Applications:
power plant water cooling tower
surface condenser
large heat exchange equipment
condensator
evaporimeter
etc.
Support and Services:
The technical support and services for Air-conditioner and refrigerator tubes include:
- Provide timely and accurate advice on product installation and maintenance
- Provide technical support and solutions for repair and maintenance
- Provide after-sales service and maintenance for all products
- Provide professional advice and timely response to customer inquiries
- Provide product training and technical advisory services
FAQ:
Q1: What kind of material alloy is the product?
A1: At present, it can produce 1 series industrial aluminum alloy, 3003 and 3103 aluminum manganese alloy, and 6 series aluminum alloy.
Q2: What state and performance of the aluminum pipe can be produced?
A2: can produce from hard state to soft state and interval performance products
Q3: Can I customize the product specifications and requirements?
A3: Different materials and products with different requirements can be customized according to the requirements
Q 4: What is the minimum starting order volume?
A 4: The minimum order volume is 3 tons.
