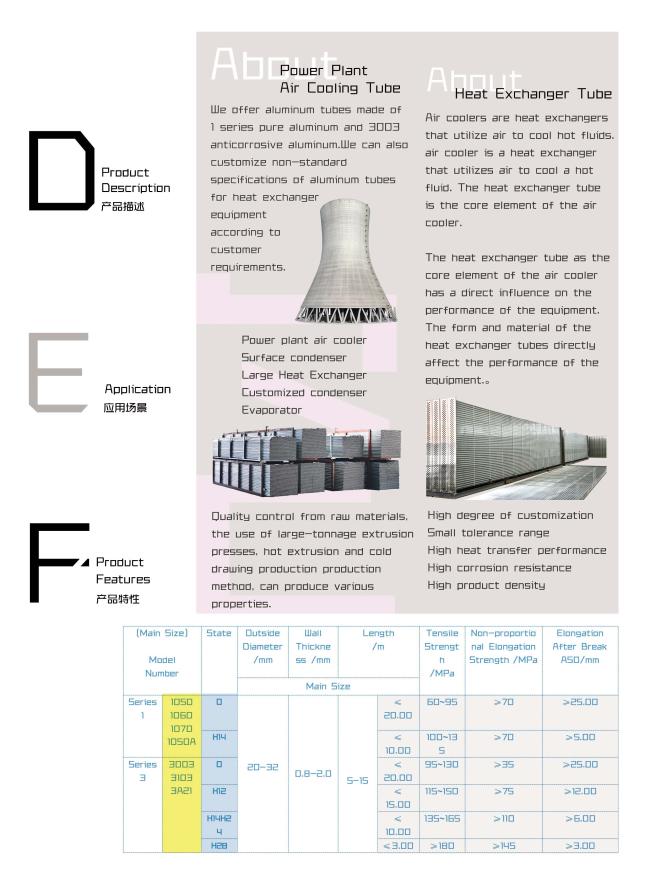

Power Plant Water Cooling Tower Precision Aluminum Tube 1060 D31
Power Plant Water Cooling Tower Precision Aluminum Tube Aluminum Tube 1050A D31
About the alloy material
1060 Pure Aluminum
1060 aluminum plate is mainly composed of pure aluminum, its purity can be up to 99.00% or more, does not contain other technical elements.
1060 is formed by adding a small amount of copper to pure aluminum, which has excellent forming and processing characteristics, high corrosion resistance, good weldability and electrical conductivity.1060 is widely used in products that do not require high strength, such as chemical instruments, thin plate processing parts, deep-drawing or spinning concave utensils, welded parts, heat exchangers, clock surfaces and plates, nameplates, kitchen utensils, decorations, reflective appliances and so on.
Mechanical properties
Tensile strength: σb (MPa)≥75
Conditional yield strength(MPa) ≥35
Technical Parameters
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1070 | 22 | 0.8 | 18 | 5635 |
100~135
|
≥80 | ≥5.00 |
| 26 | 1.0 | 6000 | ||||||
| 29 | 1.5 | 7000 | ||||||
| 32 | 1.8 | 9000 |
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Tubes of Power Plant Water Cooling Tower.
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
