Customized 3003 Grooved Aluminum Tubing Heat Transfer Arear 7mm
3003 Aluminum Grooved Aluminum Tubing Heat Transfer Arear 7mm
Features:
As international copper prices continue to rise, and the instability of prices. Aluminum instead of copper seems to be a more economical option.
Technical Parameters:

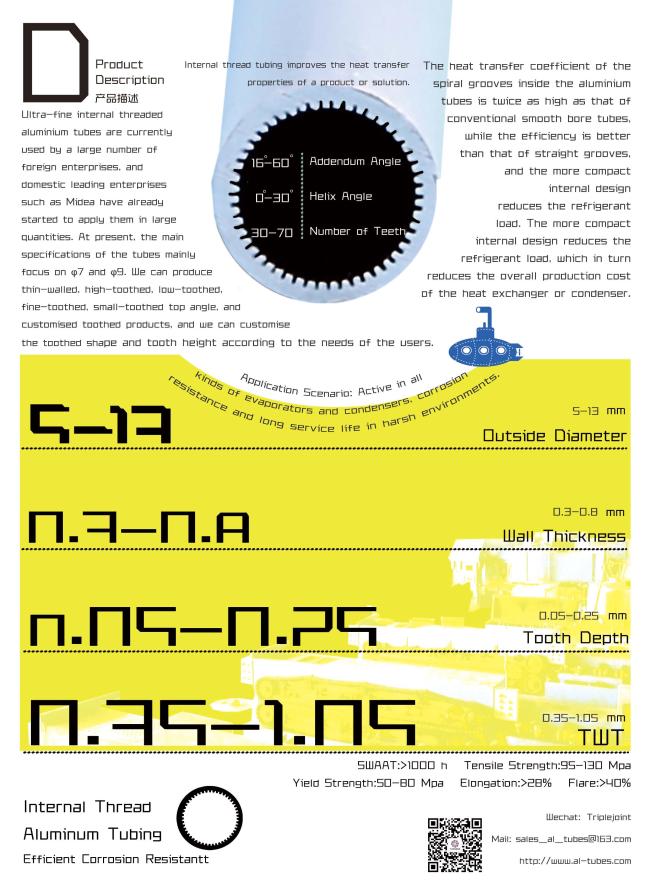

Internal Thread Aluminum Tubing
| Product Name |
Model Number (Material) |
State | SWAAT＞1000 h Tensile Strength 95-130 Mpa Yield Strength 50-80 Mpa Elongation≥32% Flare>40% | |||||||
| Outside Diameter/mm | Thickness/mm | Tooth Depth/mm | TWT/mm | Addendum Angle/(°) | Helix Angle/(°) | Number of Teeth | Shipping Methods | |||
| for example | 3003 | O | 5-13 | 0.3-0.8 | 0.05-0.25 | 0.35-1.05 | 16-60 | 0-30 | 30-70 | Coil |
| needs | ||||||||||
The delivery method is coil or according to customer's requirements.
Technical requirements refer to national standards or customer technical quality requirements for production.
Applications:
condensator
evaporimeter
air conditioner external unit
Small heat exchanger
frigistor
packaged air conditioner
Dry wet machine
etc.
