High Strength Round Aluminum Tube Flat Plate Solar Collector 3003 H12
High Tensile Aluminium Tube Flat Plate Solar Collector Calandria 3003 H12
Product Description:

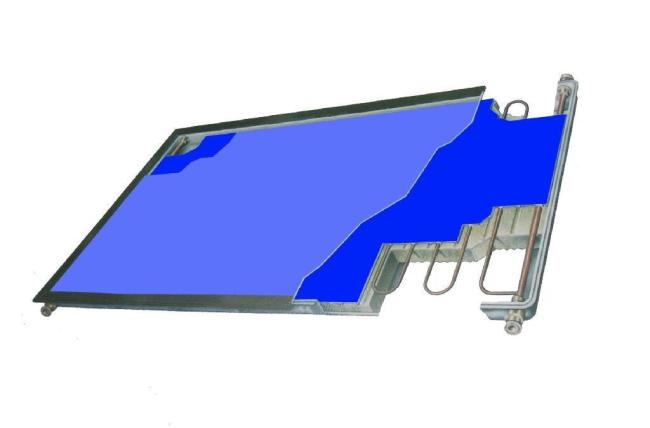

Tube-plate heat-absorbing plate
The flat plate solar collector tube-plate heat-absorbing plate is created by welding the upper and lower collector tubes together to make the heat-absorbing plate, and then connecting the row of tubes with the flat plate in a certain manner to create heat-absorbing strips. This is the more widely employed kind of heat-absorbing plate structure both domestically and internationally.
Deformation of aluminum and aluminum alloys according to the specific requirements of the different processing methods are different, the main processing methods include hot processing, cold processing, solution heat treatment, aging treatment, annealing treatment and other ways. According to the different processing methods can be summarized as follows for the state of aluminum processing products:
H hardening state:
It is suitable for products whose strength is improved by work-hardening, and the products may or may not be subjected to additional heat treatment after work-hardening to reduce the strength.
The first digit after H indicates the method of work-hardening treatment.
H12:Work hardening to 25% hardness
Applications:
Flat-panel solar energy collector
solar collector
heat exchanger
Solar tube
Vacuum solar tube
Wall-mounted flat plate collector
Large solar energy collector
Technical Parameters:
Aluminum Alloy Calandria
| Product Name |
Model Number (Material) |
State | Salt Spray Corrosion Test >1500 hours Pressure Resistance ＞15 Mpa | ||||||
| Outside Diameter/mm | Thickness/mm | Tensile Strength/Mpa | Yield Strength /Mpa | Elongation | Length/mm | Shape | |||
|
Main Size Example |
3003 | H14 | 7-30 | 0.7-2.0 | 130-165 | ≥110 | ≥5% |
Customized
|
Coil |
| H12 | 115-150 | ≥75 | ＞12% | ||||||
| O | 95-130 | ＞60 | ≥30% | ||||||
| Calandria |
H14, H12, O |
10 |
0.8-1.2
|
Customized | |||||
| 8 | |||||||||
| 12 | |||||||||
| Can customize the production of a variety of specifications of the collector tubes. | |||||||||
