3003 H14 Silver Aluminum Alloy Tubes For High Precision Machinery And Equipment
3003 H14 Silver Aluminum Alloy Tubes For High Precision Machinery And Equipment
3003H14 aluminum wire is made of advanced technology and advanced production process, and it has the excellent characteristics of 3003 aluminum alloy. Outstanding plasticity, excellent corrosion resistance and excellent welding performance are its outstanding features. Among them, H14 marks the completion of a proper hardening treatment of the product, not only to ensure performance characteristics, but also enhance the strength and stability.
This high quality aluminum wire material, the external diameter reached a suitable 8 mm, the internal thickness is only fine 0.24 mm. This unique craftsmanship, no doubt the accuracy of the product to a new level, making it possible to adapt to all kinds of sophisticated applications. In a variety of environments can show superior performance, whether in highly sophisticated machinery and equipment, or in the stable operation of automated production lines, our 3003H14 aluminum wire with excellent performance and stability, win the public's trust and praise.
The corrosion resistance and flexibility of 3003H14 aluminum wire can be applied to various aluminum pipe processing technology, greatly improving its practicability. After stretching, bending, stamping and other operations, it can still maintain excellent flexibility, thus further improving the production quality and performance of aluminum alloy circular pipe.
We produce 3003H14 aluminum wire, with excellent plasticity and corrosion resistance, as well as excellent welding performance. After hardening treatment, with outstanding strength and stability, with high accuracy of the size control, showing extraordinary quality. This type of wire rod in the refined processing and high-performance demand in the field is the leader, widely welcomed and award-winning. Therefore, as the leader of aluminum industry, we are very proud.
Features:
Please pay attention to our 3003H14 aluminum wire, it is our company carefully developed and carved out of the masterpiece, strong performance in many industrial fields have been widely used. The chemical property of physics has allowed it to excel in a number of fields. We often use this product to make all kinds of containers, heat exchangers and chemical treatment equipment and so on. What's more, our 3003H14 aluminum wire is often used to make various welding parts due to its excellent welding performance. When you choose our 3003H14 aluminum wire, you will enjoy these advantages: first, excellent quality, we use advanced production technology and strict quality control methods, ensure that every product meets the most stringent standards. Second is durable, 3003H14 aluminum alloy characteristics of our aluminum wire extraordinary corrosion resistance and wear resistance, can be maintained in a variety of harsh conditions for a long time stable performance. In addition, the size is accurate, we use the precision machining equipment and rigorous size measurement methods to ensure that the size of each aluminum wire accurate to MM, to meet your special needs. Finally, it is widely used, 3003H14 aluminum wire with excellent physical, chemical and welding properties, widely used in all walks of life. No matter what industry you are engaged in, you can find 3003H14 aluminum wire figure. It is an all-purpose aluminum wire, can meet your many needs.
Production Process:
Coil pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-heat treatment-flaw detection -forming-inspection-finished product packaging
Stright pipe
Raw material procurement-inspection-cleaning-extrusion-coiling-straightening-flaw detection-fine cutting-cleaning-heat treatment-inspection-finished product packaging
Techical Parameters:

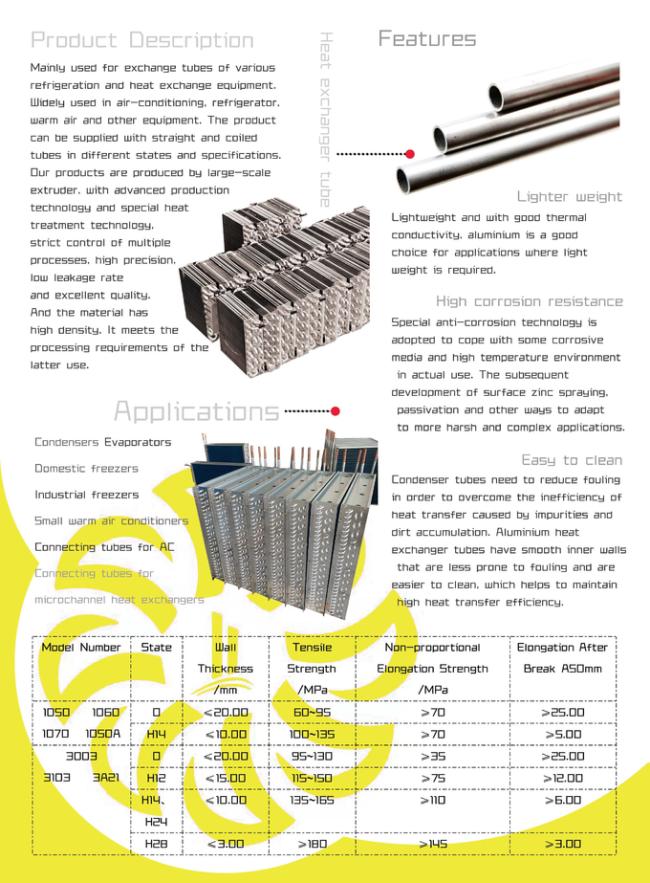

Heat Exchanger Aluminum Tube
The main production specifications are listed as follows:
| Model Number | State | Wall Thickness mm | Tensile Strength MPa | Non-proportional Elongation Strength MPa | Elongation After Break A50mm |
| 1050 1060 1070 1050A | O | ≤20.00 | 60~95 | ≥70 | ≥25.00 |
| H14 | ≤10.00 | 100~135 | ≥70 | ≥5.00 | |
| 3003 3103 3A21 | O | ≤20.00 | 95~130 | ≥35 | ≥25.00 |
| H12 | ≤15.00 | 115~150 | ≥75 | ≥12.00 | |
| H14,H24 | ≤10.00 | 135~165 | ≥110 | ≥6.00 | |
| H28 | ≤3.00 | ≥180 | ≥145 | ≥3.00 |
Specifications can be customized according to customer requirements.
Applications:
Condensator
Evaporimeter
Air-conditioning
Icebox
Home freezer
Industrial freezer
Cold storage with cold exhaust pipe
Small warm wind
Lipstick shell
Eyebrow pen shell
Air conditioning connection pipe
Car water tank connecting pipe
Car air-conditioning connection pipe
Microchannel heat exchanger connecting tube
etc.
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Alloy Tubes of Heat Exchanger.
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
