Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Corrosion Resistant Aluminium Round Tube for Power Stations 1050A H12 D25mm WT2.54mm
Product Description:

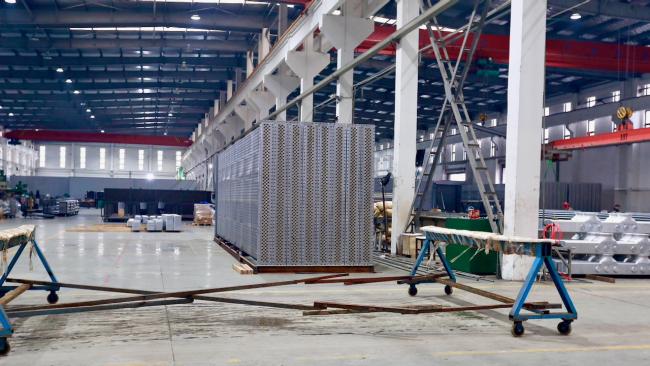

Large heat exchangers for big power plants are designed to release waste heat into the atmosphere so that the machinery that generates electricity may continue to operate.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Industrial pure aluminum has great plasticity, corrosion resistance, and strong electrical and thermal conductivity, but it has low strength, cannot be increased by heat treatment, and has poor cuttability; nonetheless, it can be welded. Gas welding.
Features:
Extruded Aluminum Tubes
It is weaker in strength and structure than seamless aluminum tubes, but it may be made at a lower cost because to its superior production efficiency and comparatively lesser manufacturing challenges.
In comparison to other comparable goods, processing flexibility and longitudinal (extrusion direction) mechanical characteristics are greatly improved.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
The properties of industrial pure aluminum include excellent plasticity, resistance to corrosion, strong electrical and thermal conductivity, but low strength; it cannot be reinforced by heat treatment and has poor cuttability. However, it may be welded by contact. gas welding.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 1050A |
|
3- Composition of alloy (%) Fe Mg Mn Ti Al Autres (others) |
0.40 0.05 0.05 0.05 99.50 0.05
|
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm |
Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
|
Main Size |
Series 1, Series 3 |
20-32 |
0.8-2.0 |
|
5000-15000 |
|
|
|
|
Example |
1050A |
28 |
1.0 |
18 |
7969 |
100~135
|
≥80 |
≥5.00 |
|
25 |
0.9 |
6959 |
||||||
|
23 |
1.5 |
9365 |
||||||
|
32 |
1.3 |
12266 |
H12 -- tensile strength value corresponds to the intermediate value between the annealed state O and the 1/2 hard state, called the 1/4 hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
