3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D6mm WT0.8mm
3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D6mm WT0.8mm
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
Extruded aluminum tubes are characterized by low cost, high corrosion resistance, non-destructive testing, zero wound point and easy installation.
Good corrosion resistance, weldability, thermal conductivity, light weight.
Customizable length, non-destructive flaw detection, zero wound point, multi-layer packaging, transportation safety length customized as you wish, efficient protection Insulation of oxidation.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
Mechanical properties:
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |

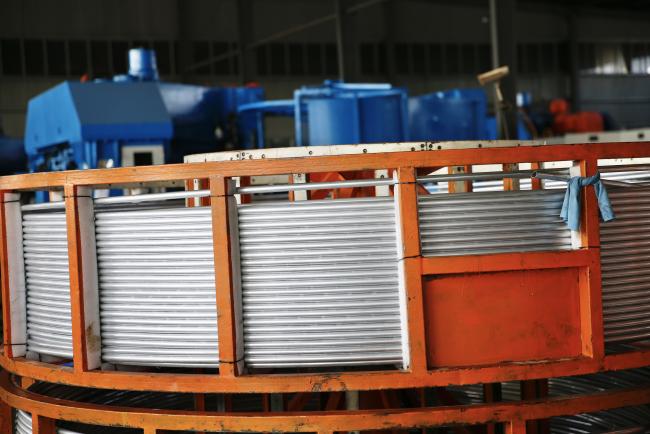

Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||
O——Annealing
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
FAQ:
http://mao.ecer.com/test/al-tubes.com/cases/faq-15908.html
We can provide technical support and services for using aluminum pipes, such as technical consultation and production assistance. Our expert specialists can help you with any issues that your product may encounter. We also provide frequent after-sales service to ensure that your items are constantly operating at peak efficiency. We are proud of our work and endeavor to give excellent client service.
If you have any queries or complaints about the product or how you utilize it, please contact us. We will always provide you the answers you seek.
