3003 O Corrosion Resistant Aluminium Round Tube For Power Stations D20mm WT2mm
3003 O Corrosion Resistant Aluminium Round Tube for Power Stations D20mm WT2mm
Product Description:

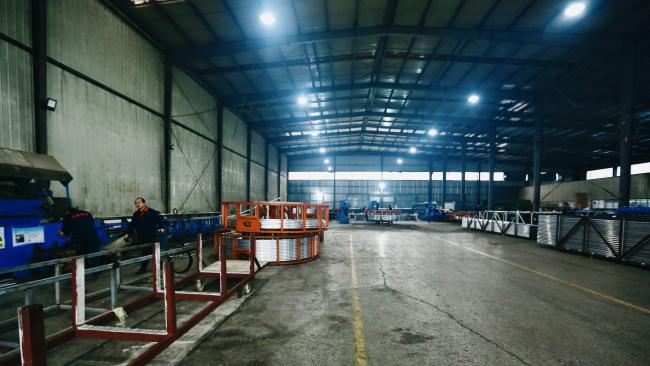

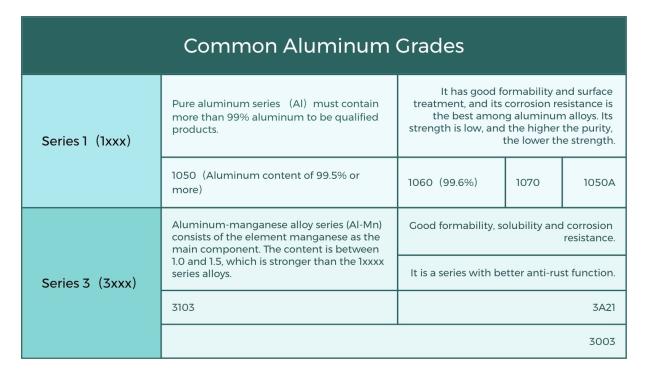

The company has hot extrusion, composite molding, coil drawing, joint drawing, heat treatment, straightening and cutting, flaw detection and rewinding and other composite molding process production lines. According to the actual requirements of customized precision aluminum tubes, at present the main products of raw materials for the 1-series and 3-series aluminum.
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Features:
Extruded aluminum tubes are known for their low cost, superior corrosion resistance, non-destructive testing, zero winding points, and ease of installation.
Excellent corrosion resistance, weldability, thermal conductivity, and light weight.
Customizable length, non-destructive fault detection, zero wound point, multi-layer packaging, transportation safety length adjusted to your specifications, efficient protection Insulation from oxidation.
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 3003 |
|
3- Composition of alloy (%) Si Fe Cu Mn Zn Autres (others) |
0.60 0.70 0.05-0.20 1.0-1.5 0.10
|
Mechanical properties:
| Model Number | State | Tensile Strength /MPa | Yield Strength/MPa | Elongation |
| 3003 | O | 95～130 | 50-80 | ≥32% |
|
Production Method
|
Model Number | State | Shape | Size and Tolerance | |||
| Specification(D) | Tolerance |
|
Tolerance | ||||
|
Extruded Aluminum Tubes
|
3003/3103 | O |
Coil or Straight Pipe |
D＜6 | ±0.05 |
δ≤0.60 |
±0.04 |
| φ6≤D≤10 | ±0.06 | δ≤0.8 | ±0.05 | ||||
| 0.8<δ≤1.5 | ±0.06 | ||||||
| φ10≤D≤20 | ±0.07 | 1<δ≤2 | ±0.08 | ||||
| T5 | Straight Pipe | D≤25 | ±0.15 | 1<δ≤3 | ±0.1 | ||
| Φ25＜D≤50 | ±0.2 | ±0.15 | |||||
| Φ50＜D≤80 | ±0.25 | ||||||

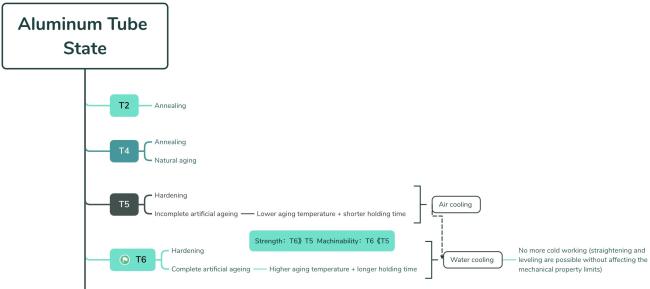

O——Annealing
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
