1050a Aluminum Coil Tubing for Peak Coolers and Surface Condensers
http://mao.ecer.com/test/al-tubes.com/cases/power-plant-air-cooling-tube-product-pamphlet-15462.html
Applications:
Large peak cooler
surface condenser
Large heat exchange equipment
condensator
evaporimeter
etc.
Technical Parameters:
Industrial pure aluminum are characterized by high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength, can not be strengthened by heat treatment, cuttability is not good; can accept contact welding . Gas welding.
| 1- Appearance | Aluminium tubes without defect, without blow on its surface, without scratches, without pollution like grease or oil. |
| 2- Alloy Grade | 1050A |
|
3- Composition of alloy (%) Fe Mg Mn Ti Al Autres (others) |
0.40 0.05 0.05 0.05 99.50 0.05
|
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |

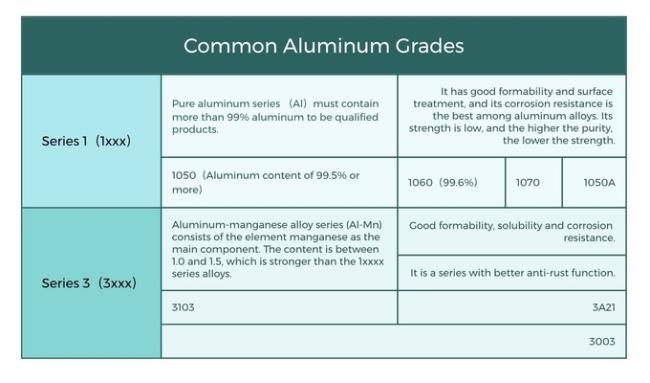

Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1050A | 28 | 1.0 | 18 | 7969 |
100~135
|
≥80 | ≥5.00 |
| 25 | 0.9 | 6959 | ||||||
| 23 | 1.5 | 9365 | ||||||
| 32 | 1.3 | 12266 |
H14 -- tensile strength value corresponds to the intermediate value between the annealed state O and the 1/2 hard state, called the 1/2 hard state.
Main Product:
How to order:
You can then download a form from this website and fill it out with basic details.
Send it to the provided e-mail address, and our engineers will price you based on the technical specifications.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
Alternatively, you can download the Technical Data Requirements Sheet directly.
Yuneng Product Requirements Table.docx
