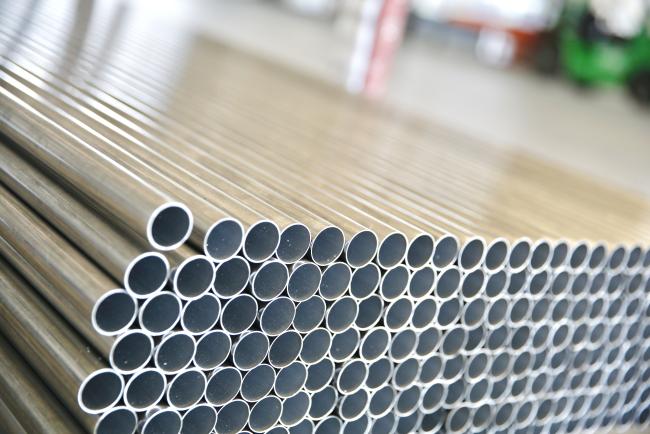

1070 D29 Precision Aluminium Round Tube Corrosion Resistant For Large Peak Cooler
Power Plant Water Cooling Tower Precision Aluminum Tube Aluminum Tube 1070 D29
About the alloy material
1070Pure Aluminum
Industrial pure aluminum has great plasticity, corrosion resistance, electrical conductivity, and thermal conductivity, but it has low strength, cannot be enhanced by heat treatment, has poor cutting properties, and can be welded with touch or gas. Increased use of its benefits in the production of various structural elements with special features, such as aluminum foil constructed of gaskets and capacitors, electronic tube isolation network, wires, cables, protective sheaths, nets, cores, aviation ventilation system parts, and ornamental parts.
Mechanical properties
Tensile strength: σb (MPa) ≥75
Conditional yield strength: σ0.2 (MPa) ≥ 35
Specimen size: all wall thickness
Technical Parameters
|
Model Name |
Model Number |
Outside Diameter /mm |
Wall Thickness/mm |
Maximum Length/m |
Length/mm | Tensile Strength /MPa |
Non- proportional Elongation Strength /MPa |
Elongation After Break A50/mm |
| Main Size |
Series 1, Series 3 |
20-32 | 0.8-2.0 | 5000-15000 | ||||
| Example | 1070 | 22 | 0.8 | 18 | 5635 |
100~135
|
≥80 | ≥5.00 |
| 26 | 1.0 | 6000 | ||||||
| 29 | 1.5 | 7000 | ||||||
| 32 | 1.8 | 9000 |
HOW TO ORDER
Firstly,here is a more detailed product description about Aluminum Tubes for Power Plant Water Cooling Tower.
You can then find a form at this link to download and fill out the basic information.
Send it to the specified e-mail address and our engineers will quote you according to the technical parameters.
http://mao.ecer.com/test/al-tubes.com/cases/how-to-order-15643.html
