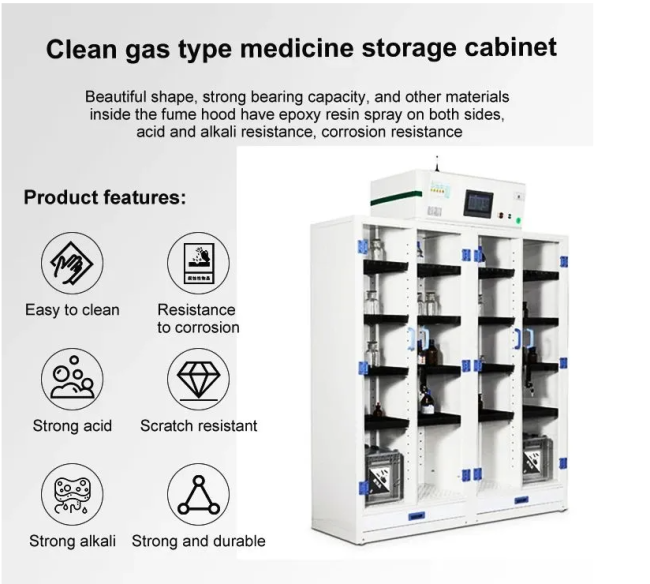

Top Quality Laboratory Storage Cabinets Filter Medicine Storage Cabinet Ductless Corrosion Resistant Coating Surface
Top Quality Laboratory Storage Cabinets Filter Medicine Storage Cabinet Ductless Corrosion Resistant Coating Surface
Filter Medicine Storage Cabinet specifications:
Metal parts: main material 1.2mm galvanized steel sheet, electrostatic spraying epoxy resin, coated with durable protective lead-free coating, high smoothness and reduce the possibility of corrosion and the effects of moisture.
Door panel: main material 6mm acrylic sheet, excellent weather resistance, excellent chemical resistance, anti-aging, colorless and transparent, surface light, visual comfort, elegant appearance.
Filter Medicine Storage Cabinet Layer Board: info 1.2mm galvanized steel, corrosion-resistant coating, resistance to acids and bases, height-adjustable.
Acid-base box: polypropylene PP material, storing strong acid strong alkali corrosion.
Seven-inch LCD touch-screen display, real-time temperature and humidity monitoring, fan control, VOC concentration in environmental monitoring and alarm systems.
The United States imported PLC fan, 24-volt current, stable performance, ultra-quiet, no spark of static electricity.
Efficient filtering system, listed according to their particle size distributions, adhere to the ASTM standard, effective for acid gases and organic gases adsorption capacity, particle filters, high efficiency HEPA filter, particles larger than 0.3um, filtration efficiency up to 99.995%.
LED lamp power 25W daylight lamp, does not produce heat, security does not affect experimental ambient temperature, energy saving, environmental protection and long service life.
Working Principles:
---The turbine motor draws the air from the outside of cabinet.
---The air brings the hazardous vapour into the filtration system.
---Choose a proper high efficient filter according to the chemicals.
---The hazardous air goes though molecular filter become fresh air.
Technical Parameters of Filter Medicine Storage Cabinet :
|
SUCLAB-800 |
External dimensions: 800*510*2170-2360mm Internal dimensions: 708*450*1750mm Layer:8 pcs Load:30kg Air capacity:220m³/h Capacity:160pcs(500ml) Volume:40 dBA Voltage:220V/50Hz Power:76W Current:3A |
Number of filters:4pcs Number of fans:1pcs Layer:8pcs Lighting:1 LED lamp LED:Seven-inch LCD touch screen Power cord:1PCS Control system:1SET Alarm system:1SET |
Layer Mobile pedestal Filter feed and alarm Acid-base box Filter
|
|
SUCLAB1600 |
External dimensions: 1600*510*2205-2395mm Internal dimensions: 1510*450*1750mm Layer:20 pcs Load:30kg Air capacity:220m³/h Capacity:320pcs(500ml) Volume:40 dBA Voltage:220V/50Hz Power:110W Current:3A |
Number of filters:8 pcs Number of fans:3 pcs Layer:20pcs Lighting:1 LED lamp LED:Seven-inch LCD touch screen Power cord:1PCS Control system:1SET Alarm system:1SET |
Layer Mobile pedestal Filter feed and alarm Acid-base box Filter
|
|
SUCLAB819 |
External dimensions: 819*354*725mm Internal dimensions: 753*322*519mm Layer:2 pcs Load:30kg Air capacity:75m³/h Capacity:48pcs(500ml) Volume:40 dBA Voltage:220V/50Hz Power:42W Current:3A |
Number of filters:1 pcs Number of fans:1 pcs Layer:2pcs Lighting:1 LED lamp LED:Seven-inch LCD touch screen Power cord:1PCS Control system:1SET Alarm system:1SET |
Layer Mobile pedestal Filter feed and alarm Acid-base box Filter
|
1.Liquid touch screen, real-time temperature and humidity environment monitoring, fan monitoring,
VOC concentration environment monitoring and integrated alarm system, and passed the explosion
-proof certification issued by the national authority;
2.Push-button switch, beautiful design, stable function, long service life;
3.Alarm device: trigger alarm when the environmental index in the cabinet exceeds the set value;
4.Efficient filtration system, according to particle size selection and distribution, in accordance with
ASTM standards, effective against acid gas and organic gas, strong adsorption capacity, for particles
using high efficiency HEPA filter, for particles greater than 0.3um, filtration efficiency of 99.995%;
5.Lock: zinc alloy rotary handle mechanical lock (with padlock);
6.Laminate: ABS one-time mold open tray laminate, acid and alkali resistant, adjustable height;
7.Universal wheel: easy to move, a single person can move the cabinet to the designated position,
saving time and effort.Filter Medicine Storage Cabinets Ductless Corrosion Resistant Coating Surface
