2018 iso pas 17712 2013 standard high security seal
2018 iso pas 17712:2013 standard high security seal
Our company has carved a niche in offering superlative quality High Security Bolt Seal. Only experienced engineered are engaged in designing High Security Bolt Seal in conformation with the specifications laid by the customers. It is fabricated with anti-spin construction on steel pin. The locking pin of our High Security Bolt Seal is free of plastic for easy recycle. Also, it consists of a separated bottle and pin. High Security Bolt Seal is used for locking container doors, truck doors, air cargos etc.
| 2019 cargo bullet truck bolt seal for Keeper Bars | |
Specification | 1.8mm diameter steel perch 2.The height of male and female is 85.6mm and 33.9mm separately 3.Pull tight locking mechanism 4.Removing with cable cutters 5.F>15KN 6.Operating Temperature: -40°c to 110°c / -40°F to 230°F
|
| Customization Options : | Printing thermal stamping or laser printing Company logo or name Sequential numbers Barcode is available (will need additional charges) |

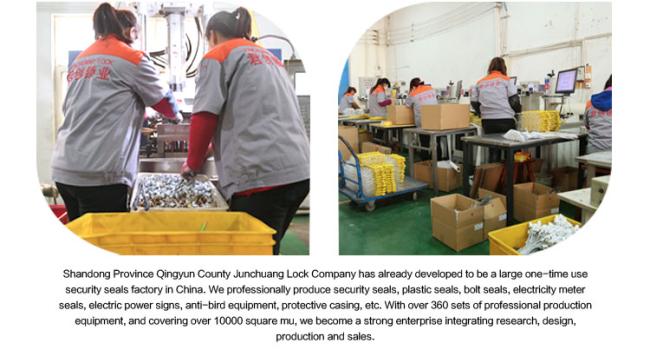

Shandong Province Qingyun County Junchuang Lock Industrial CO., LTD is a privately-held enterprise headquartered in Dezhou,Shandong China,Junchuang is one of the leading manufacturer and suppliers of tamper evident, tamper resistant, and high-security loss prevention seals and allied products to meet the growing needs of customers across a wide range of industries,our company products having ISO9001,ISO17712,CTPAT,etc,Now factory main product:container bolt seal,plastic seal,meter seal,cable seal,padlock seal,metal strip seal,etc,our all kinds of security seal Typical Uses:Cabinets, Cable Identification, Cash & Coin Bags, Cash Bags and ATM Units, Container Doors, Containers, Dairy and Milk Trucks, Drums and Barrels, Fiber Drums, Fire Doors, Fire Extinguishers, Inspection Tags, Liquid Bulk Trailers, Liquor Carts, Luggage and Totes, Mail Bags, Medical Cabinets, Money Bags, Tote, Boxes & Containers, Trailer Doors, Trailers and many other uses.
Cross Boarder Shipments
High Value Shipments
Trailer Door Latches
Container Door Latches
Installation Instructions
Insert the bolt in the latch hole.
Before locking:
Rotate the locking mechanism and bolt until the matching serial numbers are visible and aligned on the same side.
Align the square (or hexagonal) end of the bolt to fit into the square (hexagonal) hole in the lock. Loosely insert the bolt into the lock to assure proper alignment. Any misalignment will make it more difficult to lock.
Push the bolt into the locking mechanism until it snaps.
Pull on the bolt & lock to confirm the locking mechanism is fully engaged.
A bolt cutter is required to remove the bolt seal. Wear safety glasses when removing.
